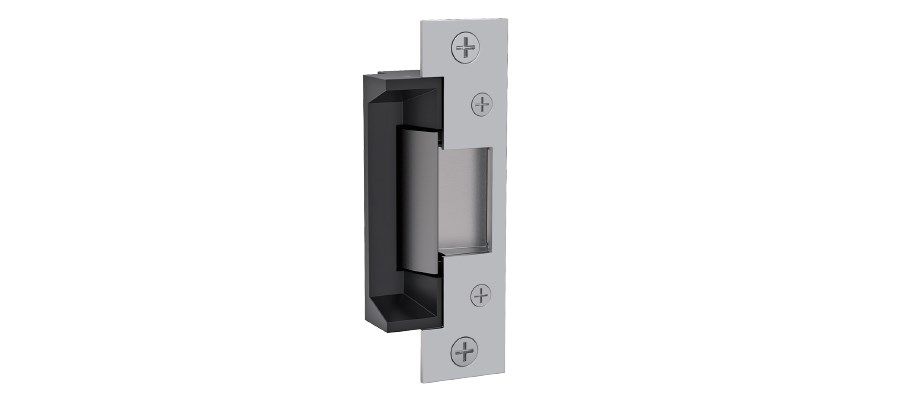

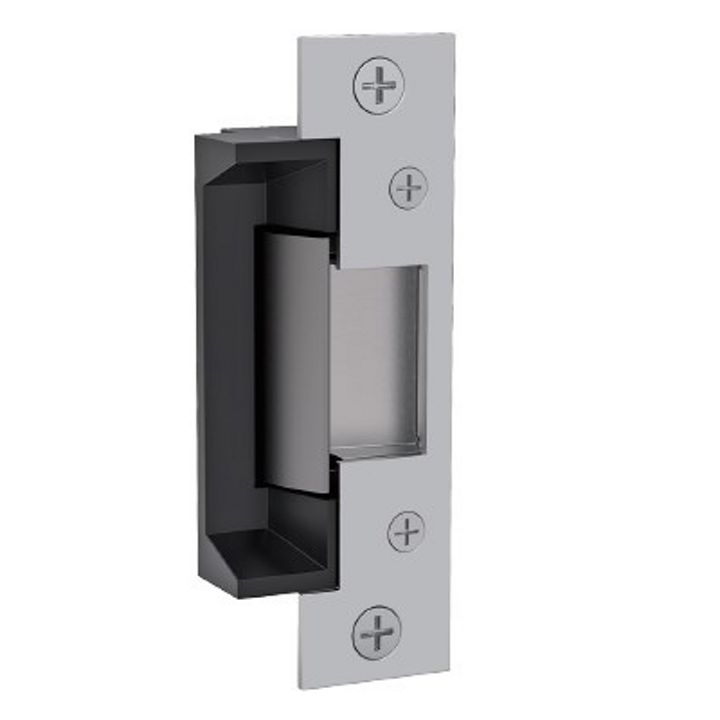

5000 Series

The grade 1 , low profile solution for latchbolt locks.

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

The 5000 Series is also available in a Complete One Box Solution:

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

Finishes

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black
    *Complete Pacs are only available in the 630 finish
