PED 200 + PED/GV

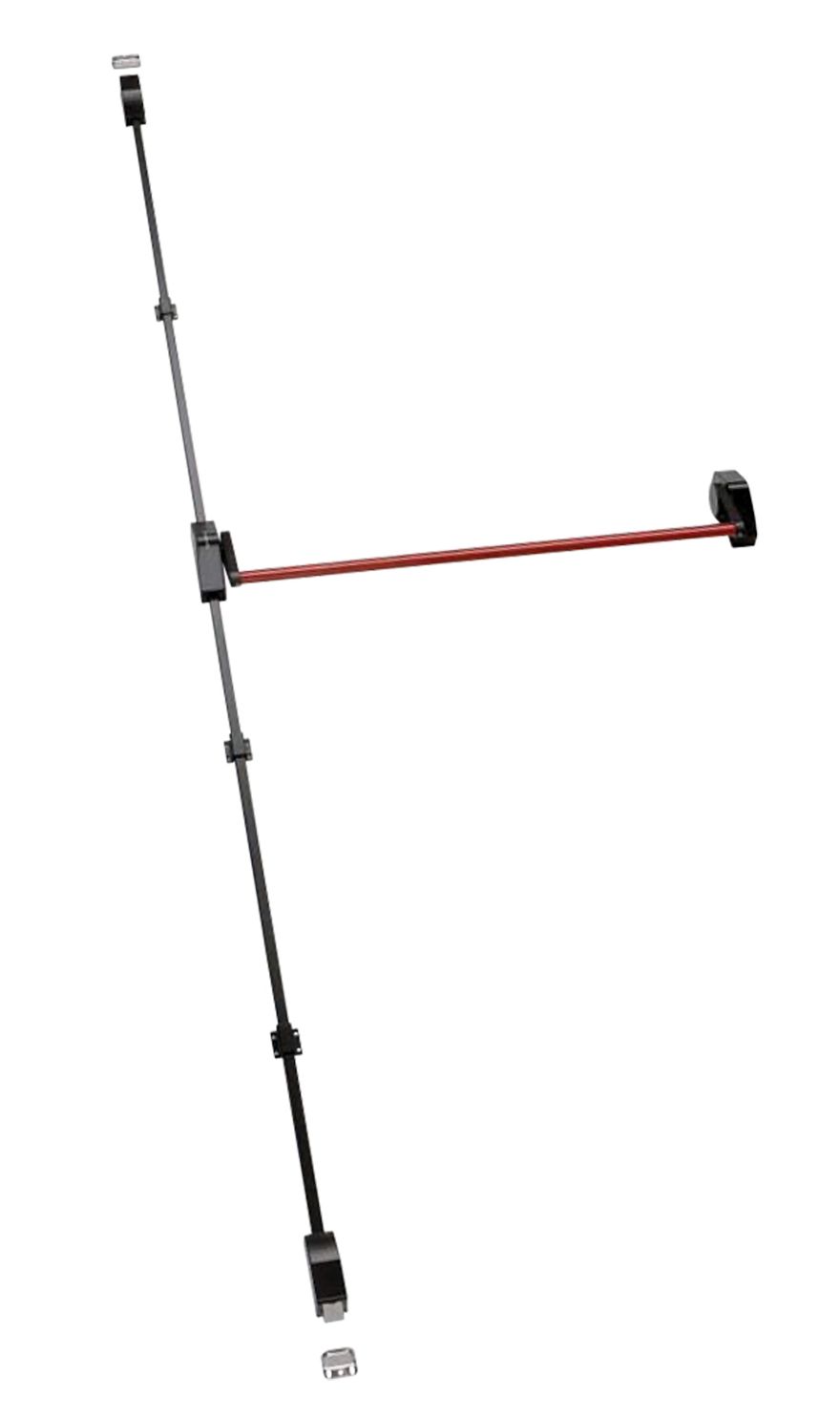

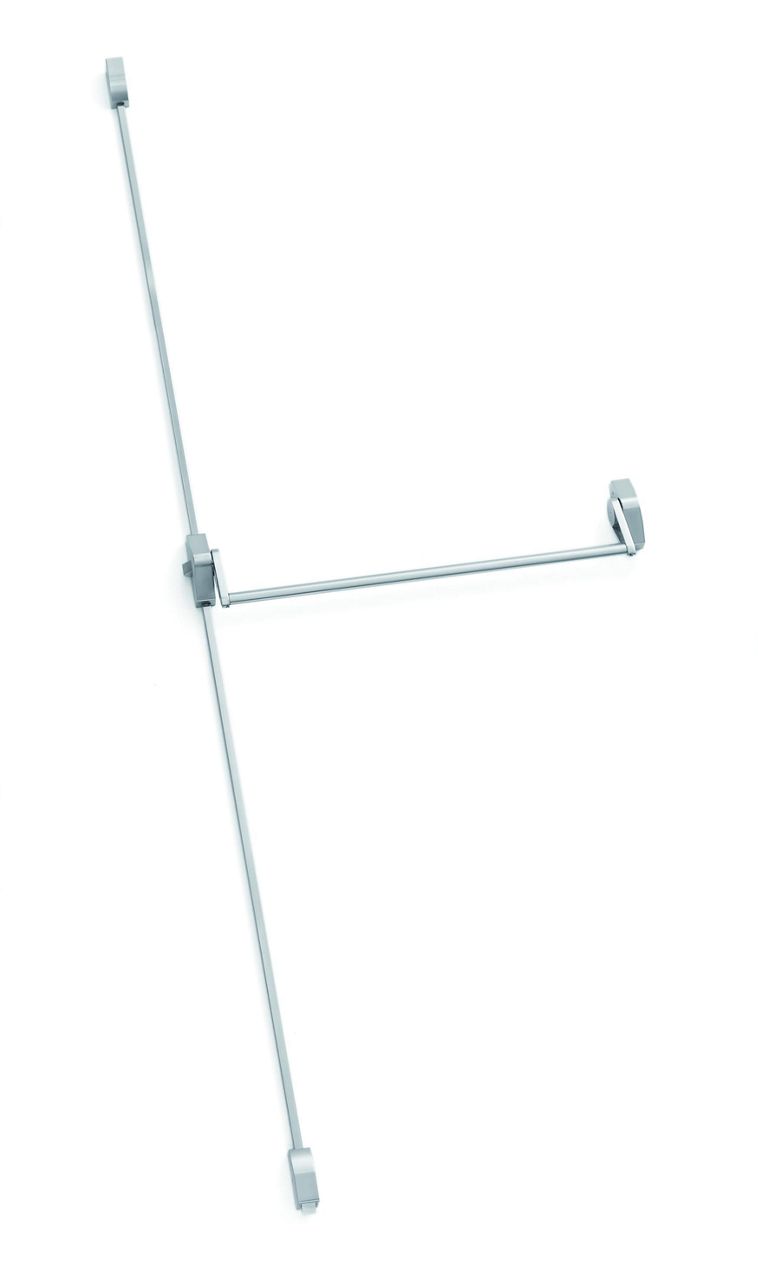

Panic Exit Device PED 200 + PED/GV Cross Bar – Vertical Device with Vertical Locking Points for Enhanced Door Security

Description:

Set of 2/3 locking points PED composed of Modular Cross Bar and kit for 2 vertical locking  points

Characteristics:

• Modular cross bar type
• For fire and smoke applications
• High durability 2,00,000 cycles
• One central locking point
• For one or double leaf door up to 200 kg
• For all types of door
• For doors up to 1200mm width in standard
• For doors up to 1400mm width in option
• Dead latch in standard
• Steel swing latch
• Zinc alloy or s/steel cover 38mm length
• Steel or s/steel bar 1075mm long
• Bar to be cut
• 97mm projection
• HO function in option
• Micro switch version in option
