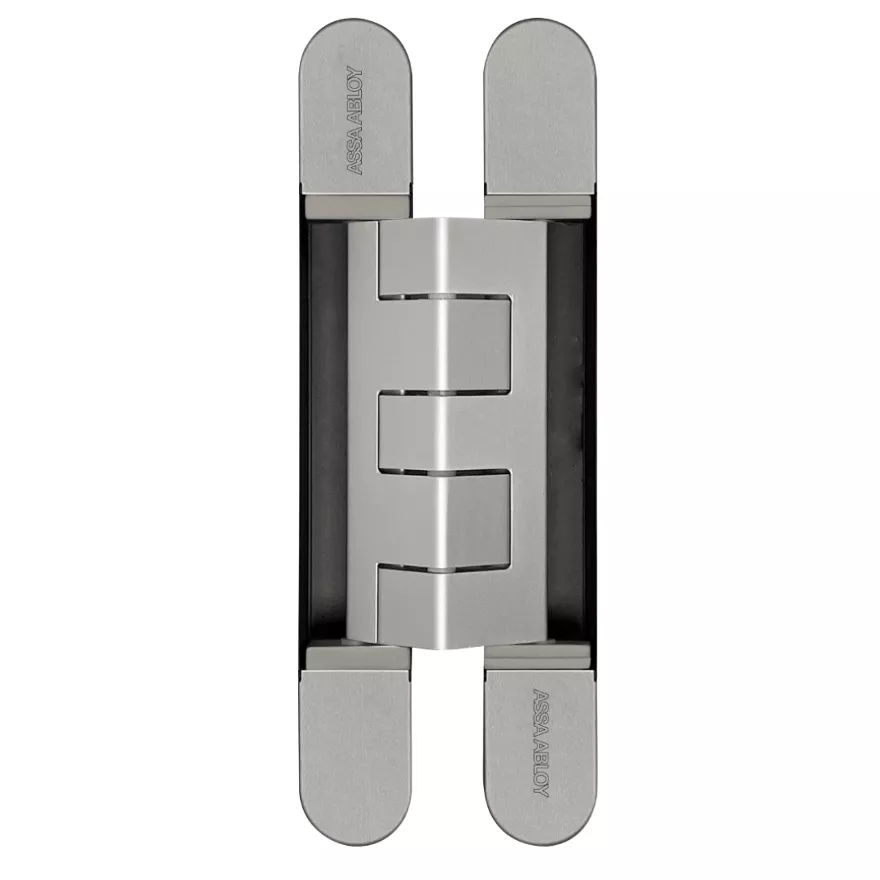

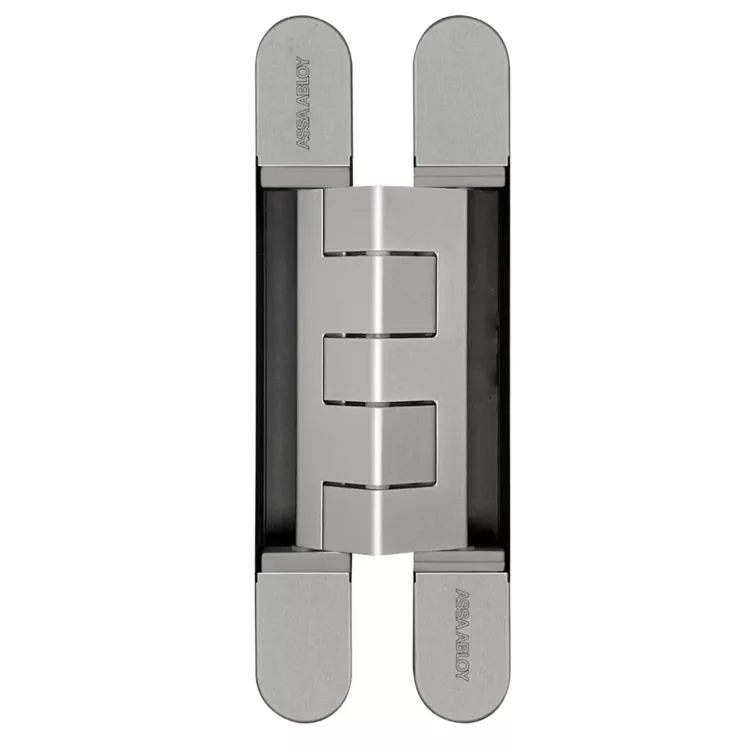

AAH805 Concealed Hinge

Invisible adjustable hinges for doors. Patented Model mm.230x30

AAH805 Concealed Hinge sets a new standard in door hardware with its superior craftsmanship, diverse finishes, and sleek design. Engineered with precision and built to last, it enhances both door aesthetics and the spaces they adorn.

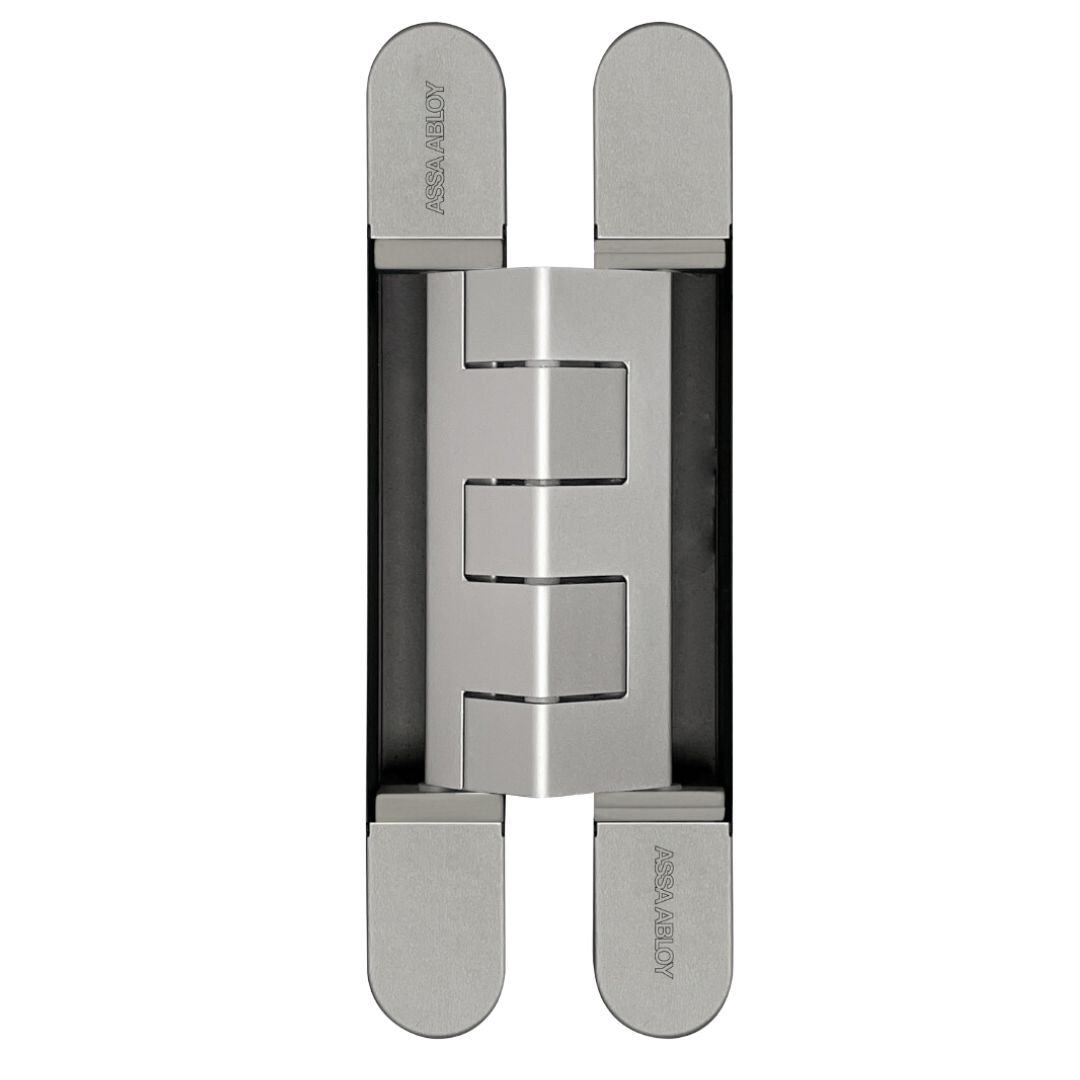

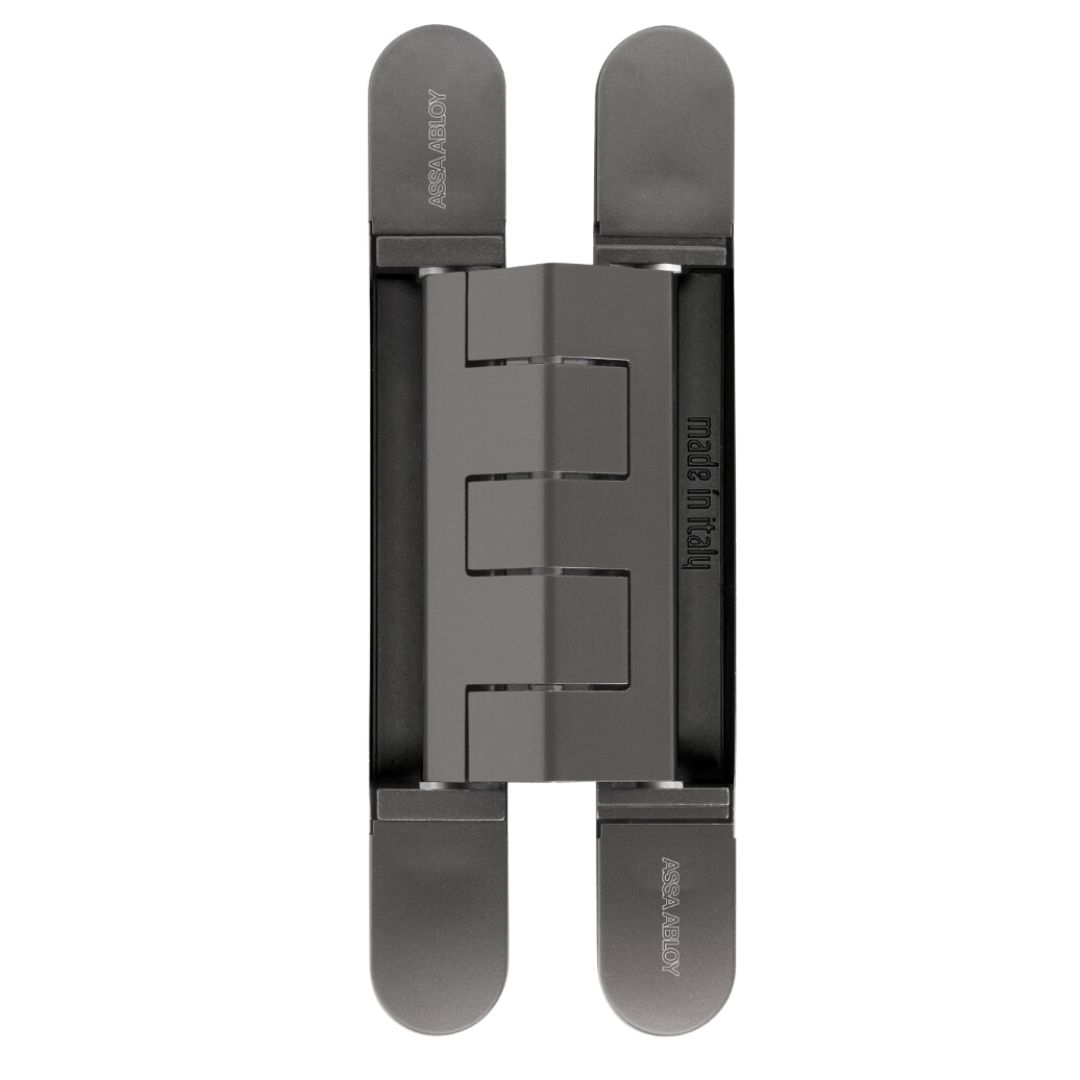

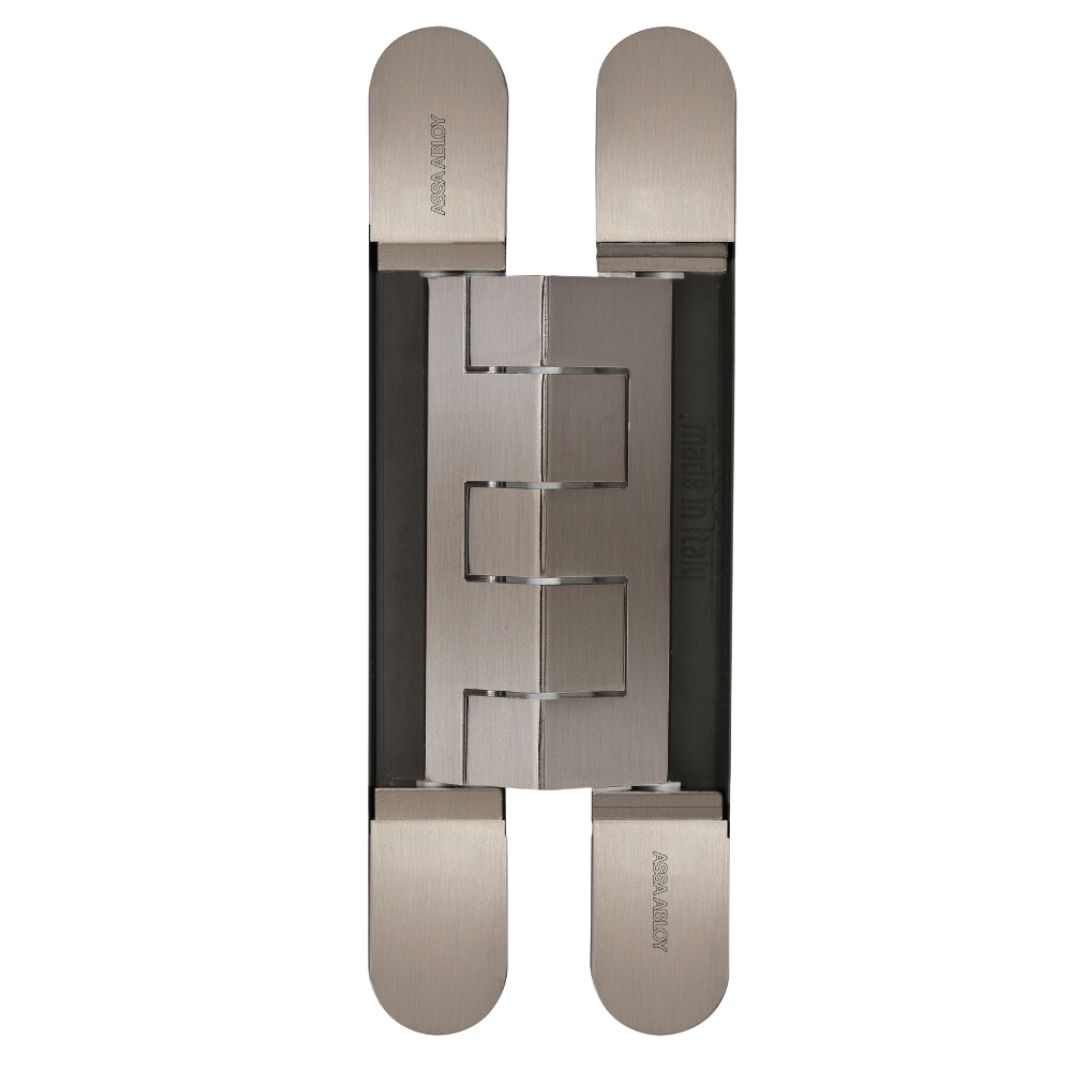

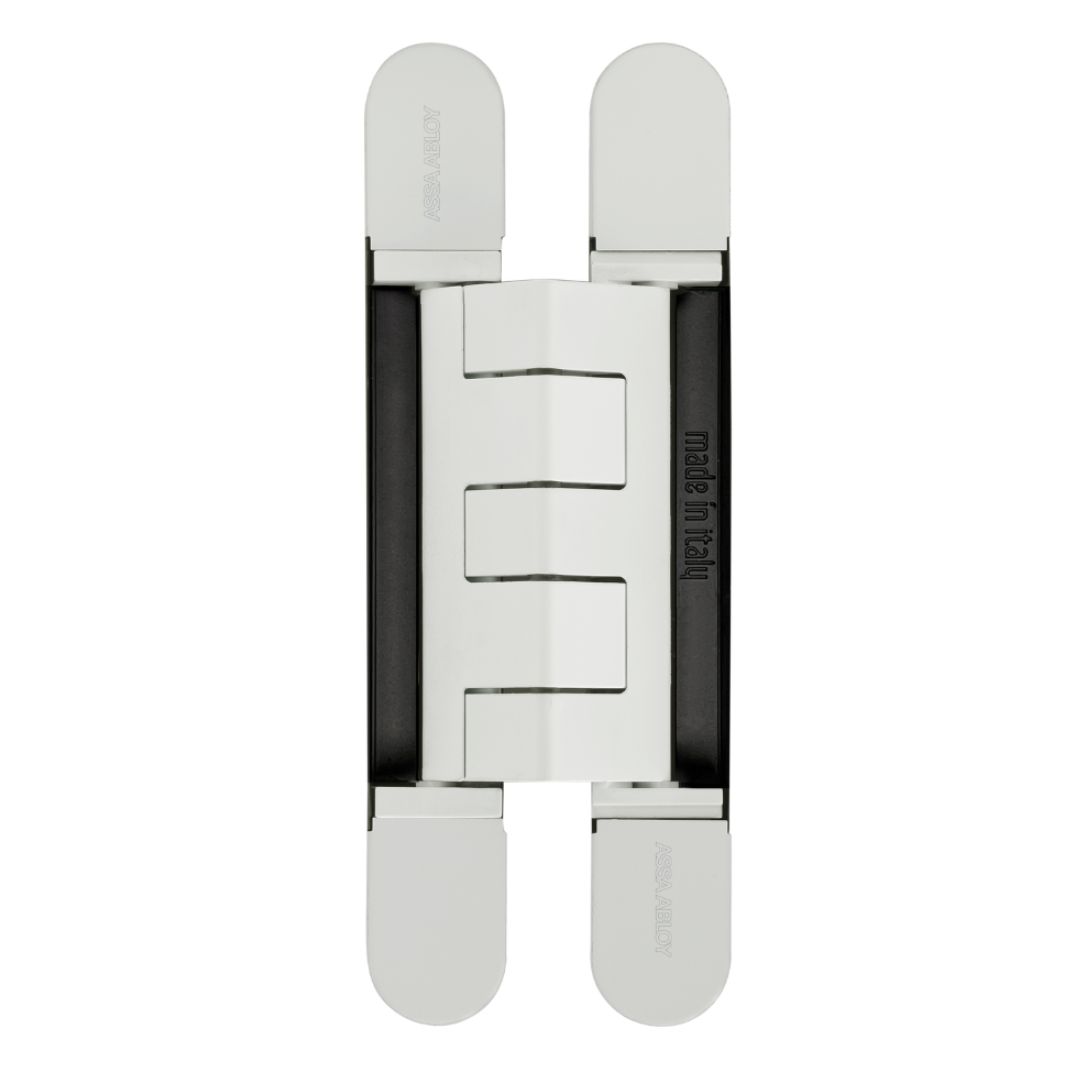

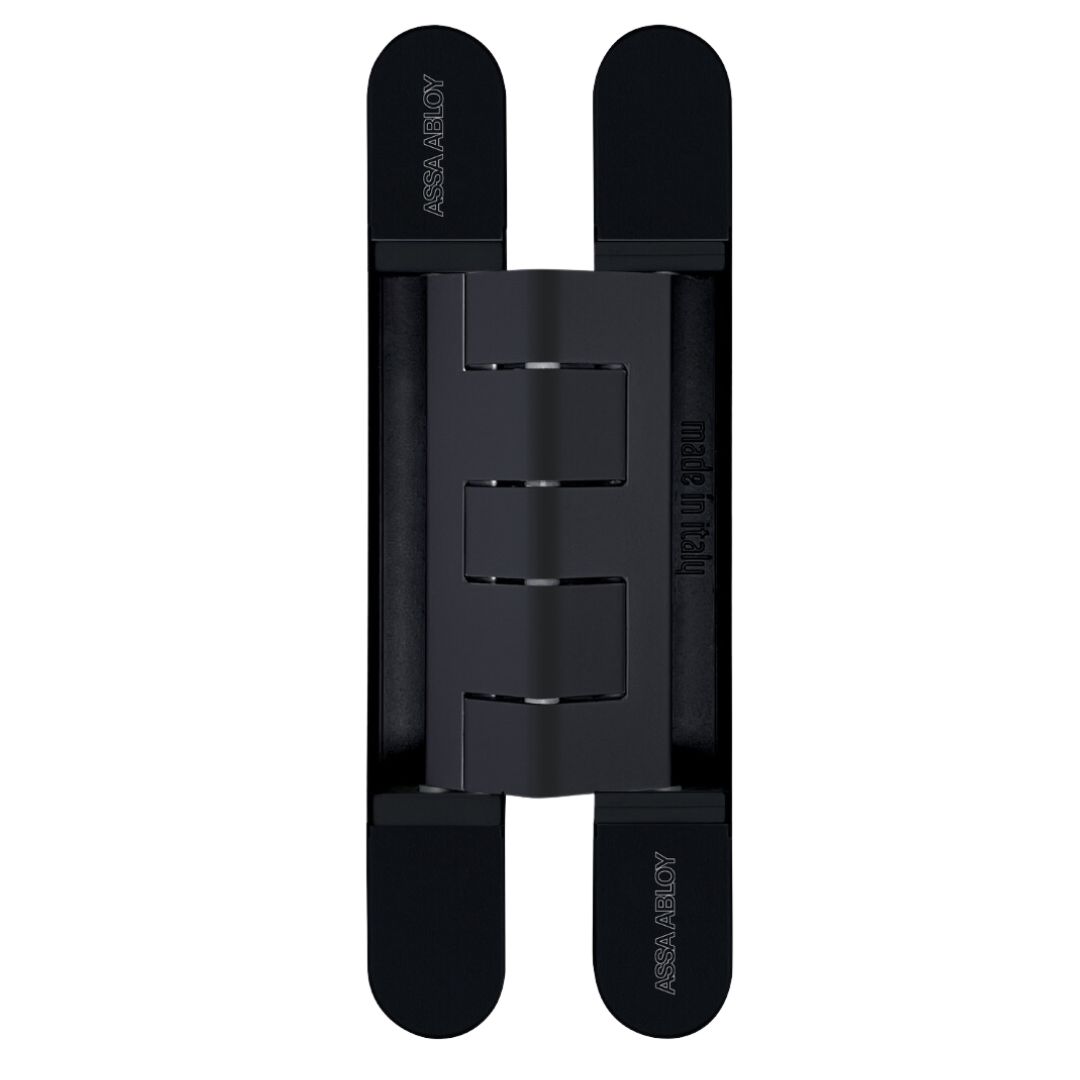

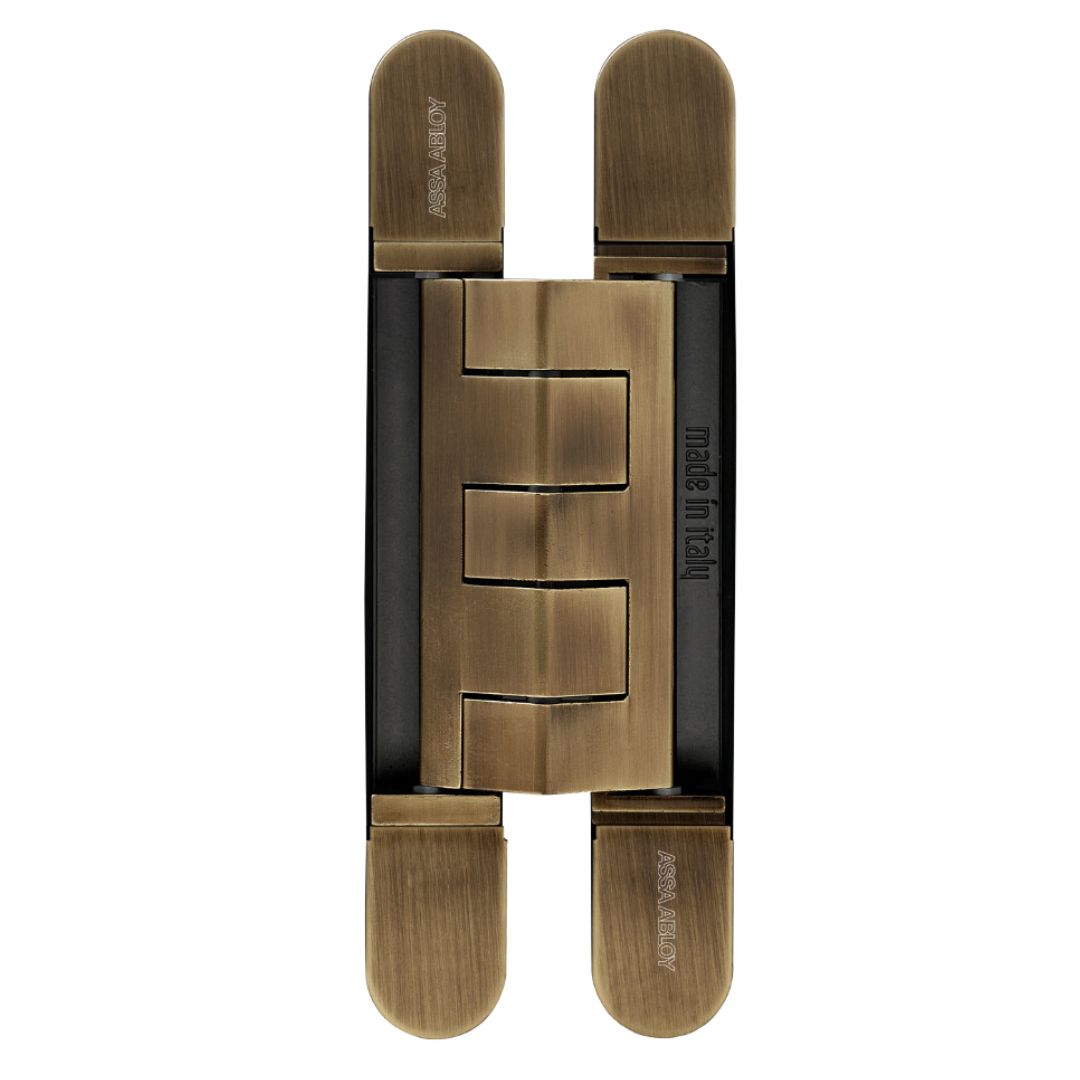

• Manufactured in zamak in 11 different finishes
• Suitable for doors of 38 mm min. thickness
• Total length 230 mm
• Depth 32 mm only
• 3D adjusting system

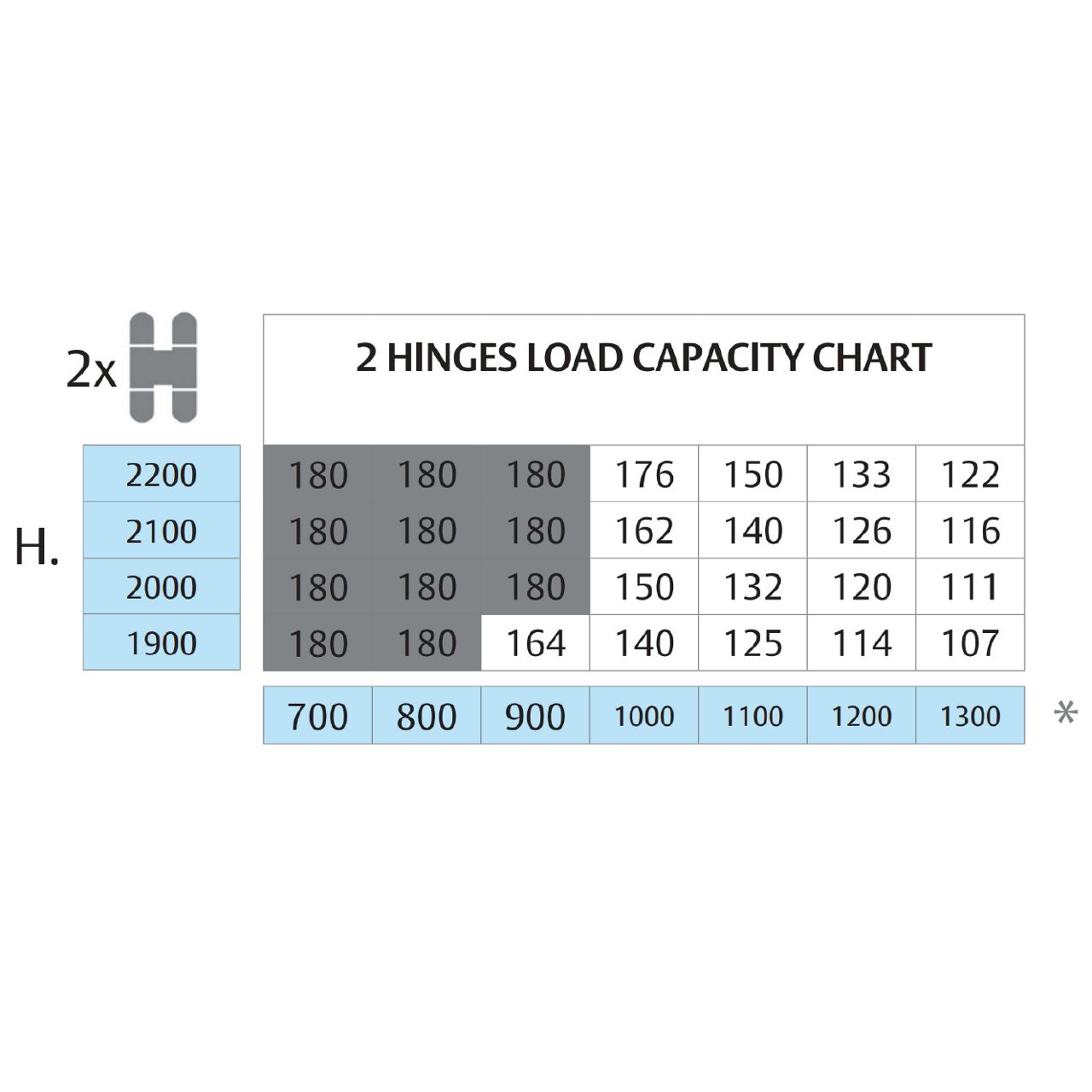

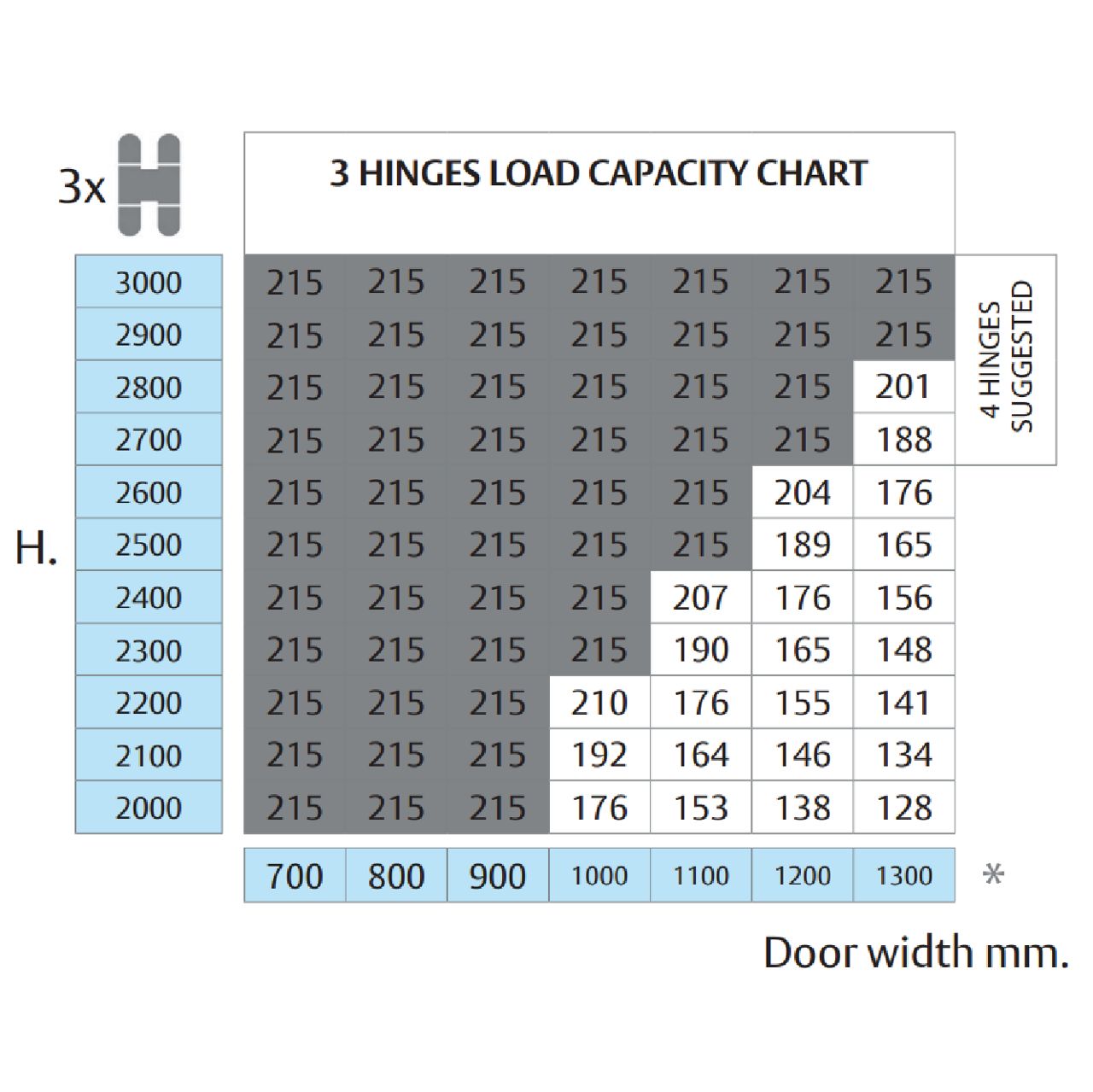

•  Load capacity up to 215 kg
• Easy installation and slot symmetry
• Enhanced design and performance: now more elegant and highly resistant to oxidation due to the new external casing in zinc-coated zamak. The upgraded joint ensures smoother movement, exceptional precision and long lasting durability—now certified for doors up to 1000 mm wide
