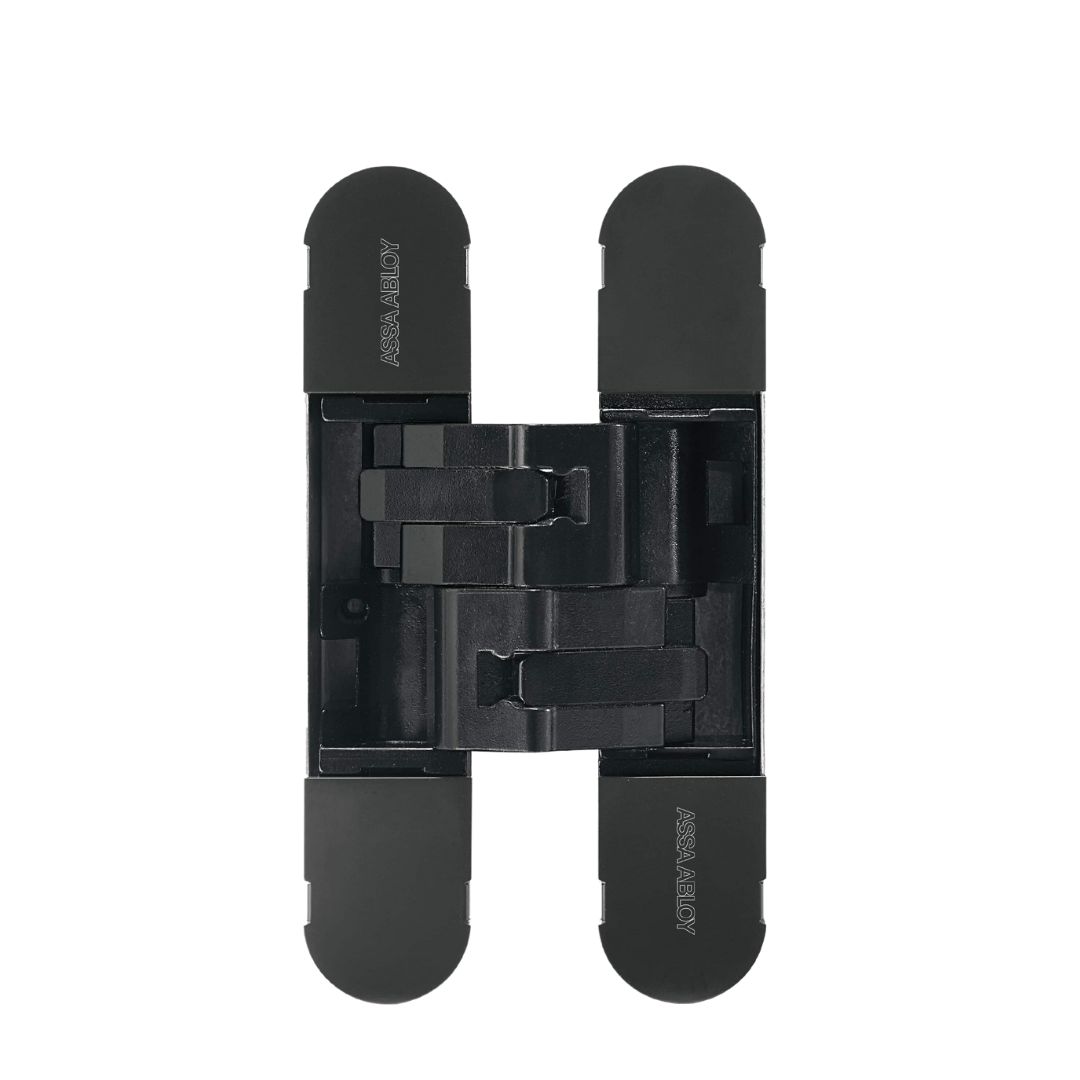

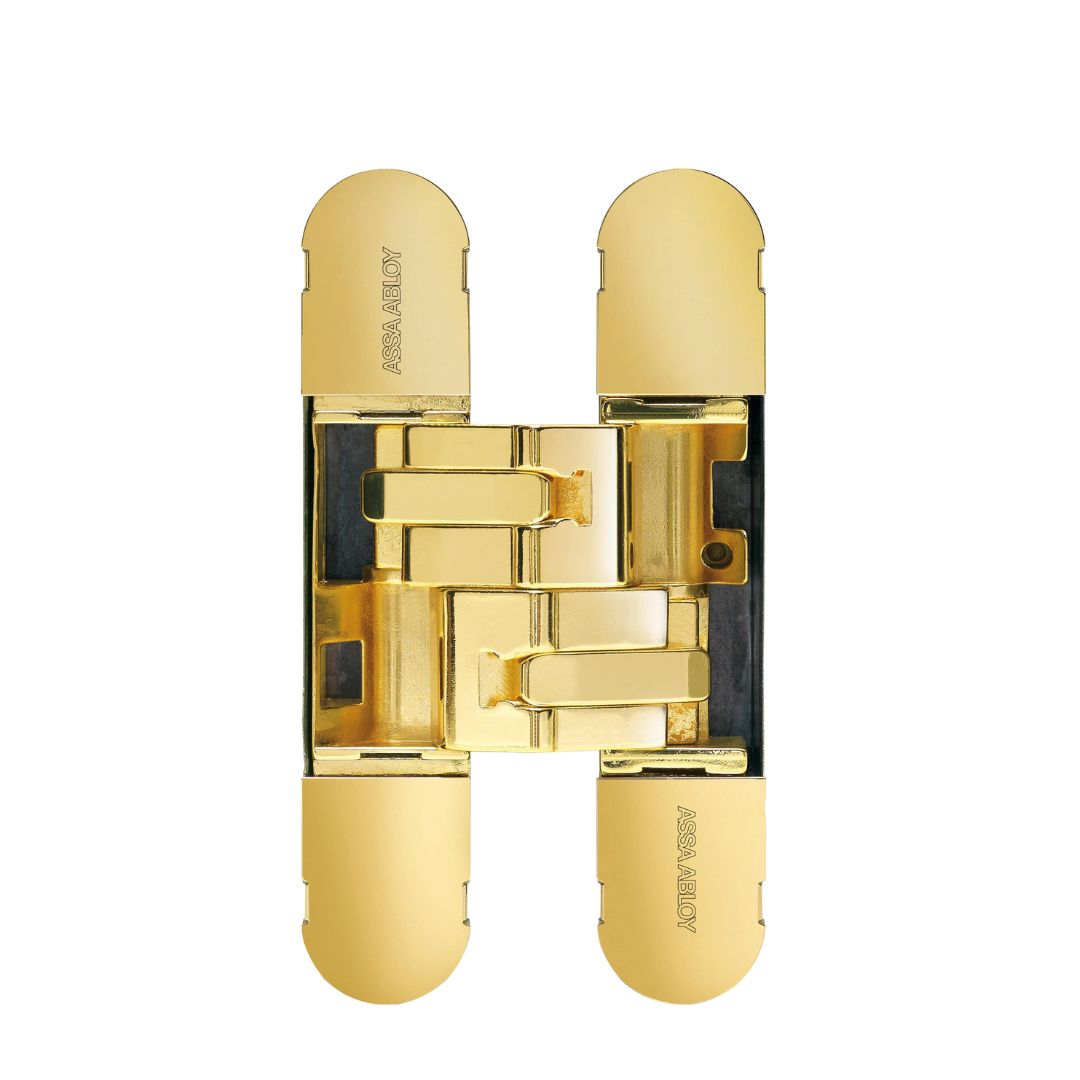

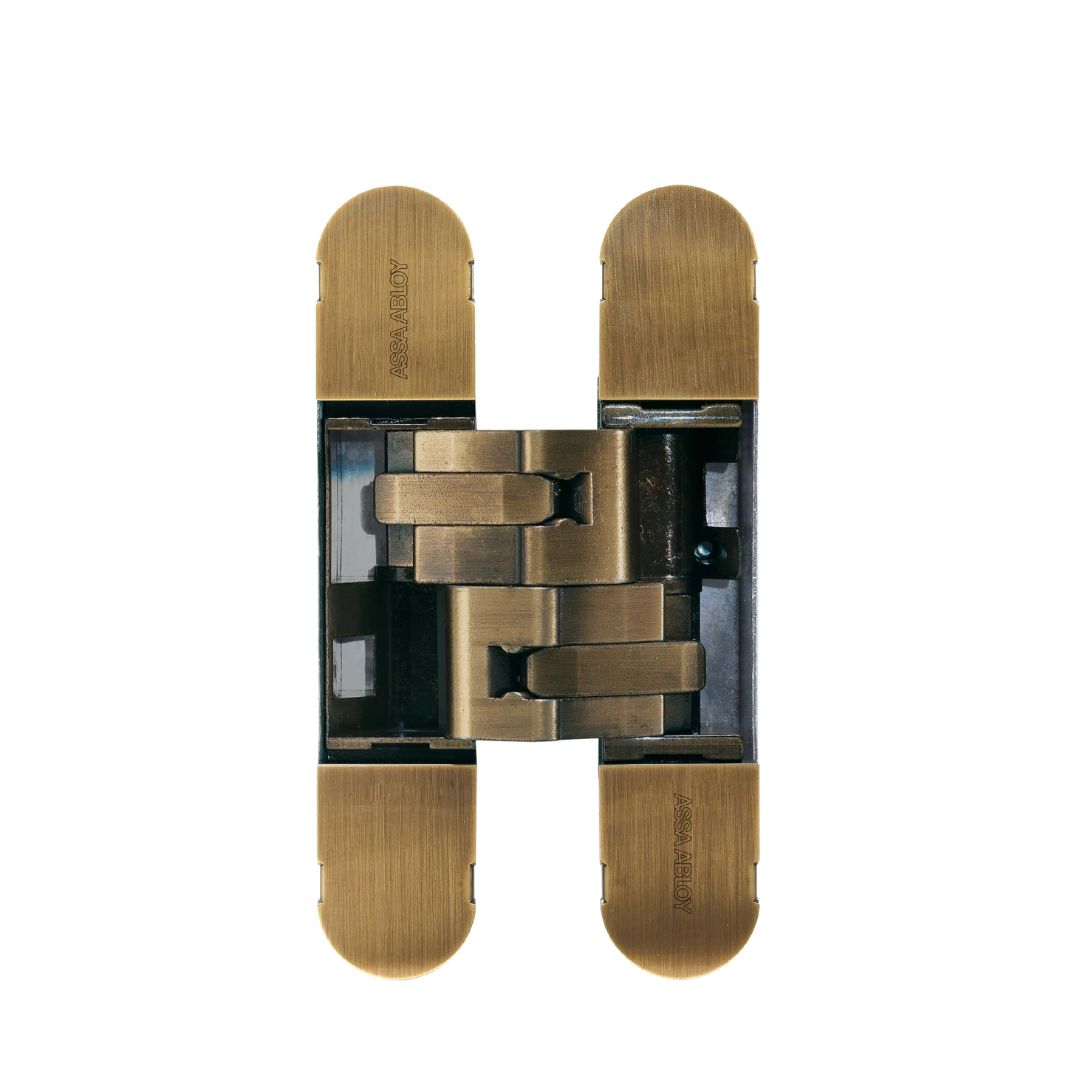

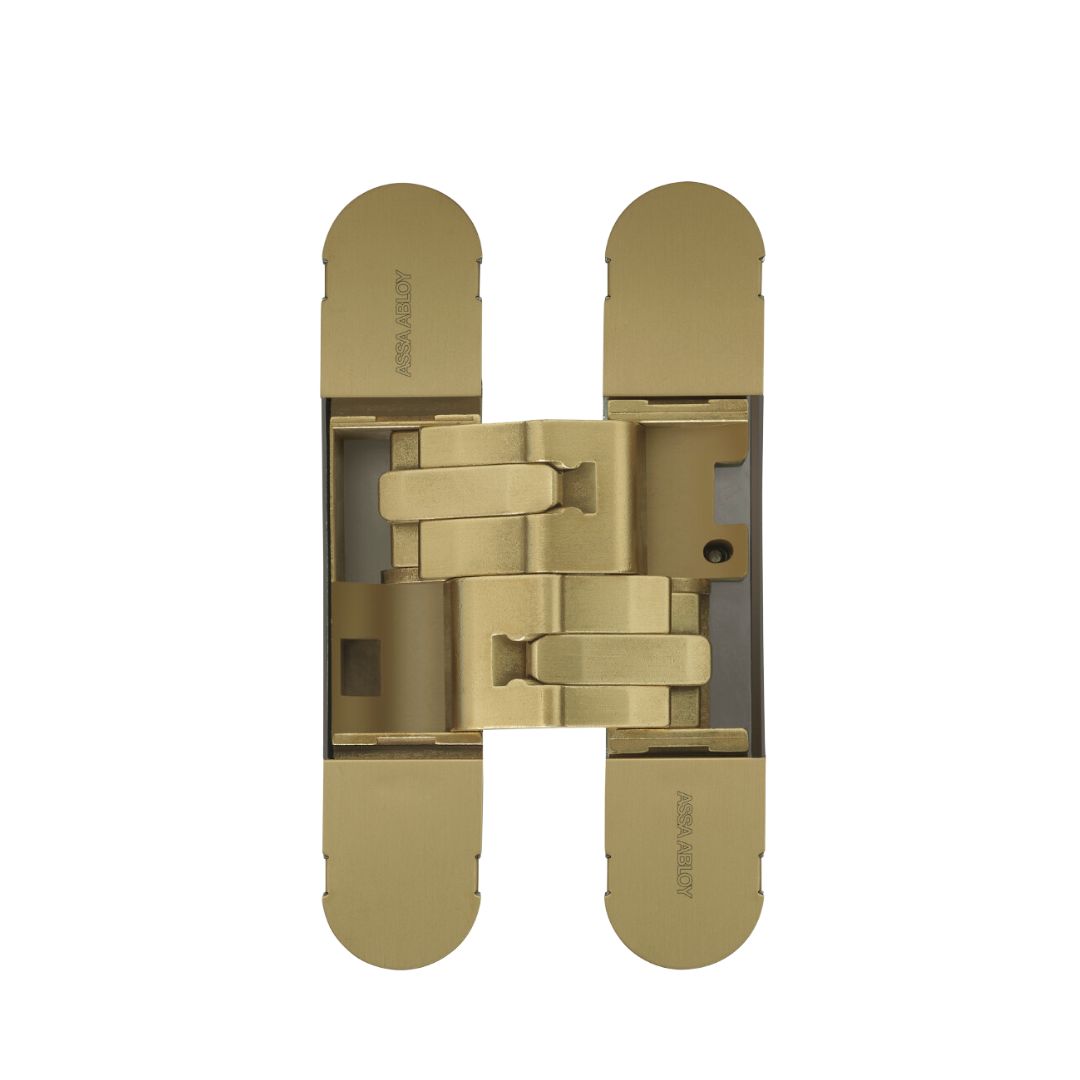

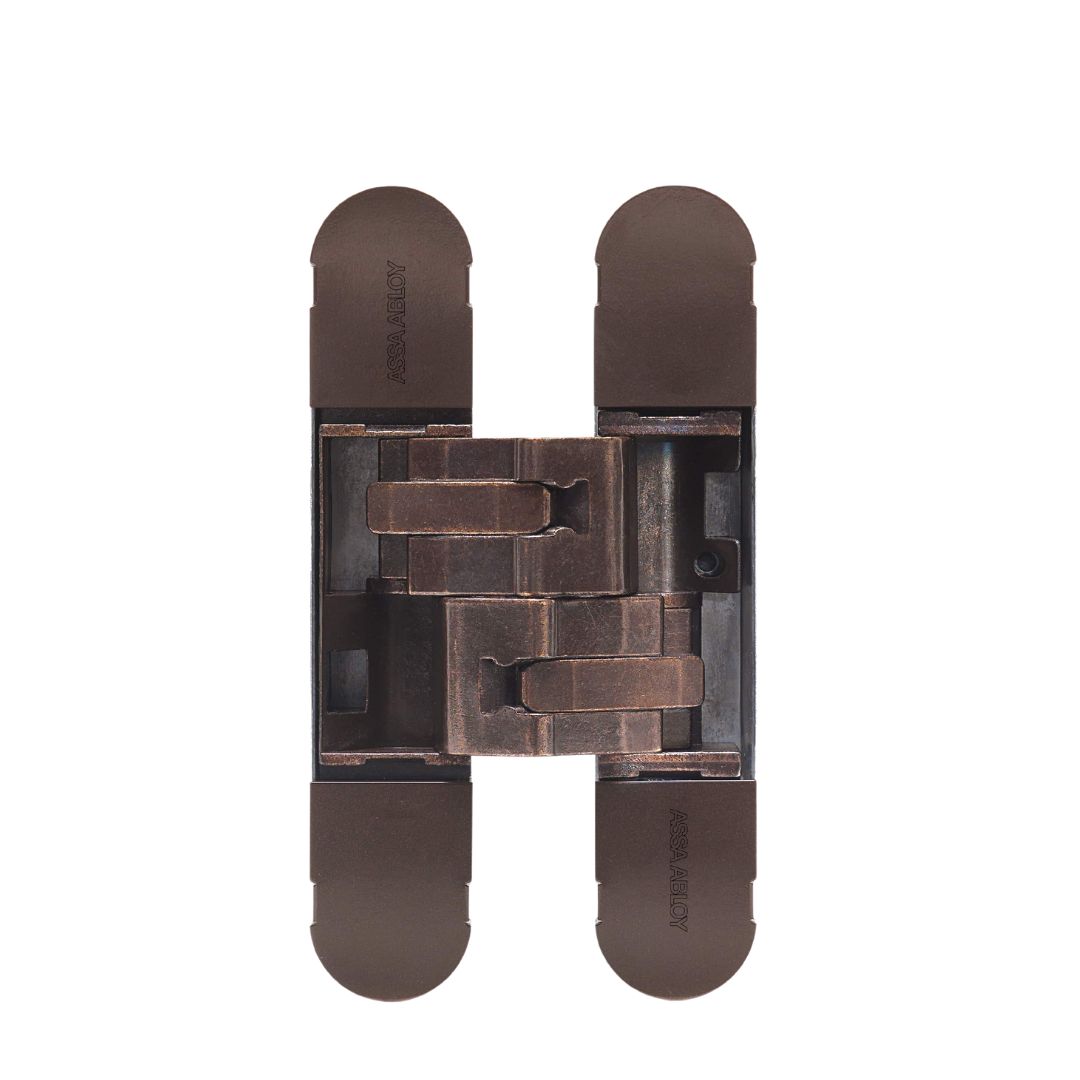

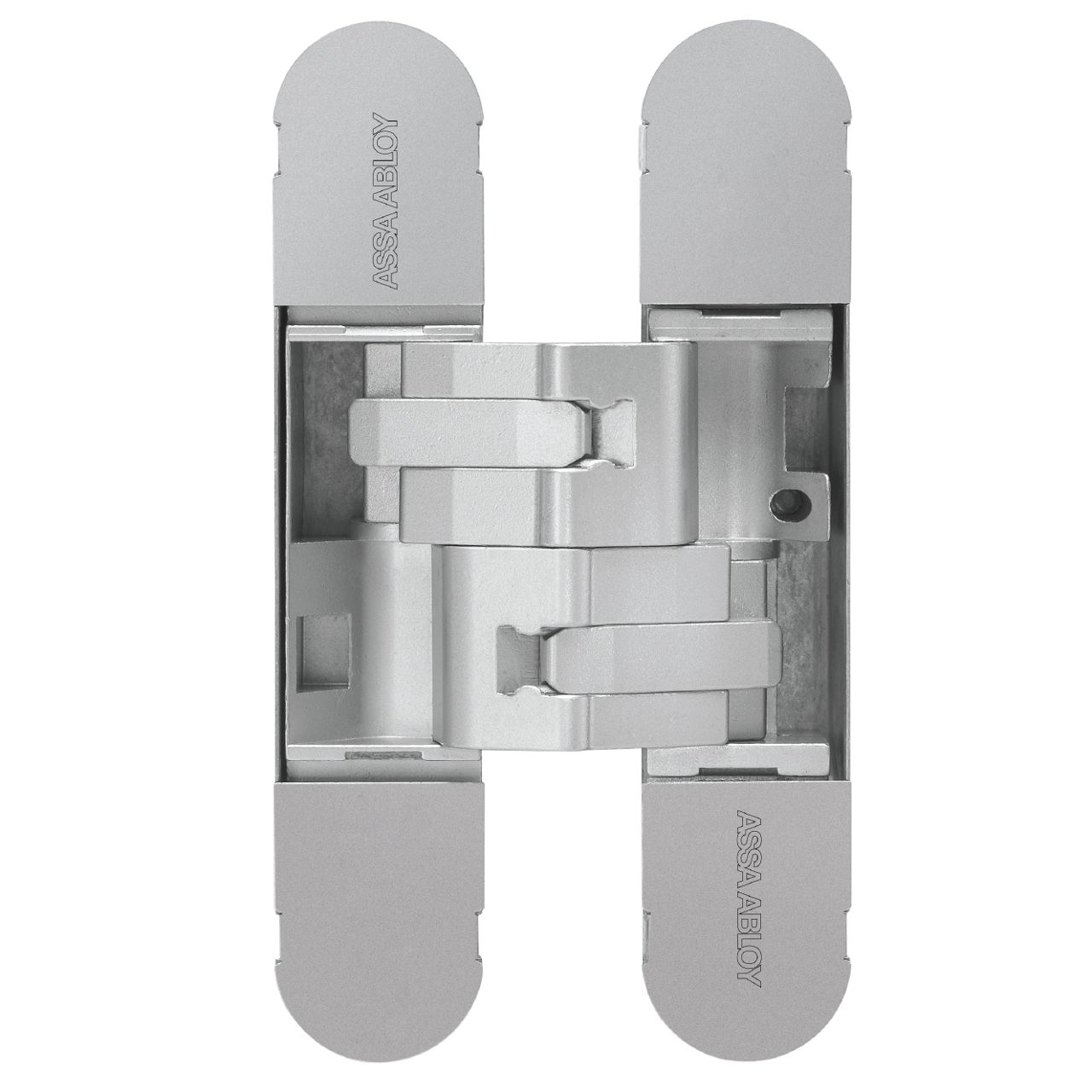

AAH801 Concealed Hinge

Invisible adjustable hinges for doors. Patented Model mm.160x32

AAH801 Concealed Hinge, Setting a new standard with refined finishes and a sleek minimal design. Crafted with attention to detail, it brings sophistication to any space it's installed in.

• Manufactured in zamak in 11 different finishes
• Suitable for doors of 38 mm min. thickness
• Total length 160 mm
• Depth 29 mm
• 3D adjusting system

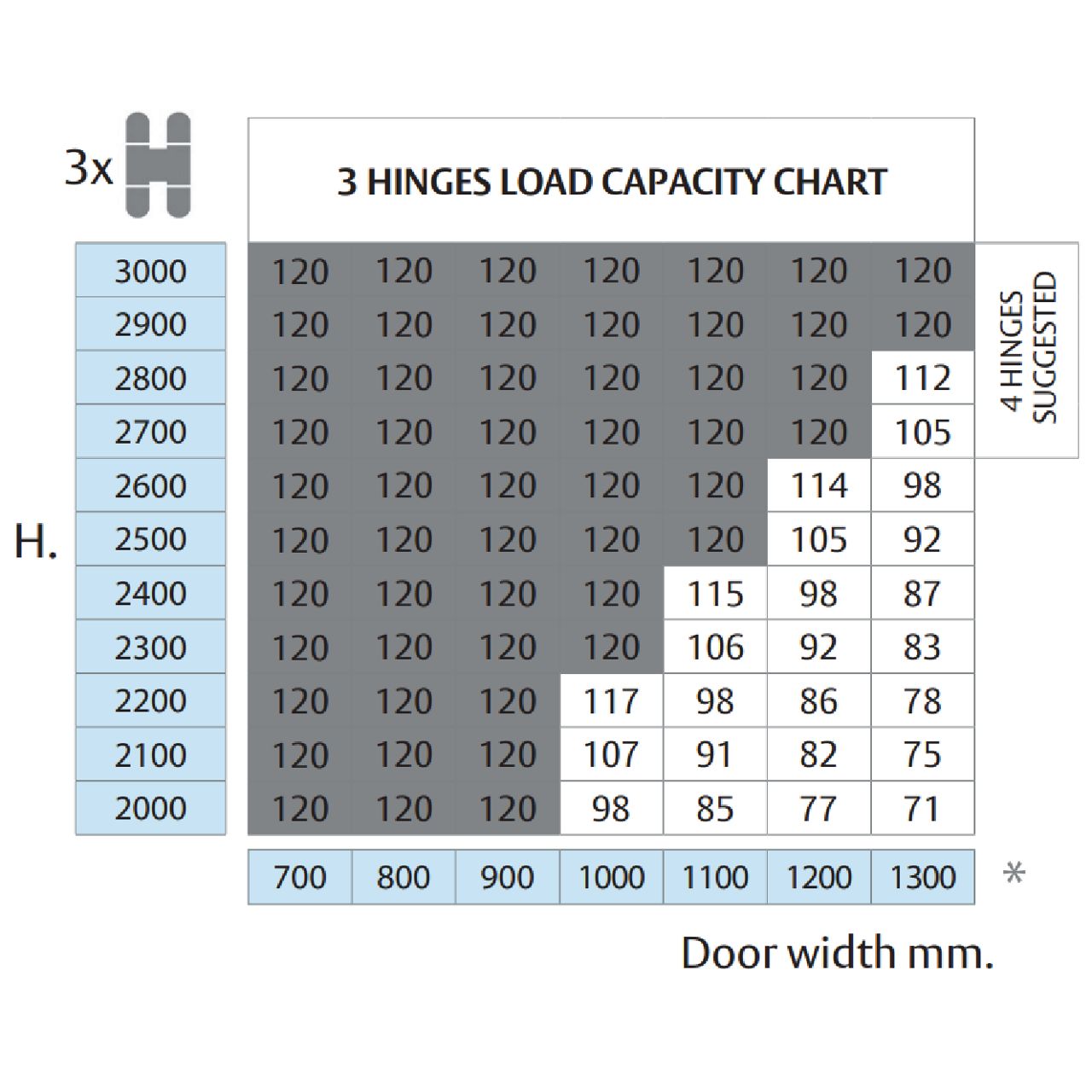

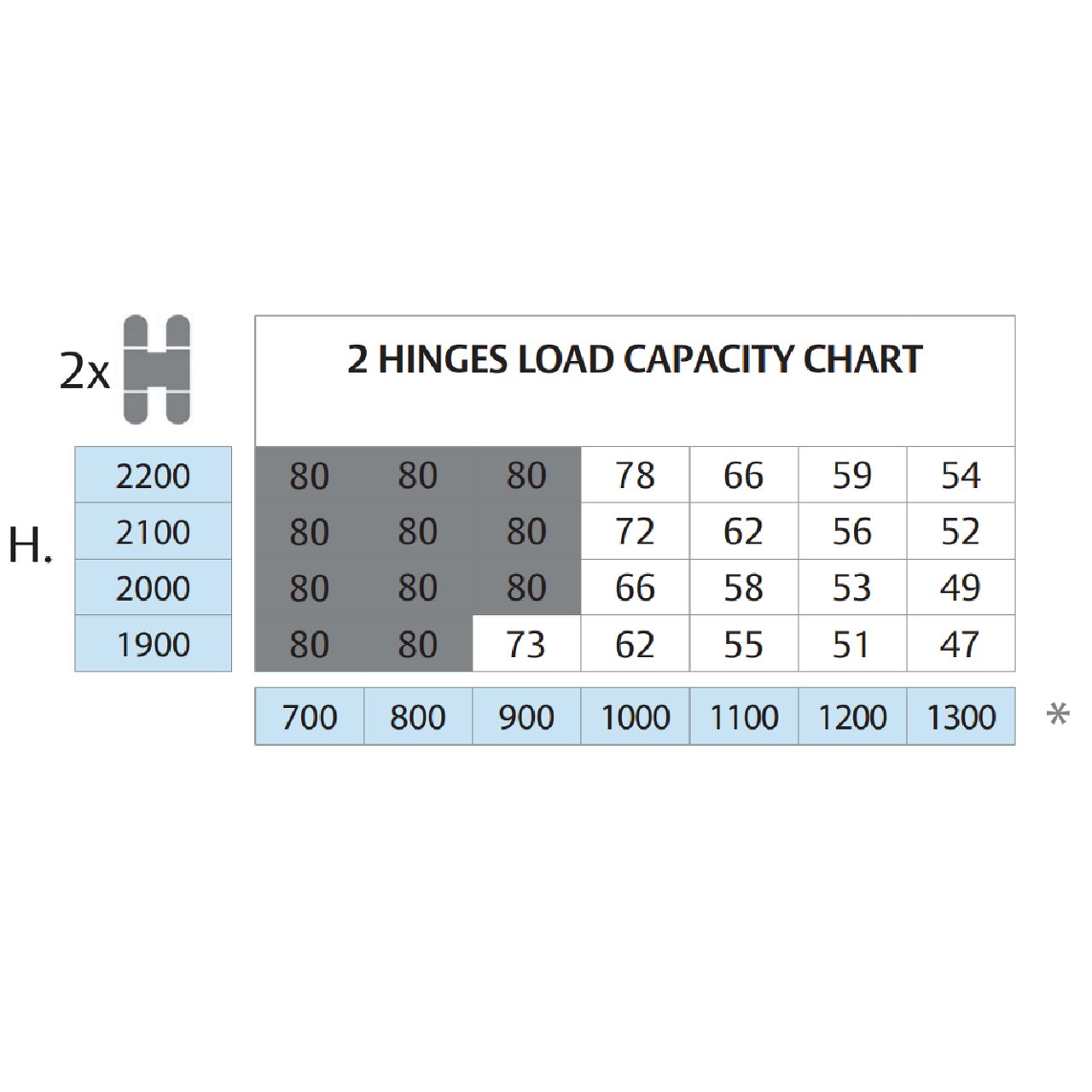

• Load capacity up to 120 kg
• Easy installation and slot symmetry
• Enhanced design and performance: now more elegant and highly resistant to oxidation due to the new external casing in zinc-coated zamak. The upgraded joint ensures smoother movement, exceptional precision and long lasting durability—now certified for doors up to 1000 mm wide
