DC340 - Surface Mounted

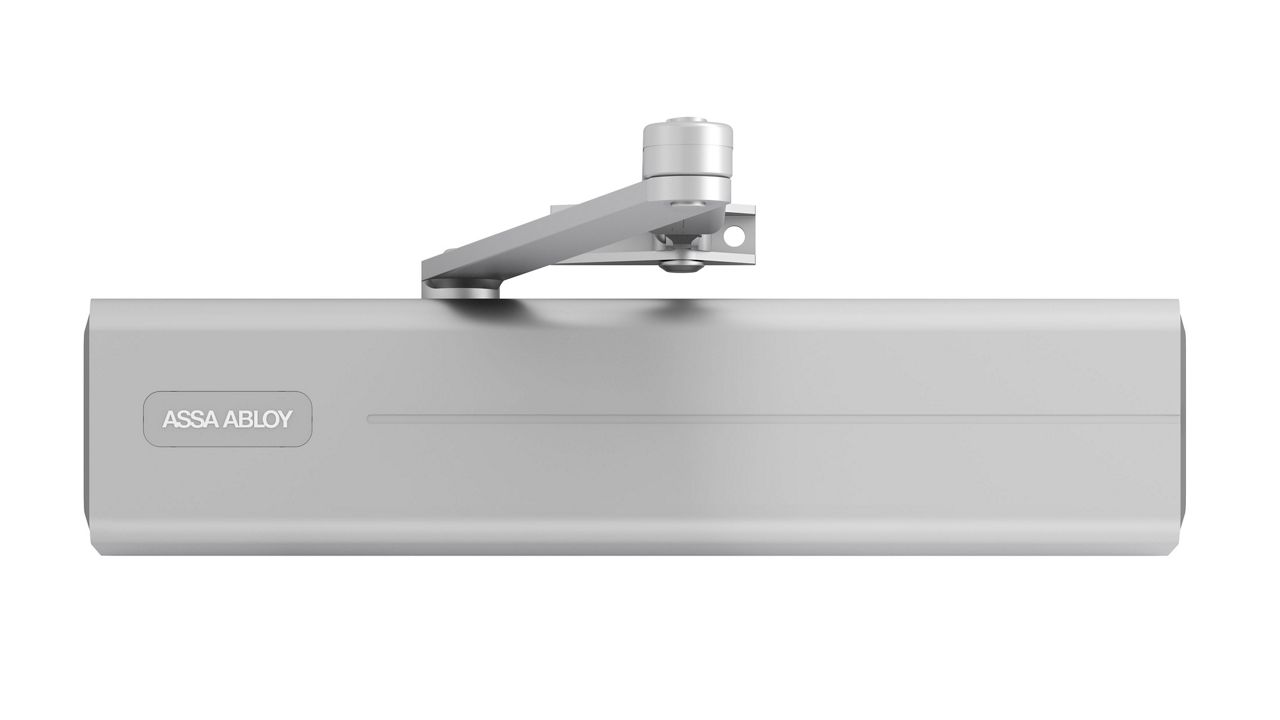

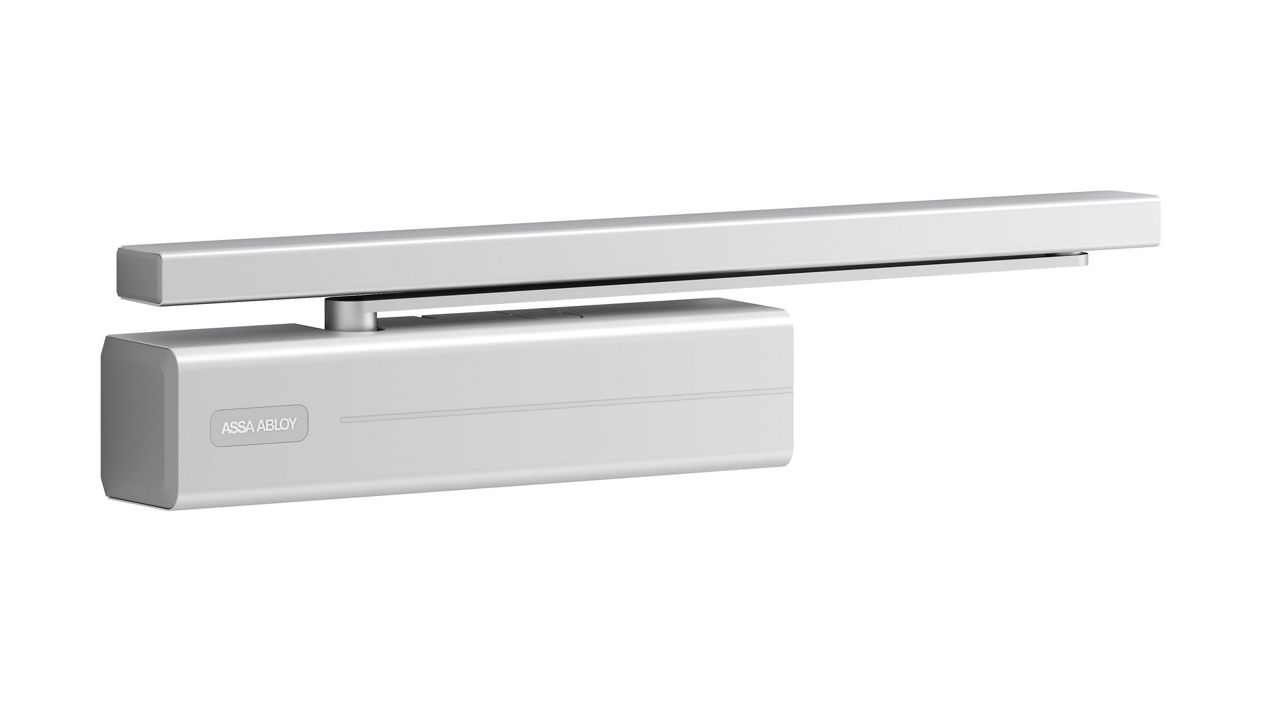

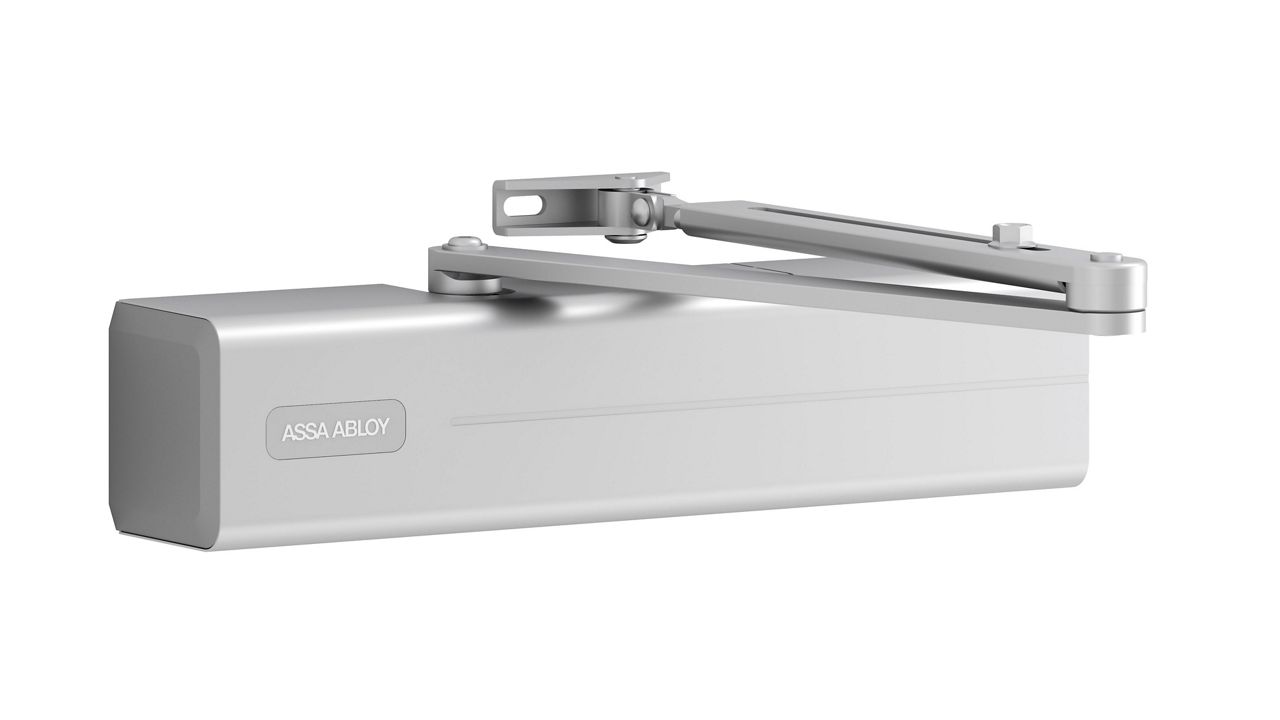

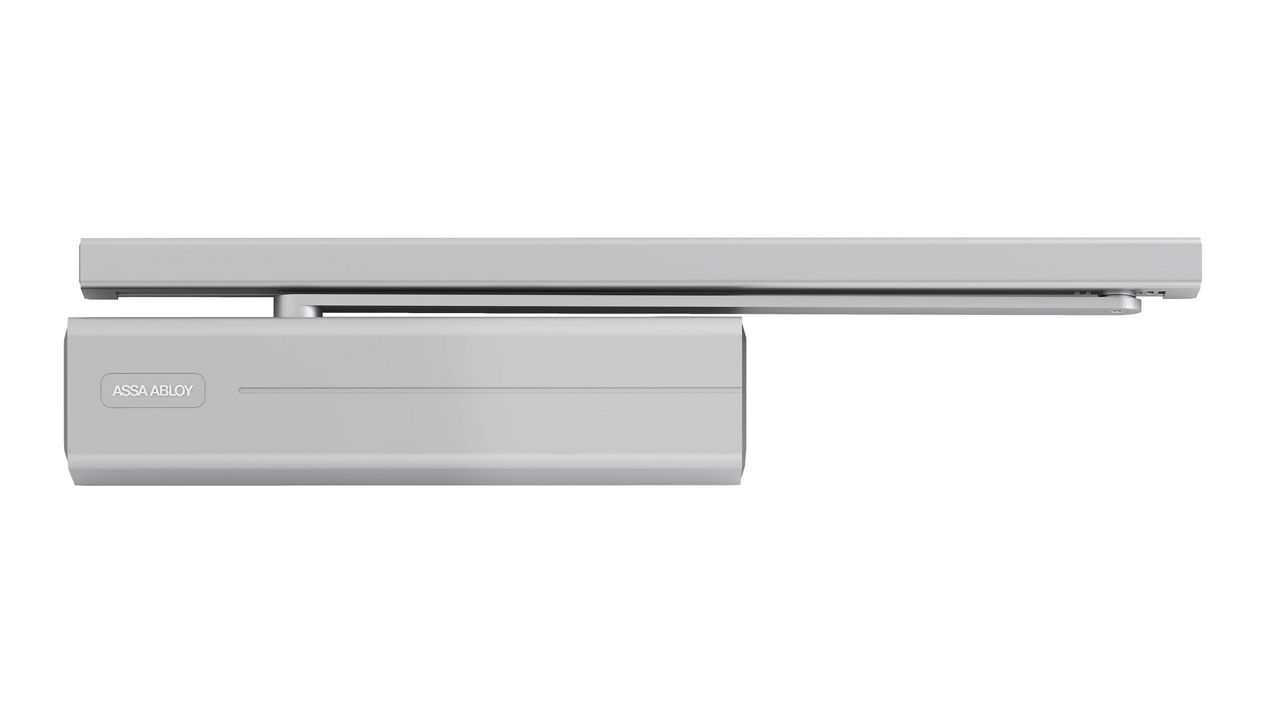

Rack and pinion closer with guide rail or link arm

Description:

• Rack and pinion closer with guide rail or link arm.
• Closing force: EN 1-4* / EN 2-6†, *guide rail variant; †link arm variant
• Mechanism: Rack and pinion
• Closing speed: Variable between 180°-15°
• Latching speed: Variable between 15°-0°
• Backcheck: Variable above 75°
• Delayed action: Yes
• Door width up to: 1100mm* / 1400mm†, *guide rail variant; †link arm variant
• Maximum door weight: 80kg* / 120kg†, *guide rail variant; †link arm variant
• Height adjustable arm system: 14mm
• Hold-open mode (with hold-open link arm L191): Adjustable 75°-150° (can be enabled and disabled), Not suitable for use on fire/smoke door assemblies
• Maximum opening angle: 180° (hinge side), 130° (non-hinge side)
• Mounting method: Hinge side, non-hinge side
• Handing: Non-handed

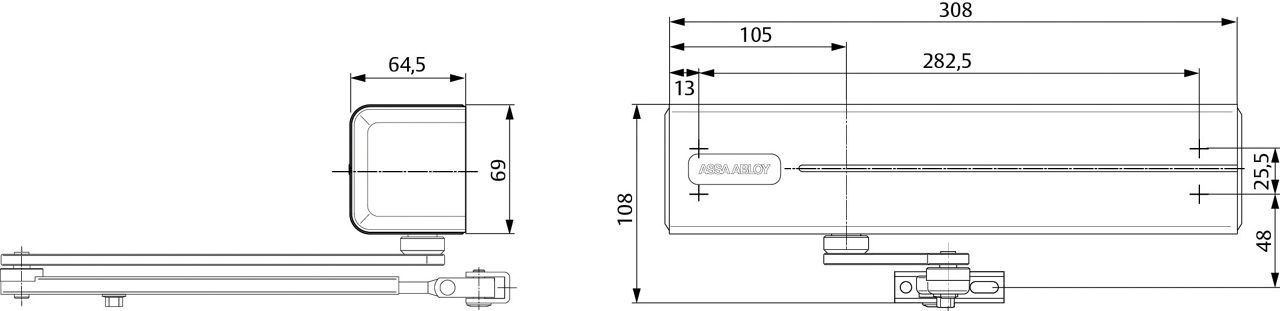

• Dimensions (H x D x W): 69 x 64.5 x 306mm
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel & Customised finishes available on request.
