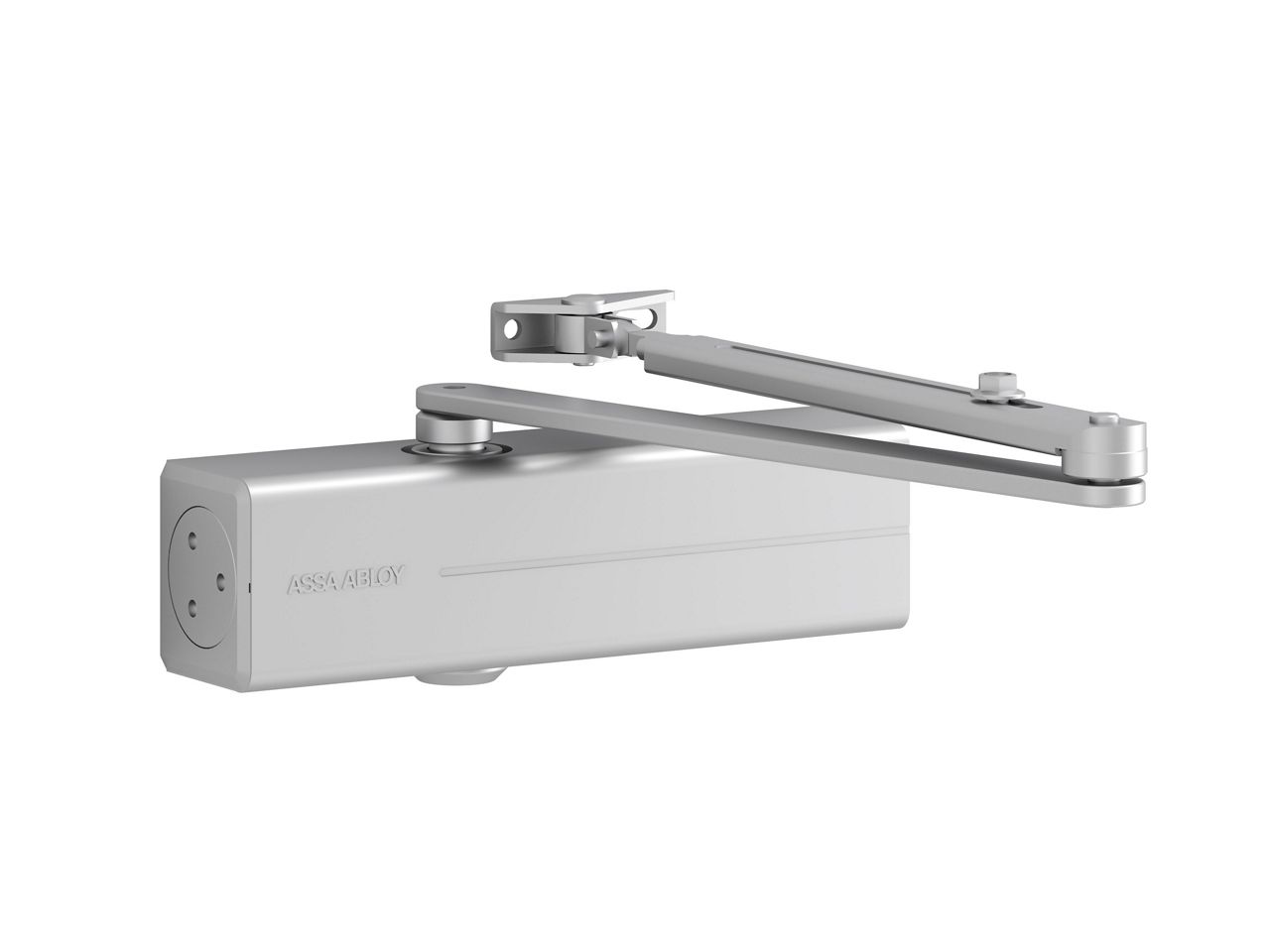

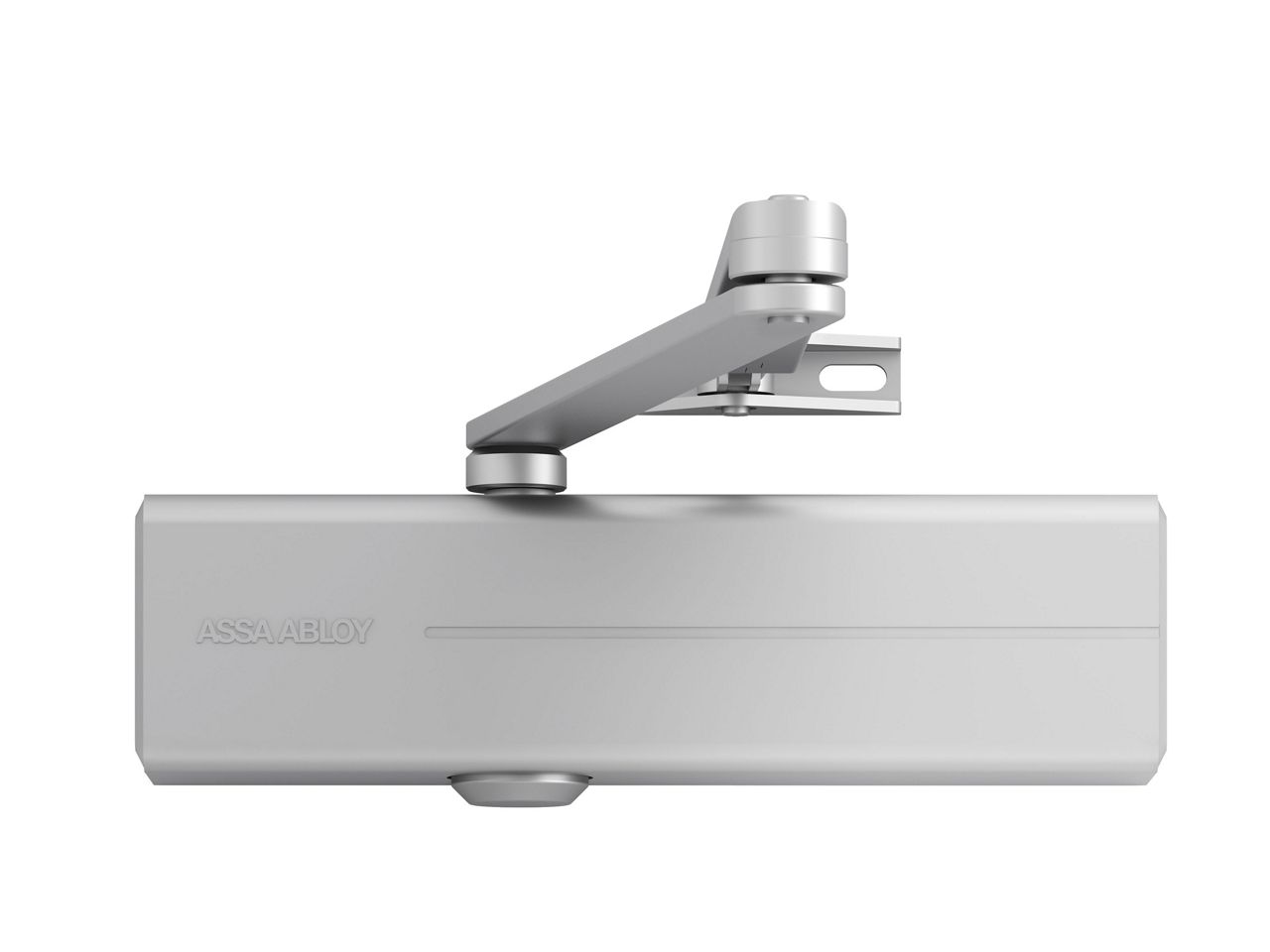

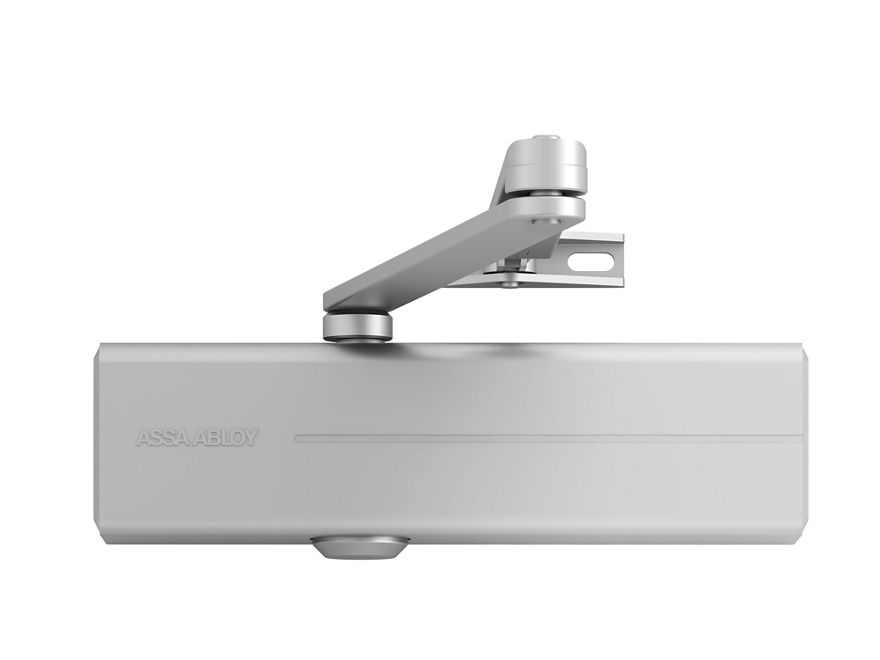

DC200 - Surface Mounted

Rack and pinion door closer with link arm

Description:

• Rack and Pinion door closer with link arm L190
• In compliance with EN1154, size 2-4
• For single action doors up to 1100mm wide
• Suitable for fire and smoke protection doors

Characteristics:

• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• Link arm height-adjustable up to 14mm
• Closing speed, latching speed and back-check adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Adjustable closing force
• Opening angle up to 180°
• Effective back-check and latching speed range adjustable
• Large range of applications

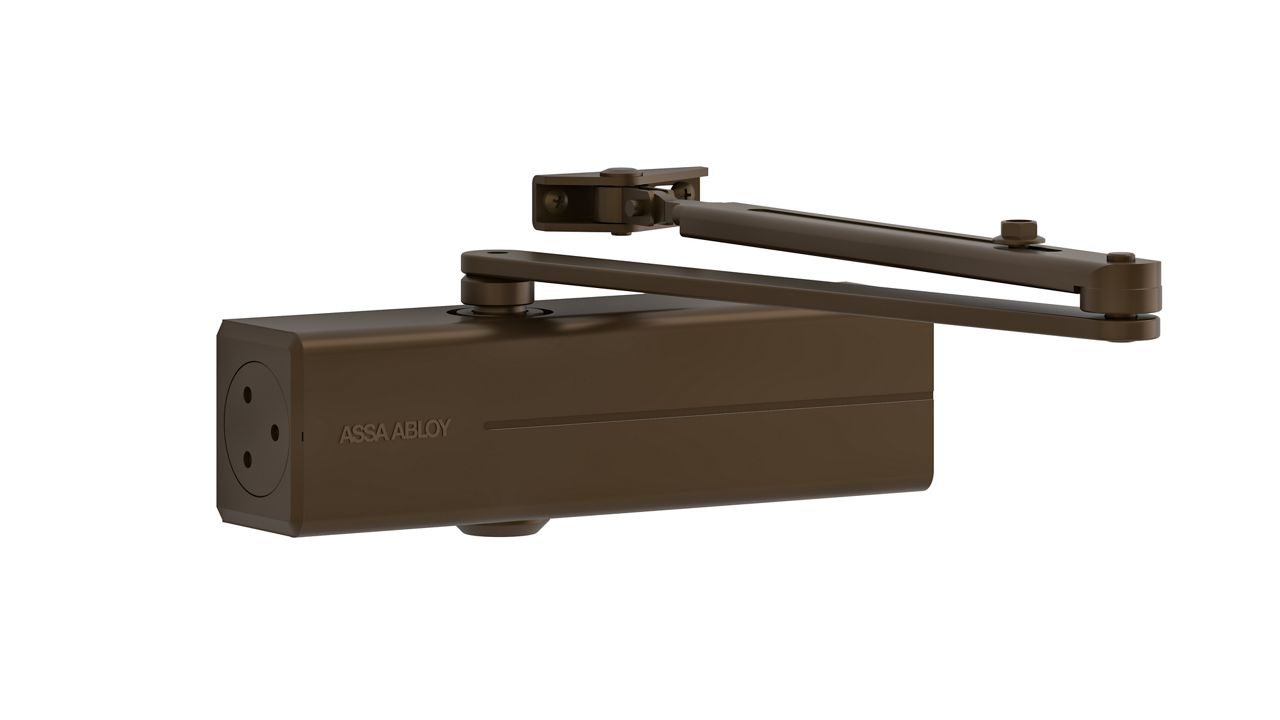

• Standard colours: Silver EV1; White, similar to RAL9016; Brown , similar to RAL8014; Black, similar to RAL9005
• Customized finishes available on request
