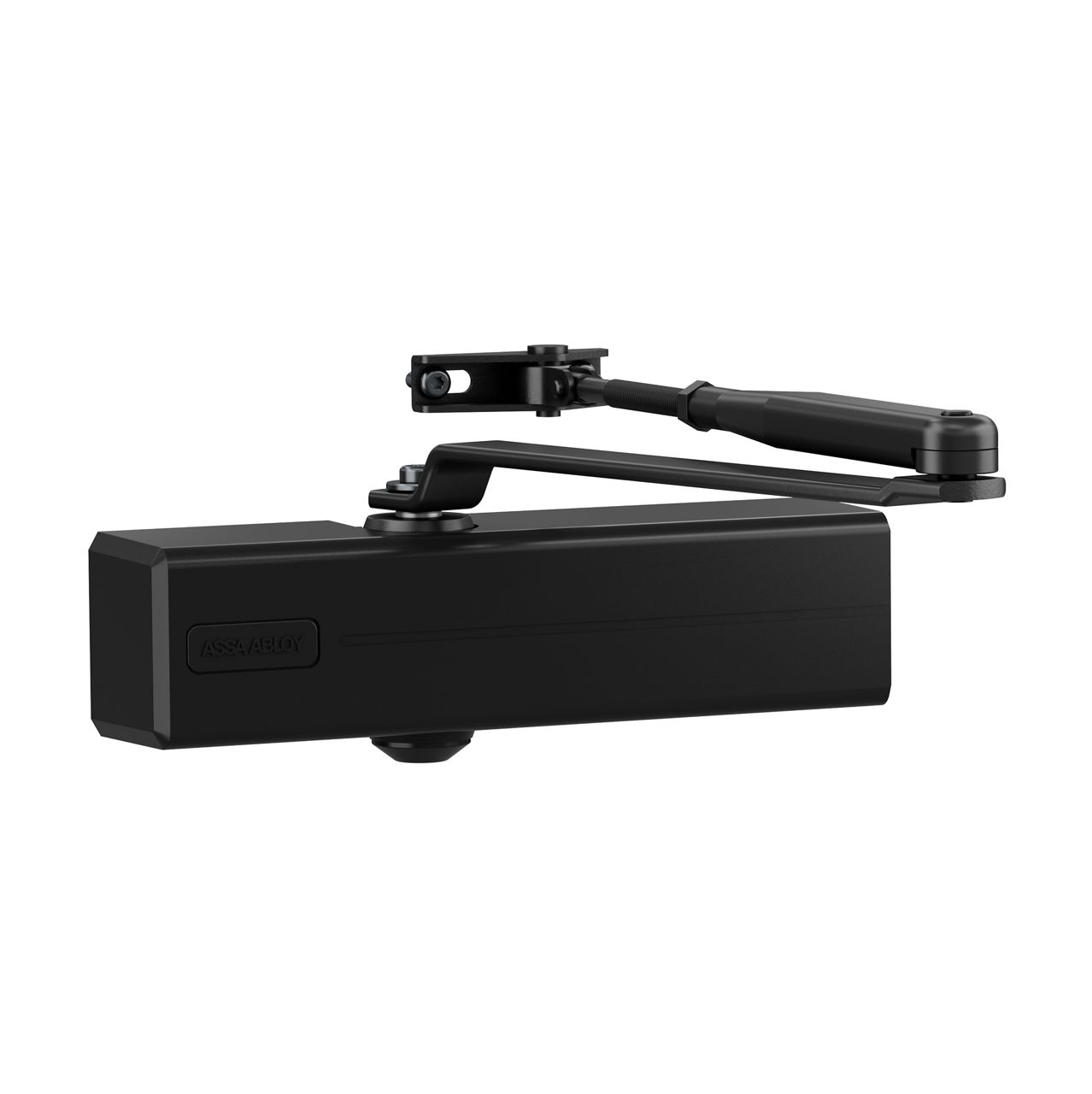

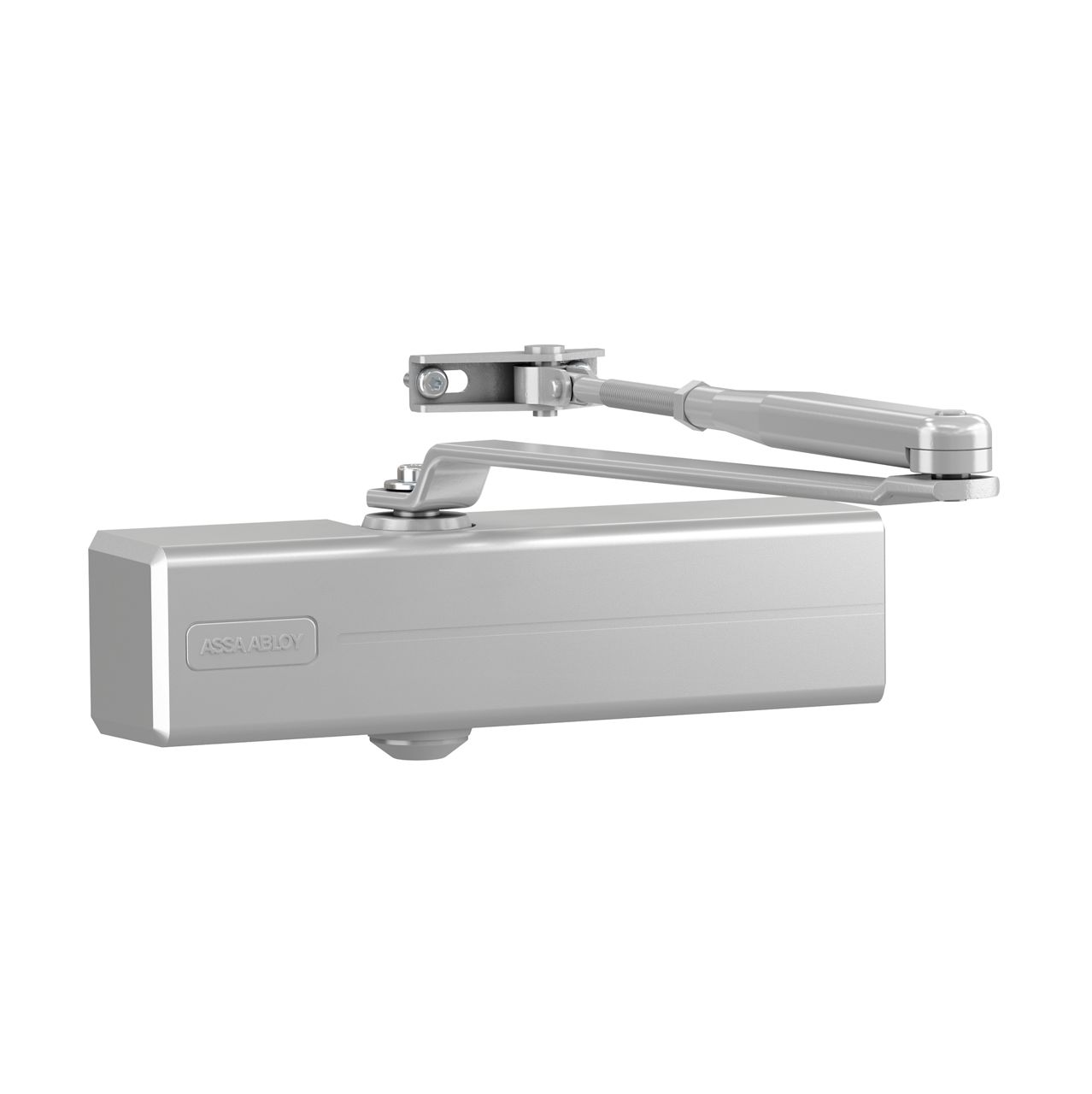

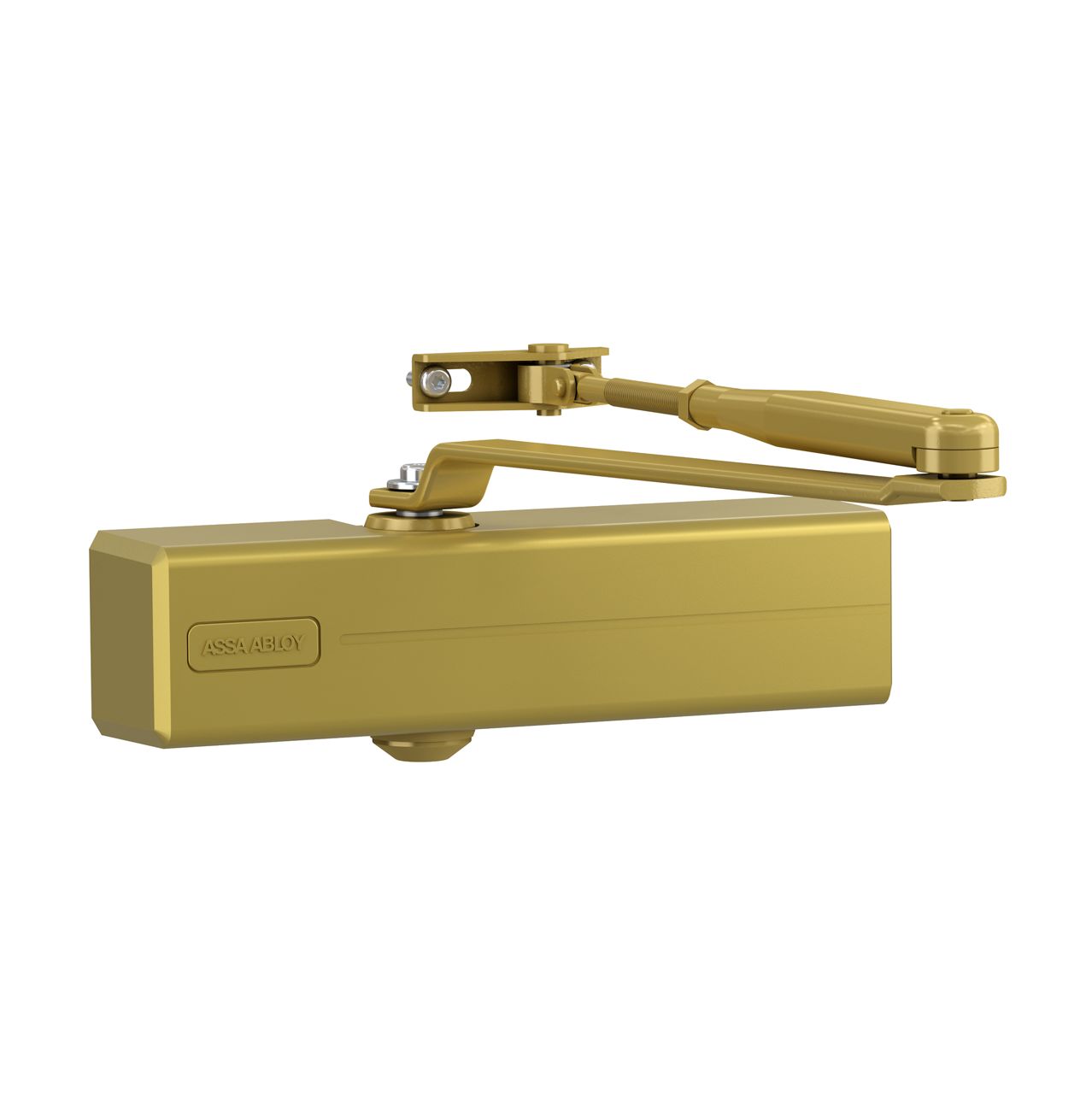

DC120 - Surface Mounted

Rack and pinion door closer with link arm or guide rail for single leaf doors, size 2/3/4

The DC120 series is an economical and compact rack and pinion door closer for a wide range of applications. It comes in ASSA ABLOY's renowned design style and is available in a variety of configurations and finishes to meet your specific requirements.

Characteristics:

• Can be used for left- and right-handed doors
• Opening angle up to 180° (120° in mounting position EN size 4)
• Closing and latch speeds can be raised and lowered independently
• Durable metal valves make adjustments reliable
• Consistent performance in a wide range of indoor/outdoor temperatures
• Backcheck functionality as standard protects frame and surrounding areas
• ASSA ABLOY design painted plastic cover with reversible logo tag or stainless steel cover included
• Certified in compliance with EN 1154, size 2/3/4\ (size 2 with guide rail and size 3 with parallel arm)
• Suitable for fire and smoke protection doors (not for hold-open link arm and guide rail)
• For single leaf doors up to 1100 mm width
