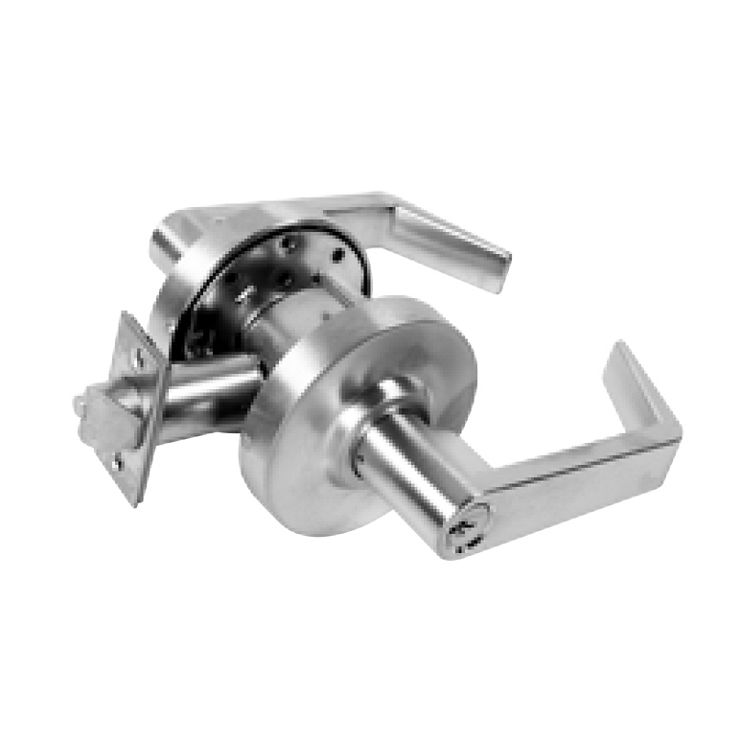

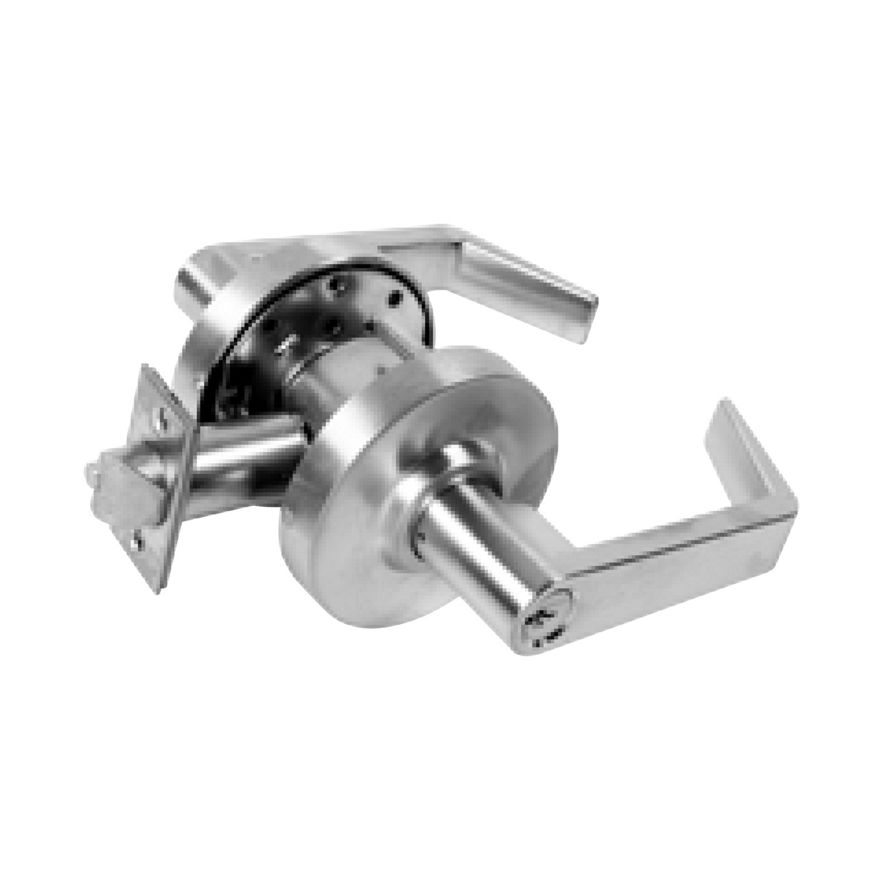

CL1000 Series

Description:

Designed for medium to high traffic commercial applications.
No exposed mounting screws.
Non-handed.
Through Bolt Mounting posts 2-5/8” centre to centre provided, to prevent chassis rotation.

Features:

• Quality heavy duty return springs to reduce lever sag
• Heavy rose liner material provides attack resistance
• Heat treated heavy gauge steel spindles
• The rose assembly is adjustable for door thickness
• Specify clutching or non-clutching when ordering

Specifications:

• For Doors: 1-3/8” to 1-3/4” (35mm to 44mm)
• Backset : 2-3/4” (70mm) standard 2-3/8” (60mm) available
• Front: Stainless Steel or Brass, 2-1/4” x 1-1/8” (57mm x 29mm)
• Strike: ANSI (4-7/8” x 1-1/4”) strike standard, Wood Door strike (T-Strike) available
• Roses: 3-1/4” (90mm) Diameter Stainless steel or brass
• Handing : Non-handed
• Latchbolt: Stainless steel 1/2” (12.5mm) throw standard
• Cylinder: Solid brass 6-pin cylinder Schlage C keyway with two keys per lock standard. Weiser keyway available by order keying Keyed Different (KD) standard. Available Masterkeyed (MK), Keyed Alike (KA) and Construction Master keyed (CMK) see Keys and Keying section for additional options
• Finishes: US26D (626), US10B (613), US3 (605) for levers. Other finishes available by special order
