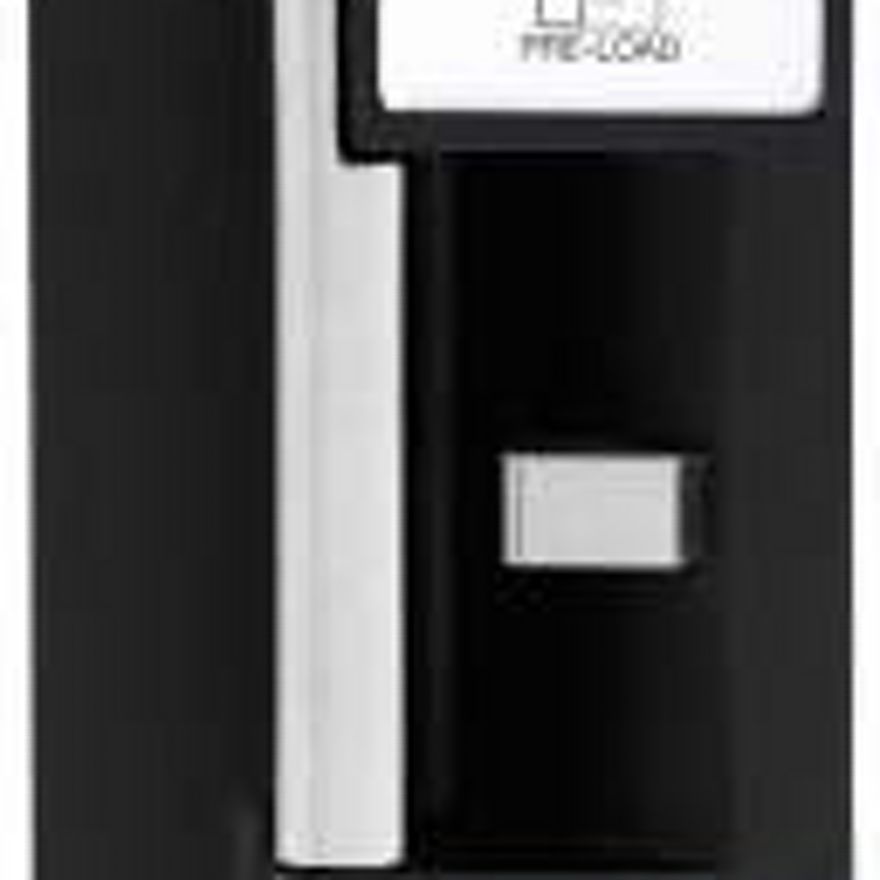

ES9000 Pre-Load Electric Strike

fail safe/fail secure changeable on site.

The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.

Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.

Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.

Key Features

  • Operates under pre load up to 25kg
  • Easy field selectable fail safe/fail secure
  • Multi voltage 10-30Vdc
  • 1300kg holding force
  • 2.5 million cycles endurance rating
  • Latch keeper is significantly quieter in operation
  • Weather resistant
  • Mounting tabs as standard
  • Non handed
  • TRICARE® 5 Year Warranty
  • Australian designed and made
  • Built in Protection Diode

Applications

  • High traffic areas
  • Doors subjected to side load (pre load)
  • Fire rated door sets
  • Open in/open out doors
  • Suitable for use with all access control systems

Standards and Compliance

  • S3 (Security) Australian Lock Standard (AS4145.2.1993)
  • D3 (Durability) Australian Lock Standard (AS4145.2.1993)
  • Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
  • CE Approved
  • C-Tick Certified
  • IP 54 Rating
  • SCEC Approved for Security Level 3
