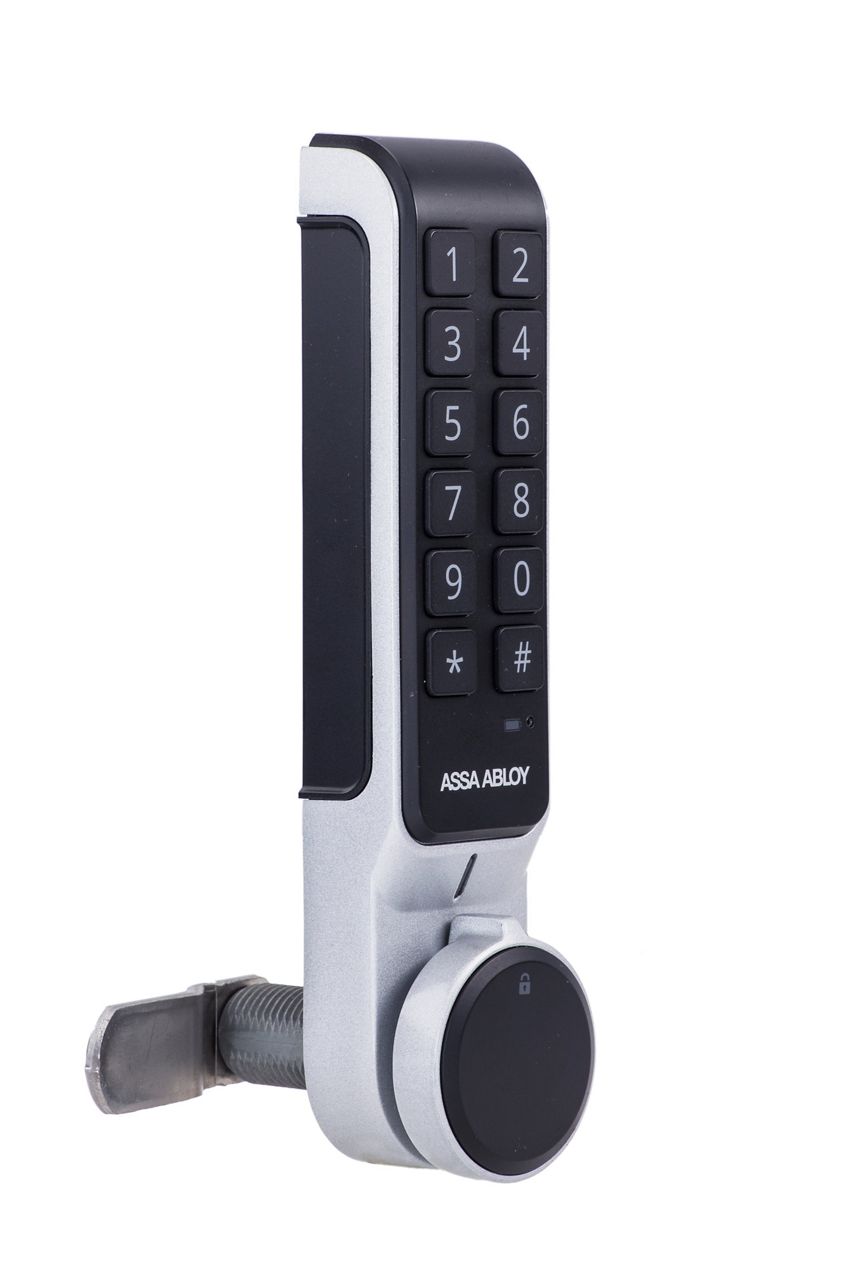

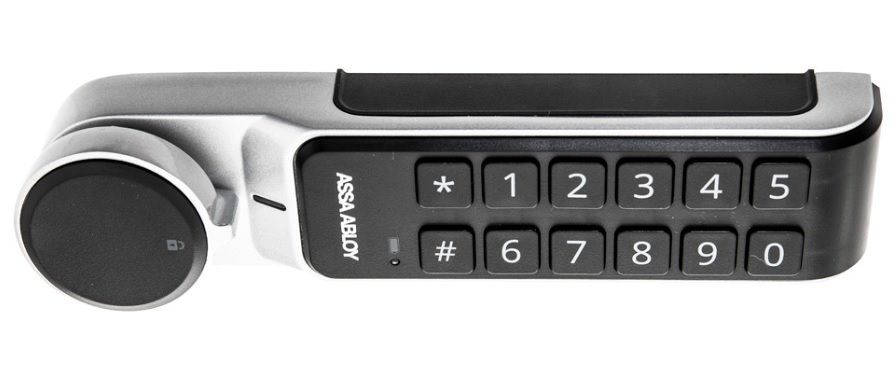

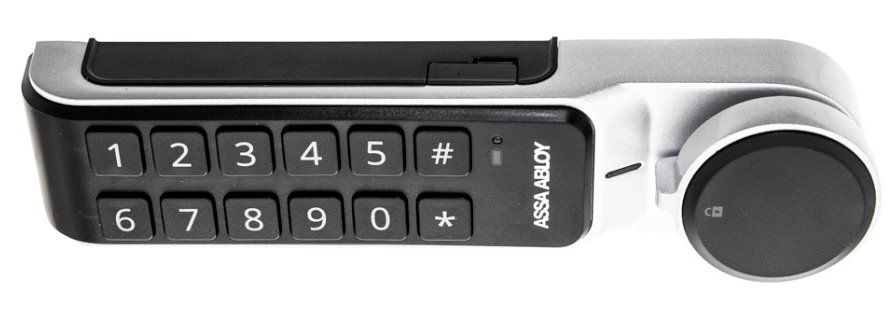

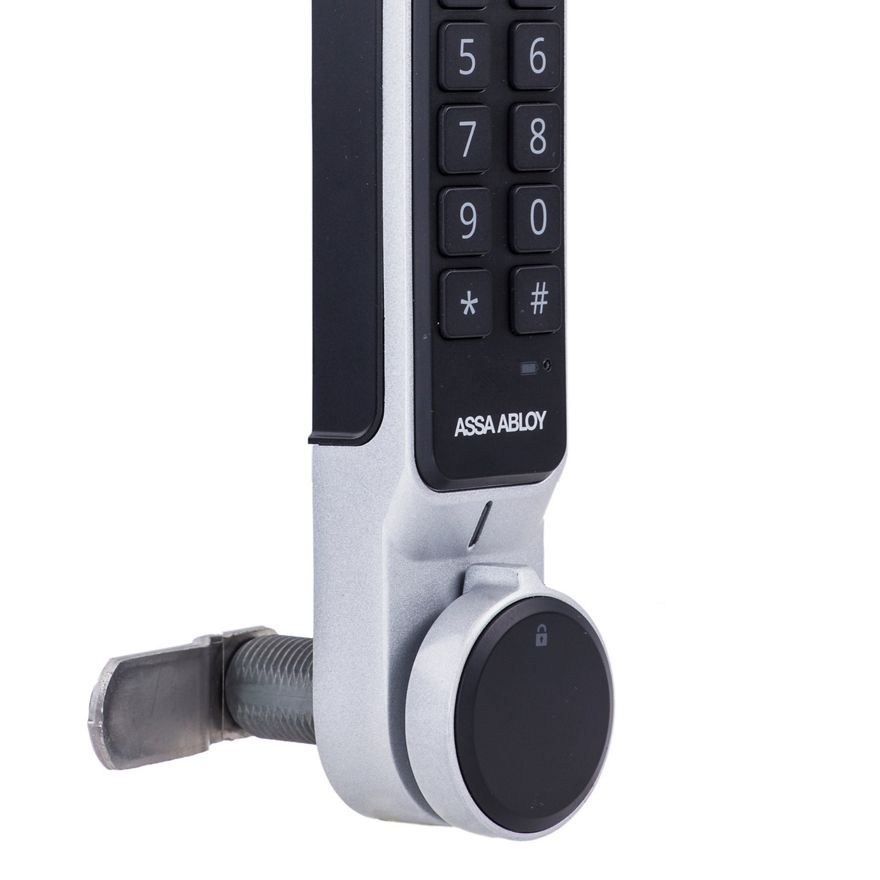

Digital Locker Lock

ASSA ABLOY PIN is a stand-alone battery driven code locker lock.

Stand-Alone means that the lock can be used, programmed and deployed without any software or programming devices.

The lock is designed for usage in dry areas, but can be used in wet area applications together with a rubber gasket.

The lock can be retrofitted by utilising the existing hole foot-print/fixings with just an extra hole for the upper screw.
The lock can be mounted in both vertical and horizontal position.
The lock is available in 2 barrel lengths. For assembly on doors with 1-15 mm door thickness and for assembly on doors with 15-23 mm door thickness.
The lock has sound and light feedback to improve user experience.
The lock has 3 code levels: User Code (4 digits), Janitor / Staff Code (6 digits) and Master Code (8 digits)
The lock has a USB connection to be able to supply the lock with emergency power for access in case of depleted batteries.
Suitable for use with ASSA ABLOY standard cams. (see separate data sheets).
Built in torque-overload protected clutch function in handle.

The lock works in 2 different modes. These are:
1. Private Mode - The locked is open with the same pre-programmed codes.

2. Public Mode - The lock can be locked with any one time code. Once unlocked the lock is free for input of new user code.

Quick setup is available for easy deployment into any of the above 2 modes.
Additional functionality can be easily added/deleted using standard programming.
The lock comes with variable time opening, meaning the lock automatically unlocks after a pre-set period of time.
The lock comes with a time-delay function, which is activated when the wrong code is entered repeatedly.
