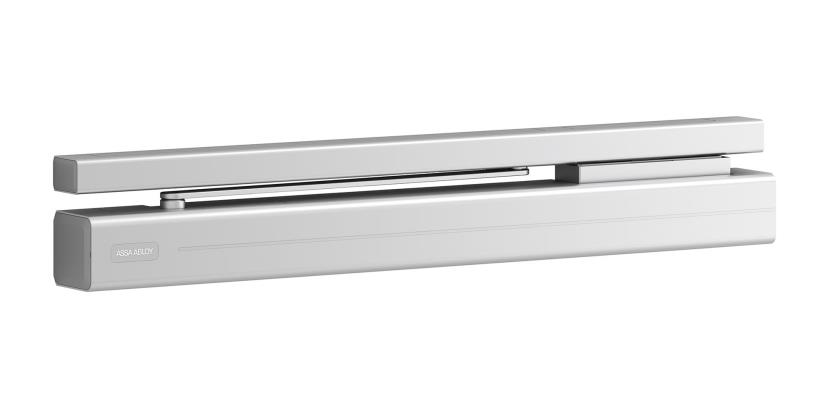

    DC700G-FT Security Closer

    World’s first security door closer featuring a Cam-Motion® door control with an integrated latchbolt and escape door electric strike. The DC700G-FT offers safety, egress, efficiency and security in a single solution, and it is perfect for use on escape way doors. This combined functionality gives a robust door solution ideal for security applications controlling access around a building and can reduce product tampering and abuse, due to its hidden locking. A single unit solution to closing and locking that ensures an elevated aesthetic for your door

    Integrated fail-safe locking solution ideal for building access and egress and total suitability for use on escape way doors

    Simple connection to the fire or smoke alarm system, which unlocks the door to ensure emergency exit route compliance

    Easily integrated into a building management system or monitored from a central display and operator panel

    Easy turnkey solution for combined fire and security doorsets

    Closing and latch speeds can be raised and lowered independently

    NameValue
    SecurityYes
    Warranty10 Years
    Anti SlamNo
    MechanismCam Action
    BackcheckYes
    Free SwingYes
    Arm SuppliedGuide Rail
    Double ActionNo
    Single ActionYes
    Delayed ActionNo
    Latching SpeedYes
    Max Door Width (mm)1400mm
    Max Door Weight (kg)120kg
    Cover Trim PlateCover
    Force AdjustmentYes
    Hold Open - ManualNo
    Max Closing ForceEN6
    Max Opening Angle170°
    Min Closing ForceEN3
    Door Leaf MaterialTimber
    Fire Door ApprovalYes
    Hold Open FunctionNo
    Min Door Thickness (mm)44
    Hold Open - ElectromechanicalYes
    Height Adjustable Arm System14
    Max Opening Angle Hinge Side170°
    Max Opening Angle Non Hinge Side120°
    StandardsBS 8300, CE
    FunctionBackcheck, Free Swing, Hold Open - Electromechanical, Security, Single Action
    ProductProduct IDAttributes
    DC700G-FT Security CloserDC700G-FT/BGS OS 24
    Finish: Silver
    Mounting Method: Push
    Operating Voltage: 24
    DC700G-FT Security CloserDC700G-FT/HS 12
    Finish: Silver
    Mounting Method: Pull
    Operating Voltage: 12
    DC700G-FT Security CloserDC700G-FT/HS 12/SS
    Finish: Stainless Steel
    Mounting Method: Pull
    Operating Voltage: 12
    DC700G-FT Security CloserDC700G-FT/HS 24
    Finish: Silver
    Mounting Method: Pull
    Operating Voltage: 24
    DC700G-FT Security CloserDC700G-FT/NHS12/SS
    Finish: Satin Stainless Steel
    Mounting Method: Pull
    Operating Voltage: 12
    DC700G-FT Security CloserDC700G-FT/PULL/24VSS
    Finish: Satin Stainless Steel
    Mounting Method: Pull
    Operating Voltage: 24
