75 MULTI STRIKE BODY 12/24V

Experience enhanced security and convenience with the ASSA ABLOY 75 series electric strike. Designed for seamless access control, this durable and reliable device ensures smooth operation while maintaining a sleek appearance. Perfect for modern buildings, it offers peace of mind and effortless entry, elevating your security system to the next level.

Continuous duty AC or DC

Fail-locked or fail-unlocked with built-in microswitch

The strike may be set to either open when the current is on and lock automatically when the current is switched off (fail locked) or be closed as long as the current is on and open automatically when the current is switched off (fail unlocked)

A microswitch monitors the latchbolt engagement

High strength - resists 700kg sidepressure on the staple

Name	Value
SKU	50382005100
Duty	DC Continuous Duty Fail Locked
Brand	ASSA ABLOY ELMECH
Style	Multi Strike
Wires	No
Finish	Stainless Steel
Faceplate	Flat

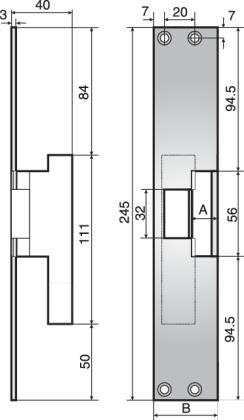

Dimensions (mm)	245 X 40 X 3
Monitoring	None
Finish Type	Silver
Holding force (kg)	700
Mounting Method	Concealed
Operating Voltage	12-24
Door Leaf Material	Metal
Holding Force (kg)	501kg To 750kg
Electric Locking Types	Wireless
Side Pressure Pivoting Staple	700
EAN code	5011783538456
Standards	EN 61000
Range Name	Assa Abloy - El Mech
Door Type	Metal
Function	Configurable
Electric Locking Function	Configurable
