ExiSAFE Single Door Panic Hardware

Variations

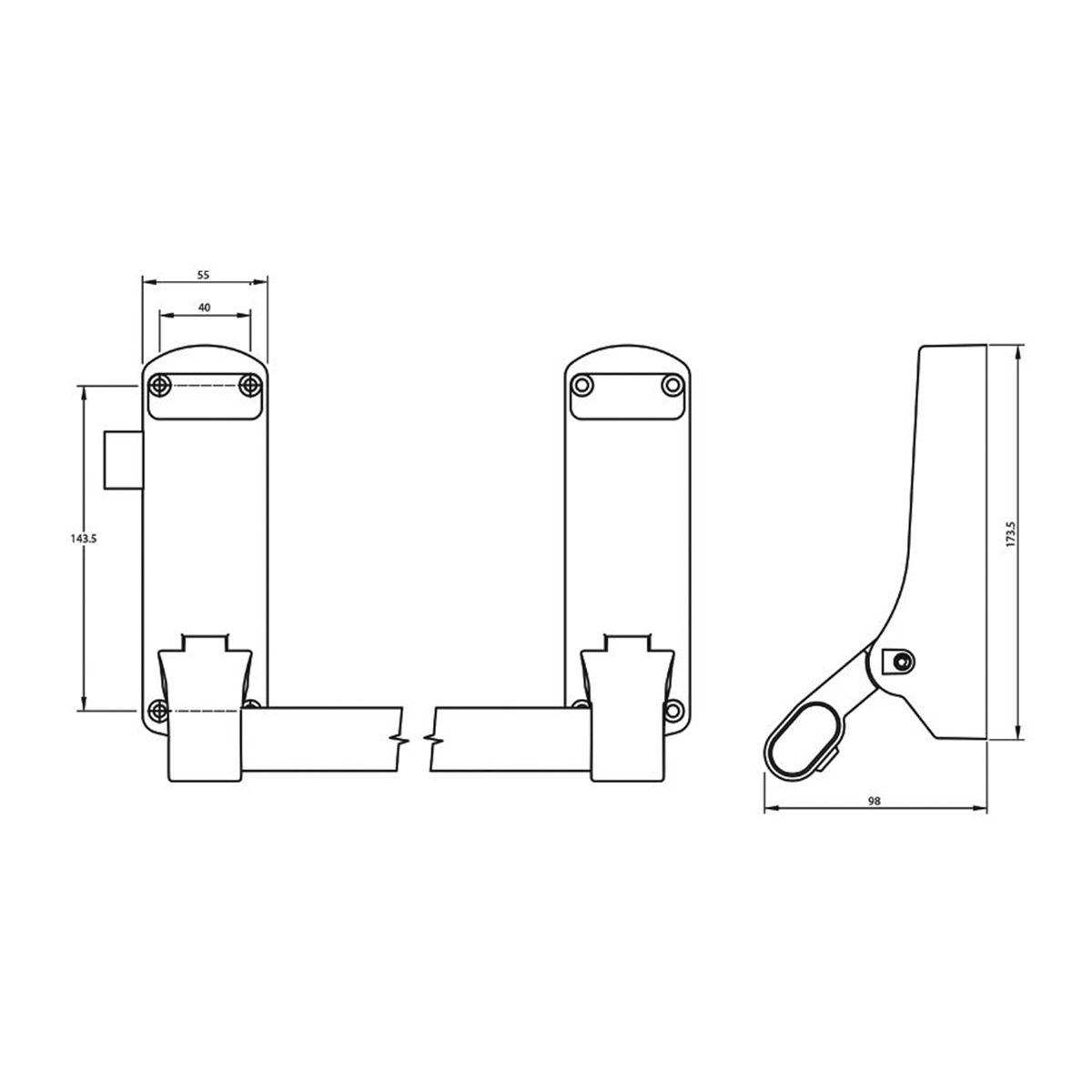

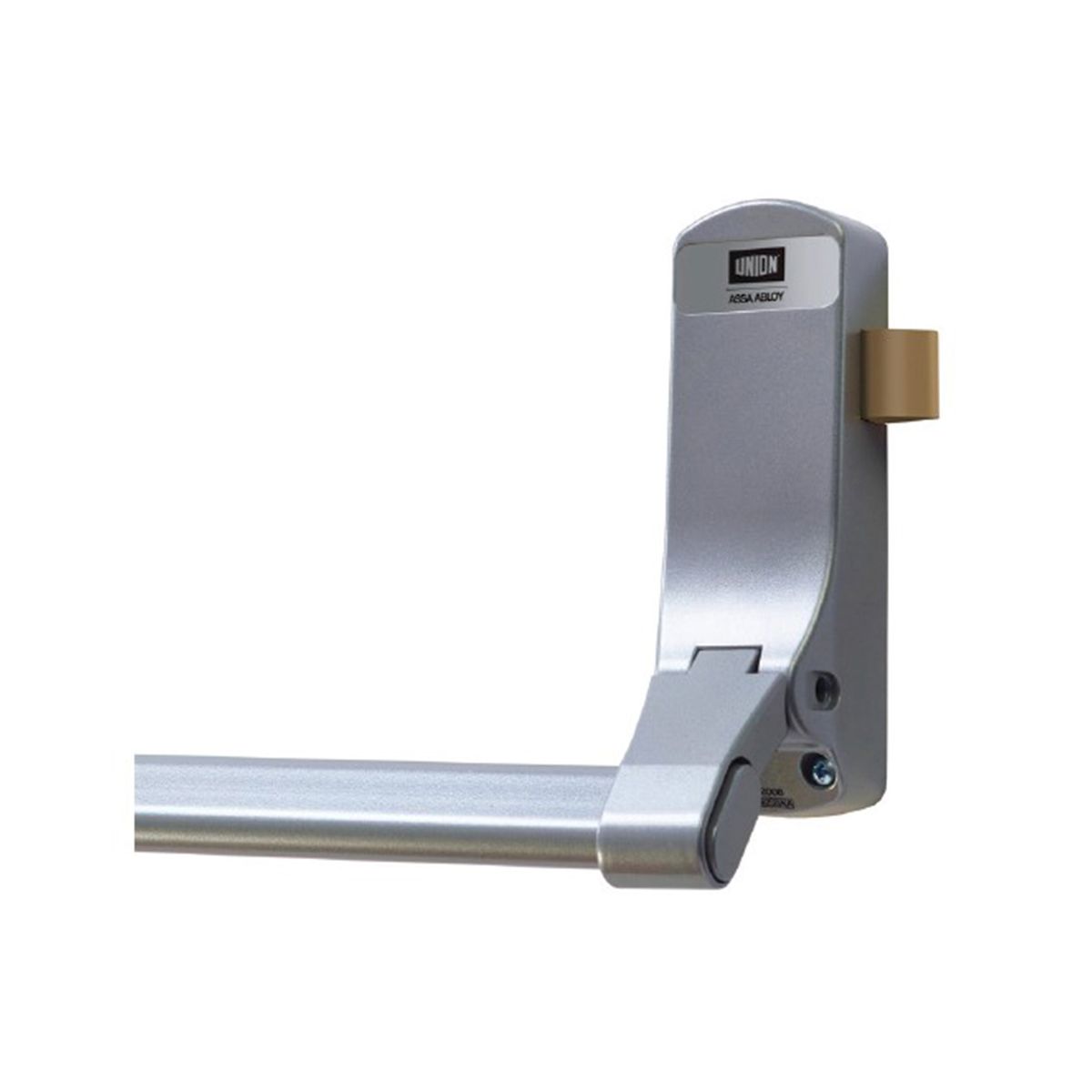

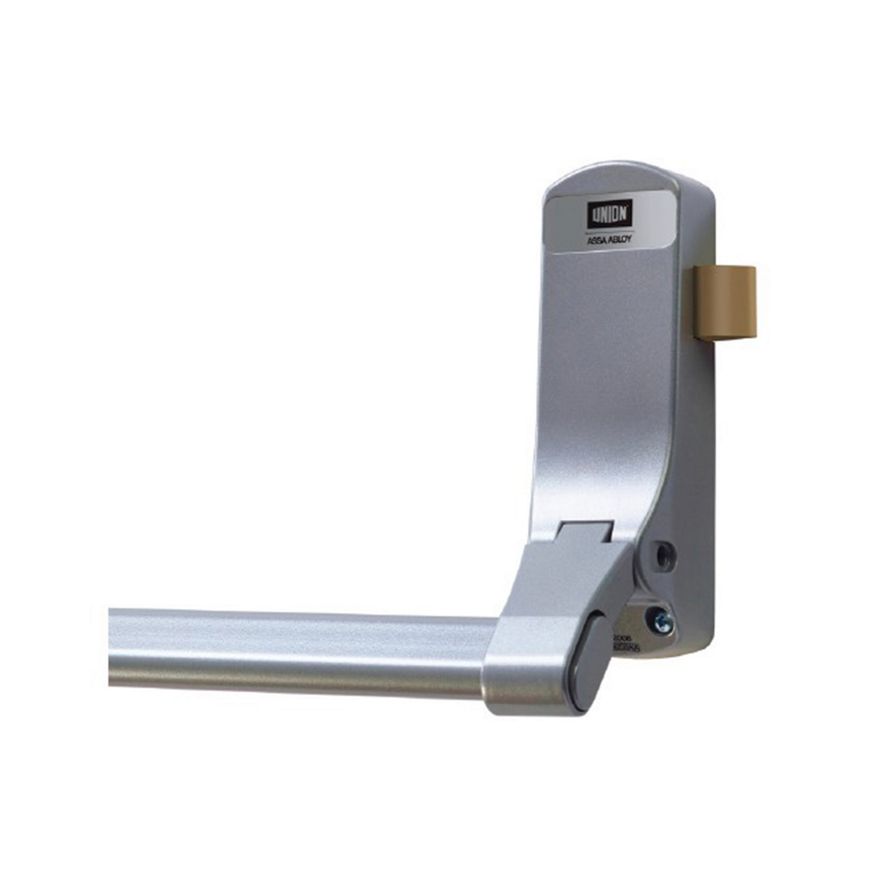

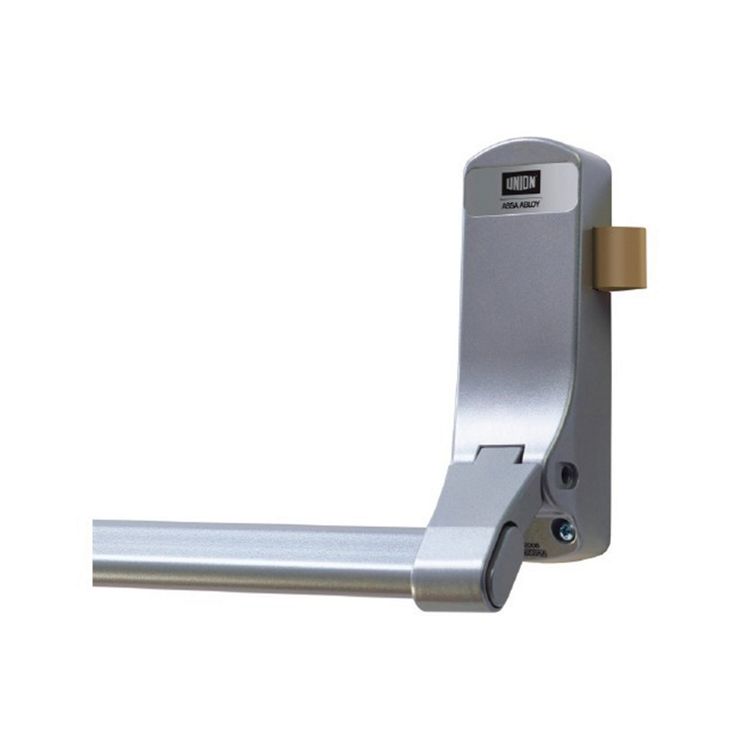

Variant 1

• UNION
• J-CE853PL-SIL (timber doors)
• J-CE853PM-SIL (metal doors)

Technical Attributes

• Single point lateral locking
• Suitable for timber (120min) and metal fire doors (240min)
• Manufactured in Britain
• 10 Year Guarantee
• 200,000 cycle durability
• Max. door width 1230mm
• Optional Outside Access Device:
• J-CE855OADK-SIL
• J-CE855OADL-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

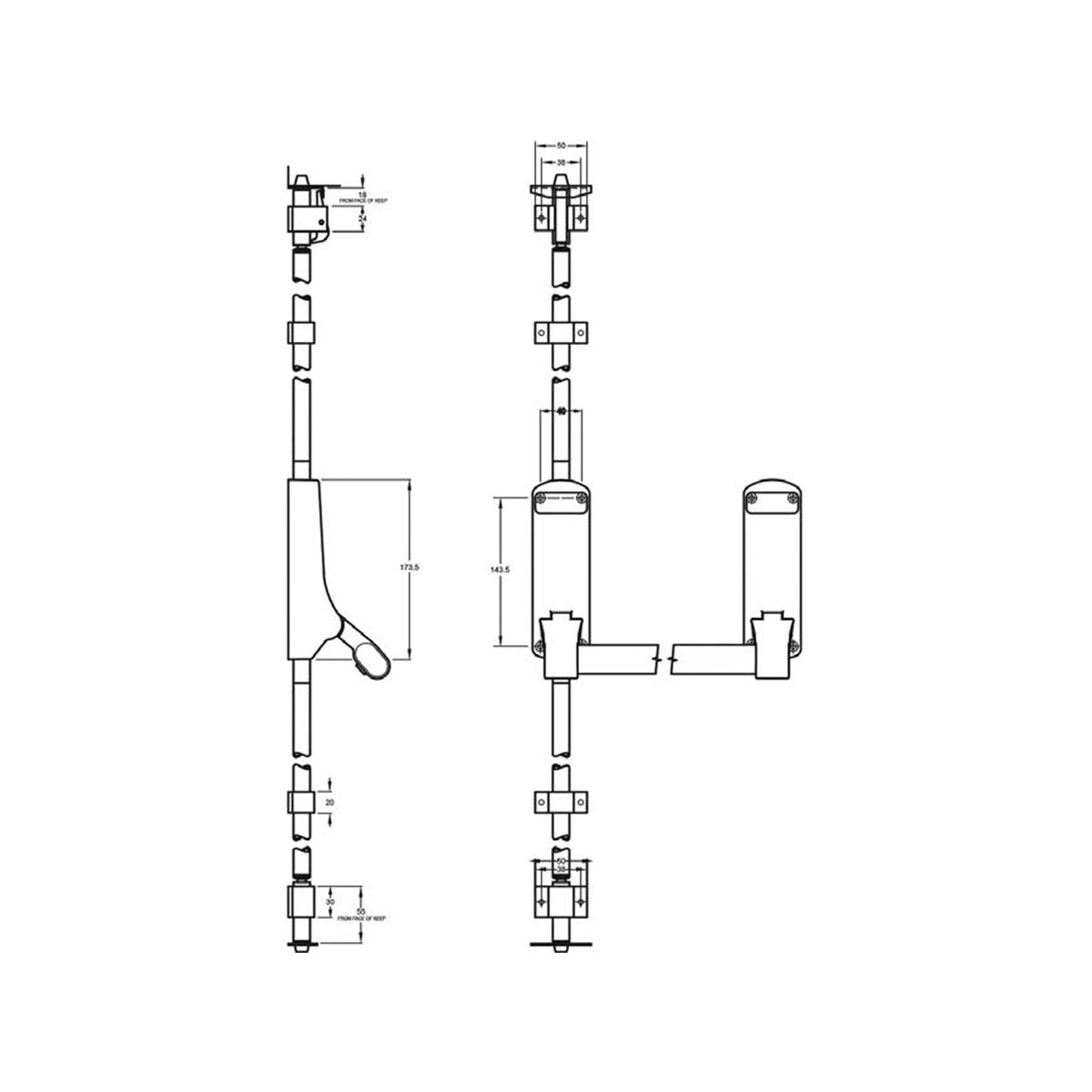

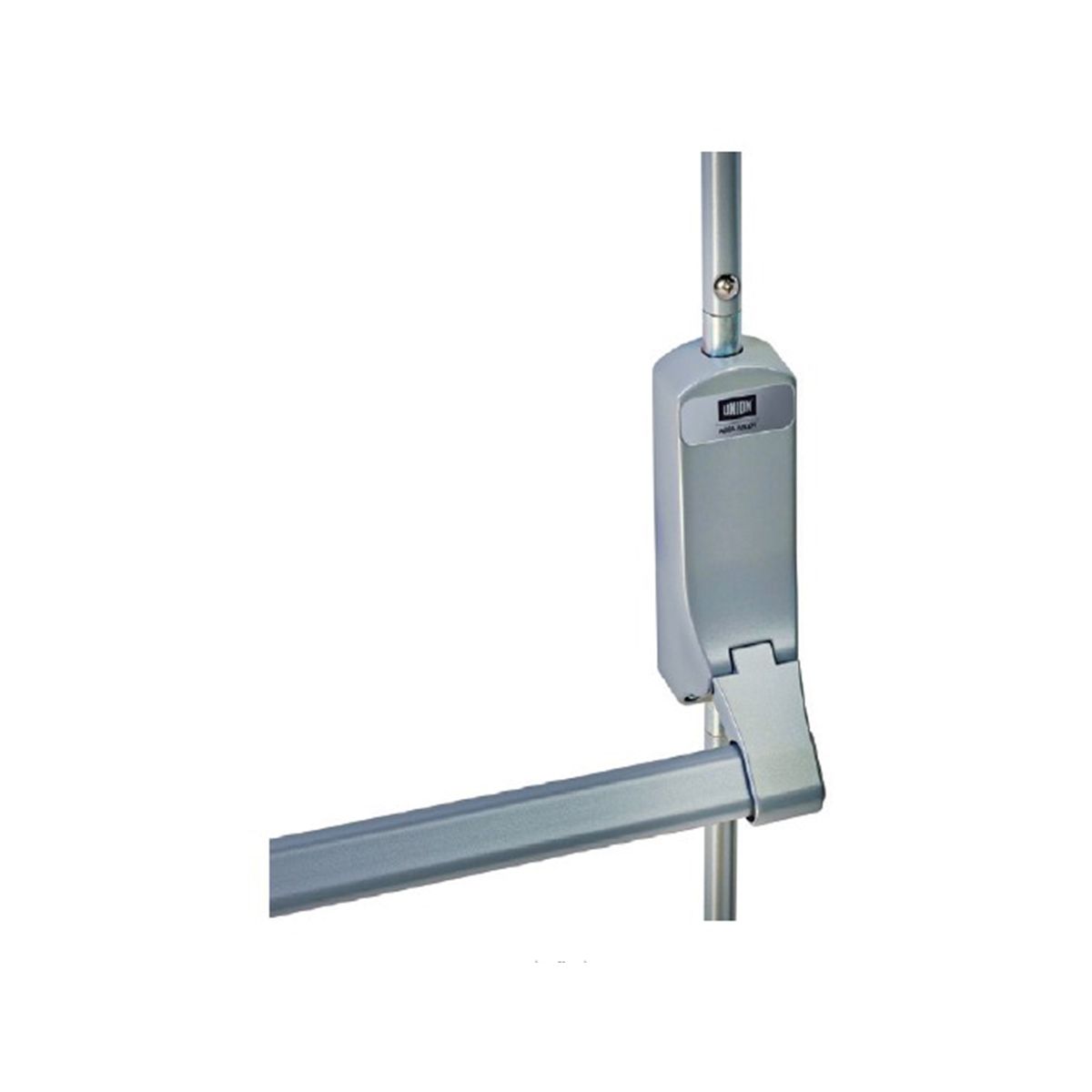

Variant 2

• UNION
• J-CE851PB-SIL (timber doors)
• J-CE851PBM-SIL (metal doors)

Technical Attributes

• Two-point top and bottom latching
• Suitable for timber (120min) and metal fire doors (240min)
• Suitable for non-rebated double doors (will require 2 units)
• Manufactured in Britain
• 10 Year Guarantee
• 200,000 cycle durability
• Max. door width 1230mm
• Max. door height 2440mm
• Optional Outside Access Device:
• -J-CE855OADL-SIL
• J-CE855OADK-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

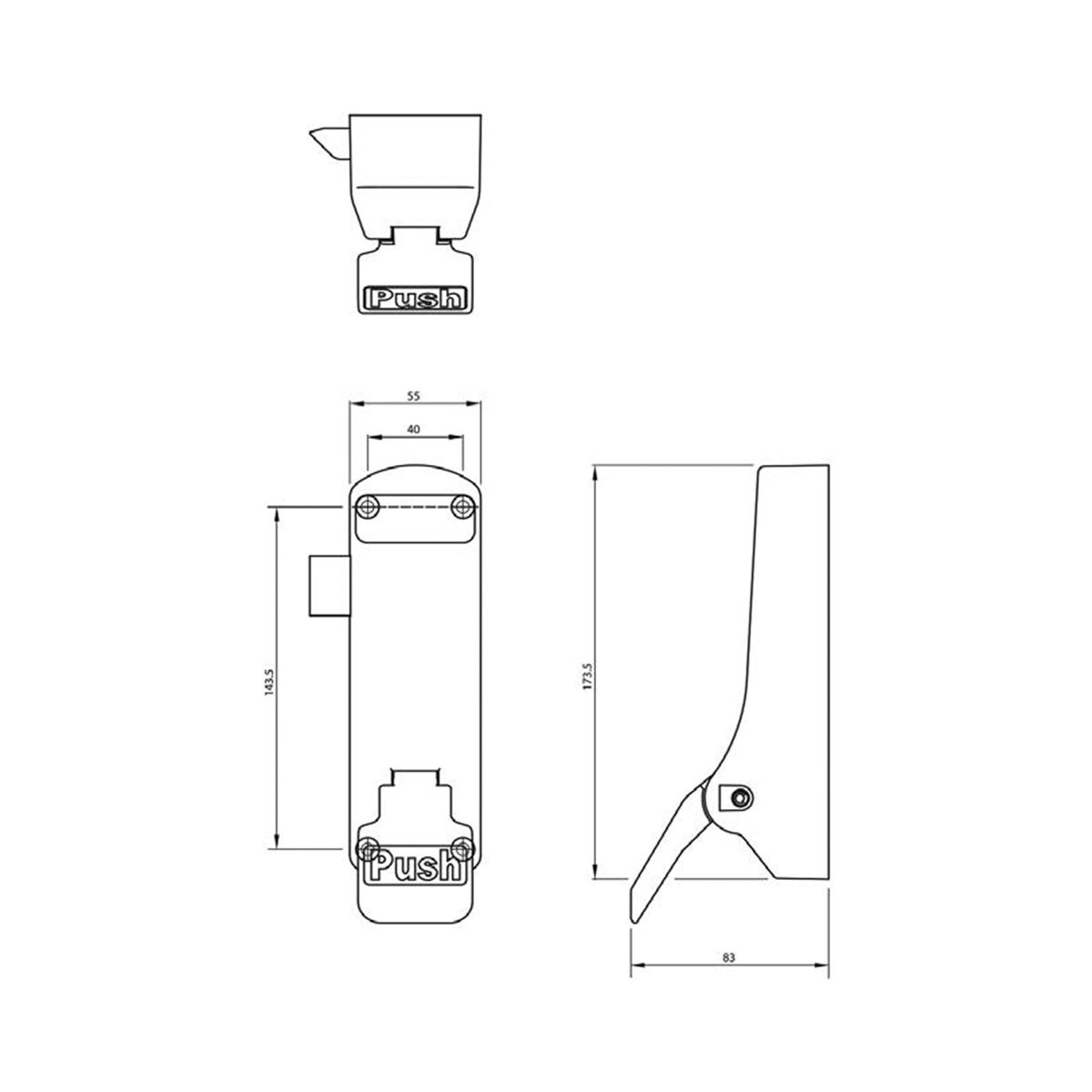

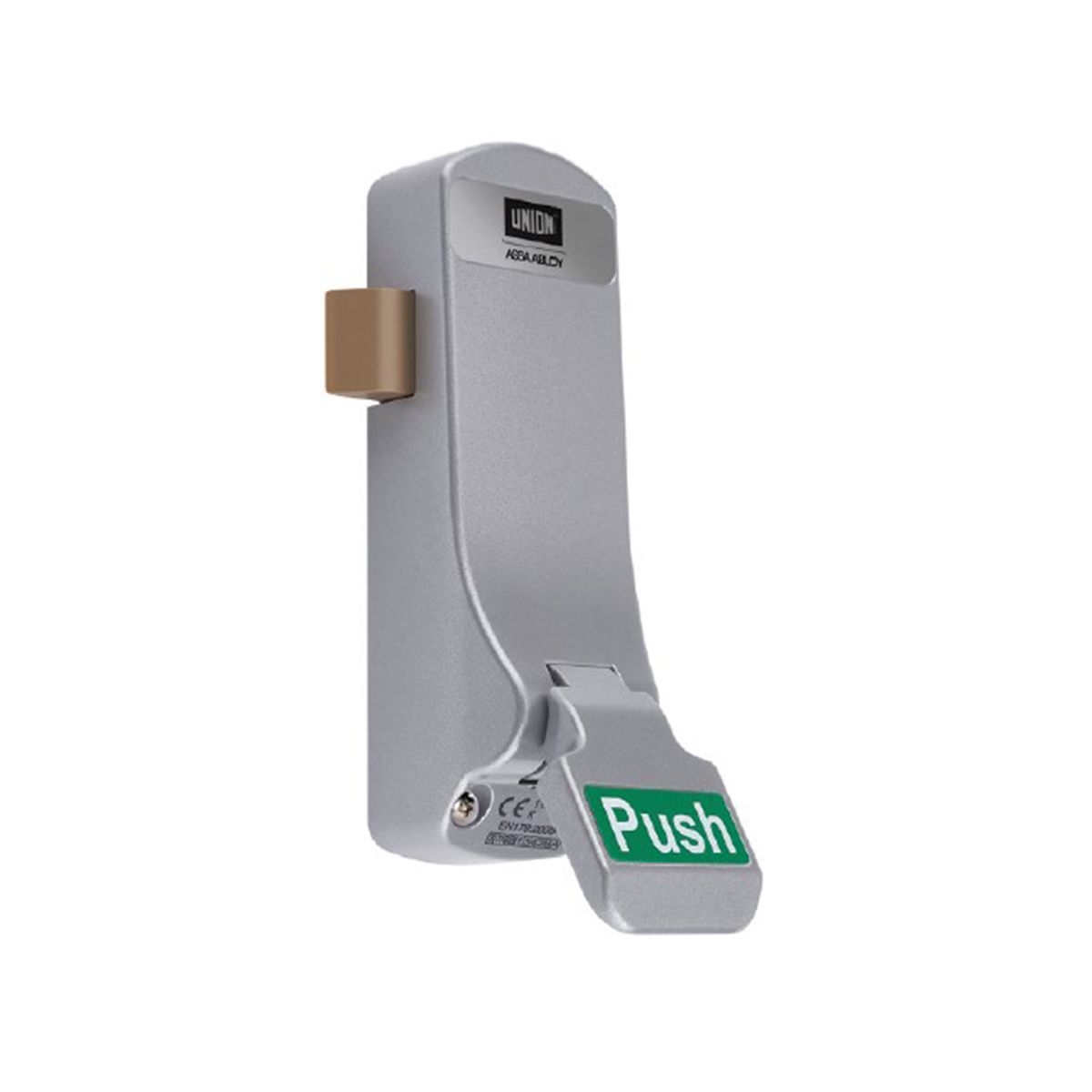

Variant 3

• UNION
• J-CE851PB-SIL (timber doors)
• J-CE851PBM-SIL (metal doors)

Technical Attributes

• Single point panic latch
• Suitable for timber (120min) and metal fire doors (240min)
• Suitable for internal escape route doors
• Manufactured in Britain
• 10 Year Guarantee
• 200,000 cycle durability
• Max. door width 1230mm
• Max. door height 2440mm
• Optional Outside Access Device:
• -J-CE855OADL-SIL
• J-CE855OADK-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 4 | 2 | B | B
