Rack & Pinion Door Closers
Products
DC120
Variations
- ASSA ABLOY-DC120
- EN 2/3/4
Technical Attributes
- Rack and pinion door closer with link arm
- Certified in compliance with EN 1154, size 2/3/4
- For single action doors up to 1100mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Closing force configurable
- Opening angle up to 180° (104° on EN4 mounting position)
DC135
Variations
- ASSA ABLOY-DC135
- EN 3
Technical Attributes
- Rack and pinion door closer with guide rail
- Certified in compliance with EN 1154, size 3
- For single action doors up to 950mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Closing force configurable
- Opening angle up to 180°
DC140
Variations
- ASSA ABLOY-DC140
- EN 2/3/4/5
Technical Attributes
- Rack and pinion door closer with link arm
- Certified in compliance with EN 1154, size 2/3/4/5
- For single action doors up to 1100mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Closing force configurable
- Opening angle up to 180°
DC200
Variations
- ASSA ABLOY-DC200
- ASSA ABLOY-DC200HO (hold-open)
- EN 2-4
Technical Attributes
- Rack and pinion door closer with link arm
- Certified in compliance with EN 1154, size 2-4
- For single action doors up to 1100mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle up to 180°
- Hold-open variant available
- Hold-open angle between 75° - 150°

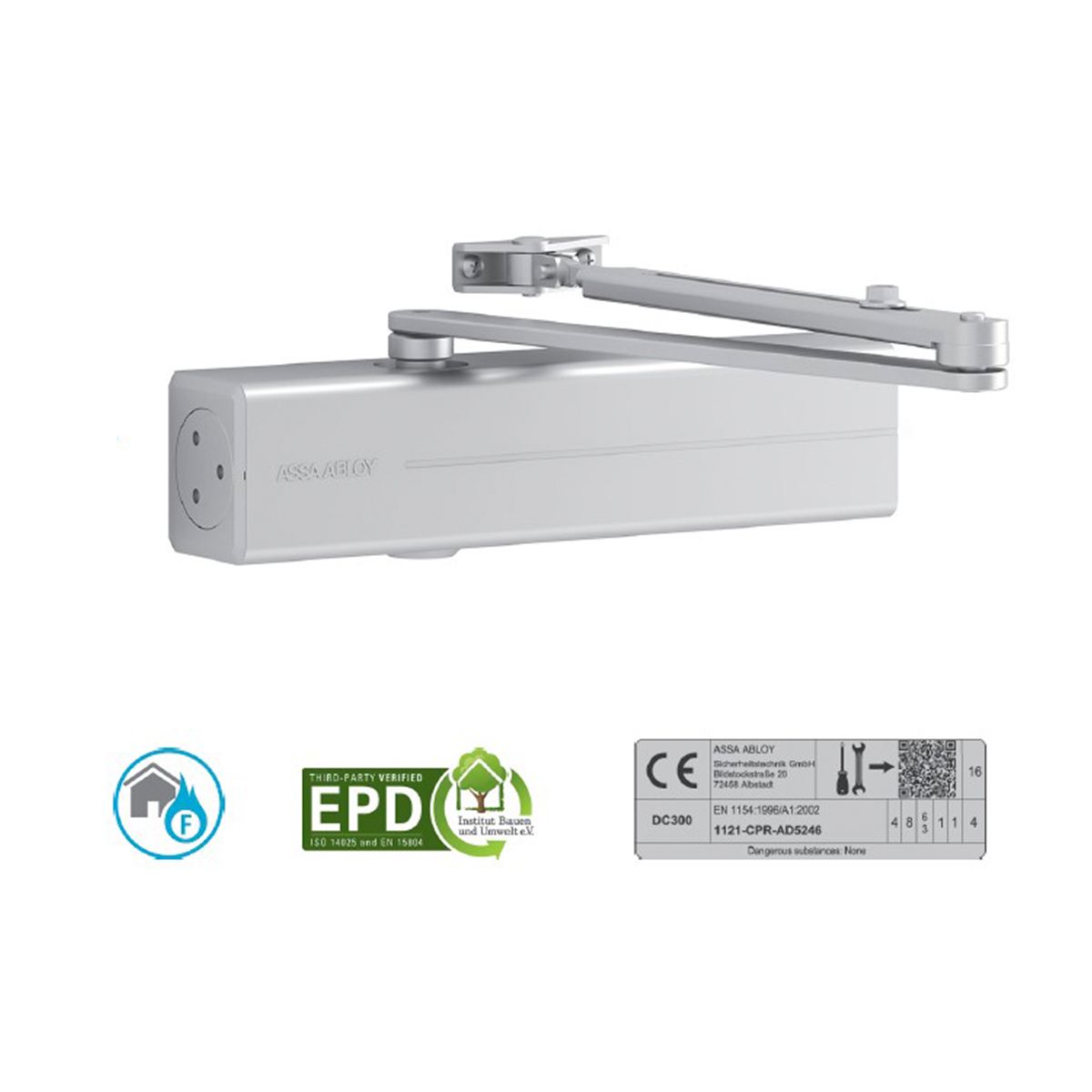

DC300
Variations
- ASSA ABLOY-DC300
- ASSA ABLOY-DC300DA (delayed action)
- ASSA ABLOY-DC300HO (hold-open)
- EN 3-6
Technical Attributes
- Rack and pinion door closer with link arm
- Certified in compliance with EN 1154, size 3-6
- For single action doors up to 1400mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle up to 180°
- Hold-open variant available
- Hold-open angle between 75° - 150°
- Delayed action variant available with adjustable delayed closing
DC300TANDEM
Variations
- ASSA ABLOY-DC300TANDEM
- EN > 7
Technical Attributes
- Rack and pinion door closer with link arm
- Two door closers interlinked for extra wide and heavy doors
- Double closing torque of DC300, EN size > 7
- For single action doors up to 1800mm wide
- Can be used on left and right-handed doors
- Suitable for fire and smoke protection doors
- Adjustable closing speed, latching speed and backcheck
- Variable adjustable closing force
- Opening angle up to 180°
Showing 6 of 6
