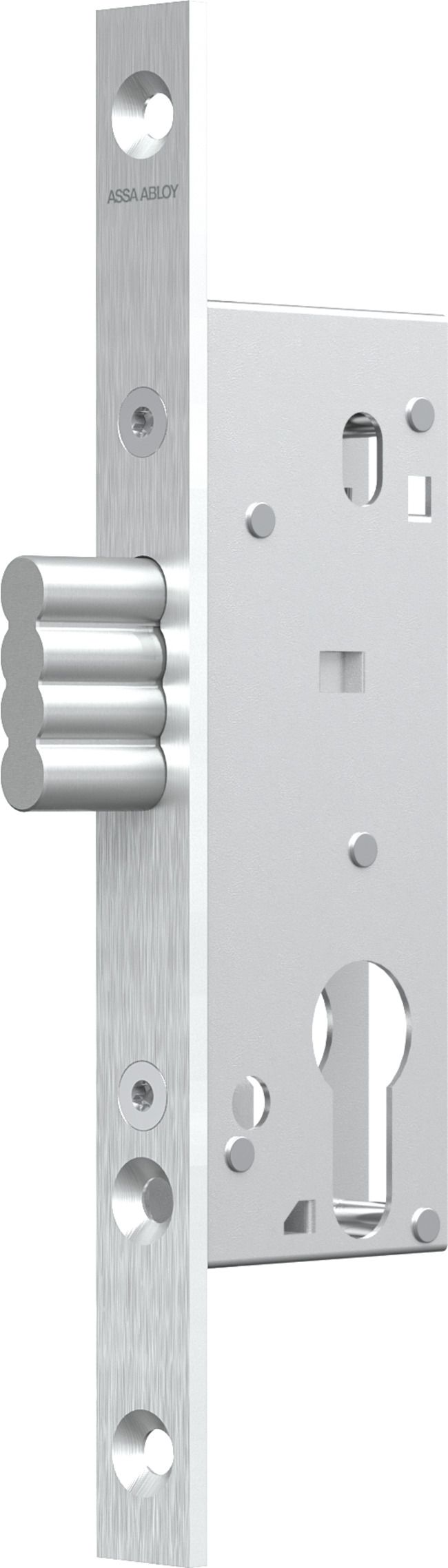

Deadbolt lock N1503

Product description

• OneSystem deadbolt lock N1503 for single-leaf doors, product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific Parameters.

Features

• Environmental product declaration (EPD) in accordance with EN 15804
• Tested for 1,000,000 cycles and 300 kg door weight
• Compliance with EN 12209
• Small rear backset 15 mm
• Continuous screw connection of fittings
• Suitable espagnolette integrated in the striking plate
• 20 mm bolt throw with a single rotation
• Also available as a fire protection version
• Latch DIN left/right reversible without tools
• Closed lock case at the top and bottom
• Stainless steel faceplate
• Security fittings and oval roses can be screwed on through the lock
• Deadbolt with anti-tampering design
• Developed for Euro profile cylinder and Swiss round Profile cylinder
