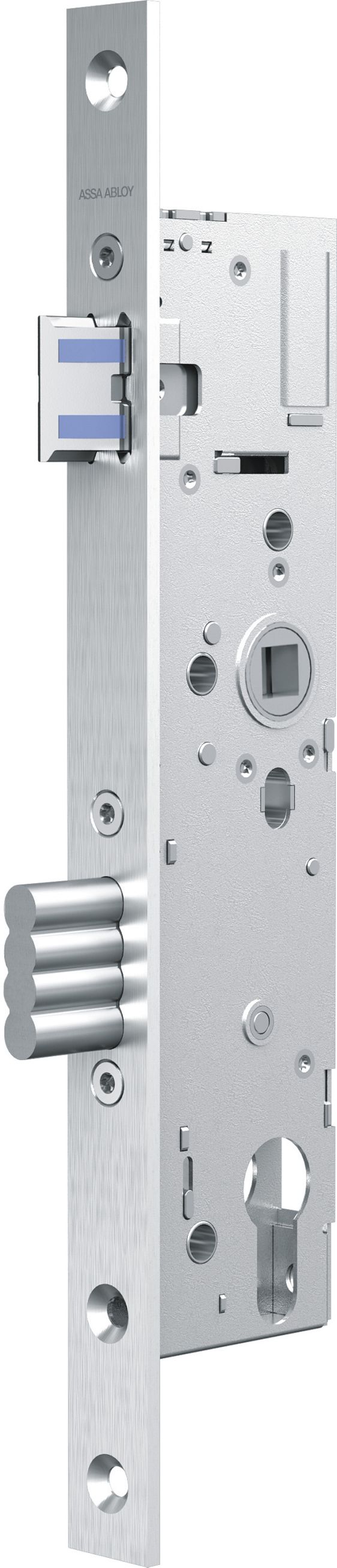

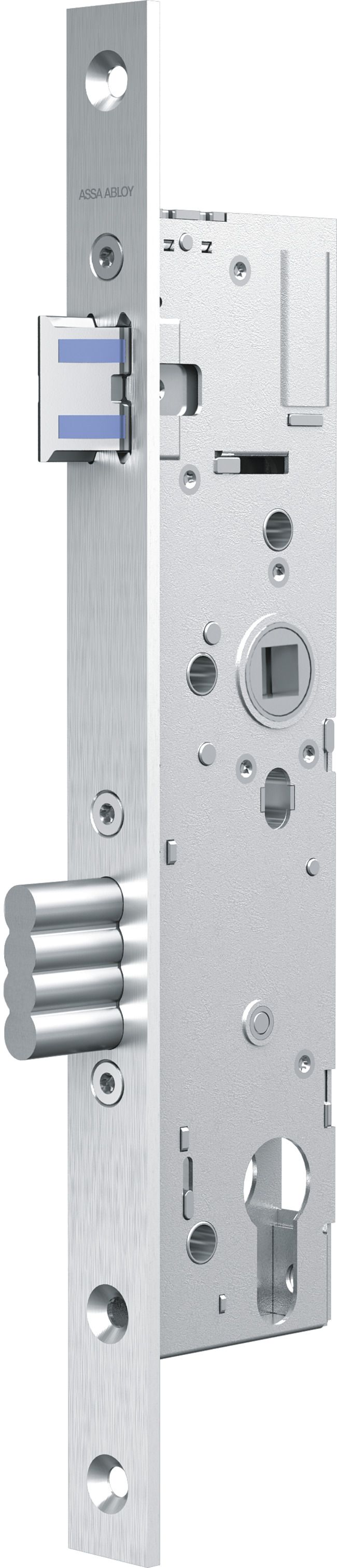

OneSystem panic lock N16XX according to EN 179 and EN 1125 for narrow stile doors. Approved for fire barriers according to EN 1634 / product-specific environmental product declaration (EPD) according to EN 15804 with article-specific parameters / tested for 1,000,000 cycles and 300 kg door weight.
Features
Serie variants are: N1600,N1601,N1602,N1603,N1604,N1605,N1606,N1607,N1608,N1609,N1610, N1611,N1612,N1613,N1614,N1615,N1616,N1620.
Environmental product declaration (EPD) in accordance with EN 15804
Tested for 1,000,000 cycles and 300 kg door weight
Compliance with EN 179/EN 1125, EN 12209
Small rear backset 15 mm
Panic function inwards/outwards switchable
Optional: Bus system with integrated monitoring sensors and simplified connection via 5-wire cable
Closed lock case
Latch, reversible between DIN left and right in new design for greater strength and with integrated noise reduction
Security fittings and oval roses can be screwed on through the lock
Deadbolt with anti-tampering design
Optional: Bus System with integrated monitoring function
Developed for Euro profile cylinder and Swiss round Profile cylinder
