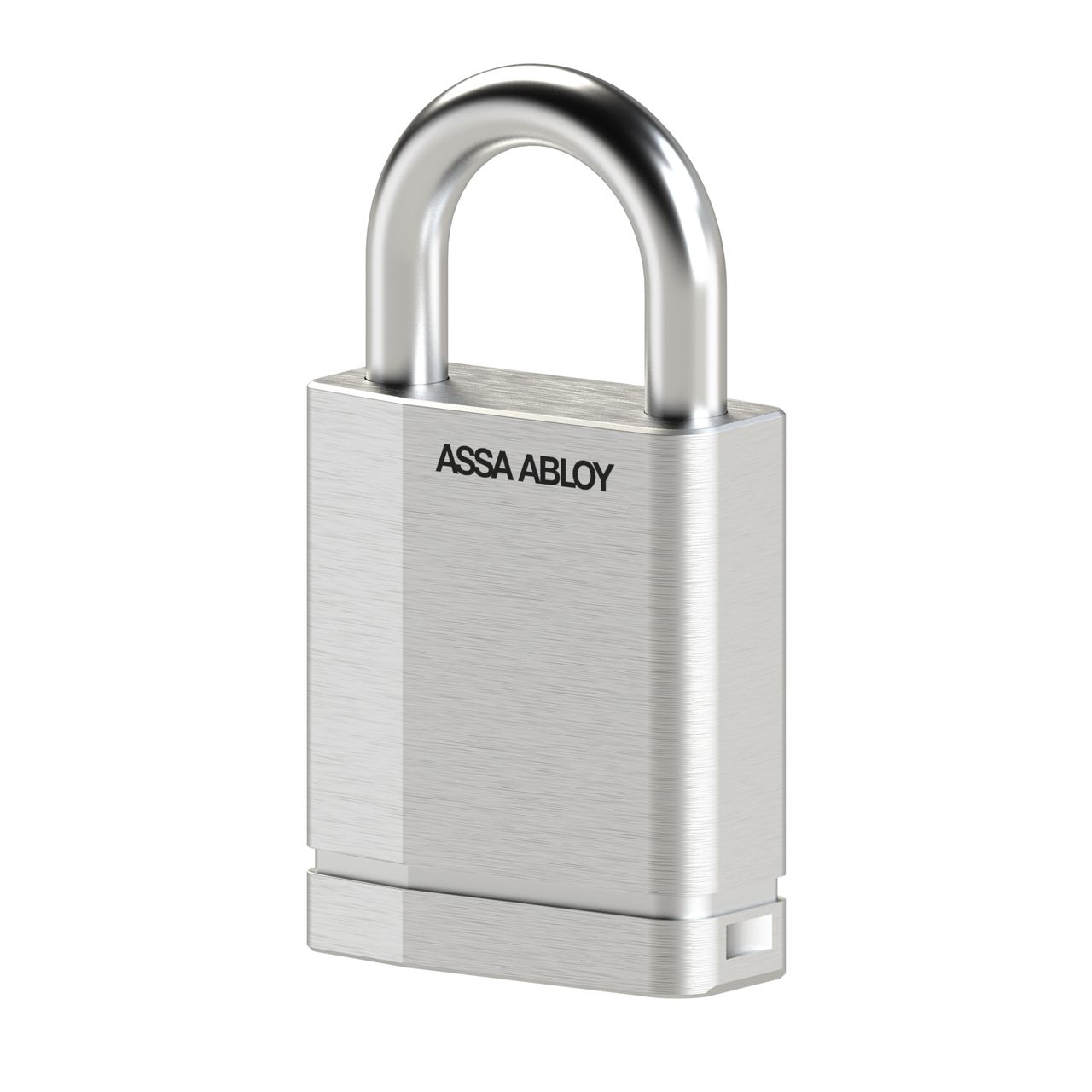

    CYS10 Padlock

    A trusted, robust padlock for multiple applications, inside or outdoors. Suitable for sheds, gates, fences, lockers, storage boxes, bike chains, and more.

    When in the unlocked position, the CYS10 Padlock retains the key to prevent your possessions being left at risk.

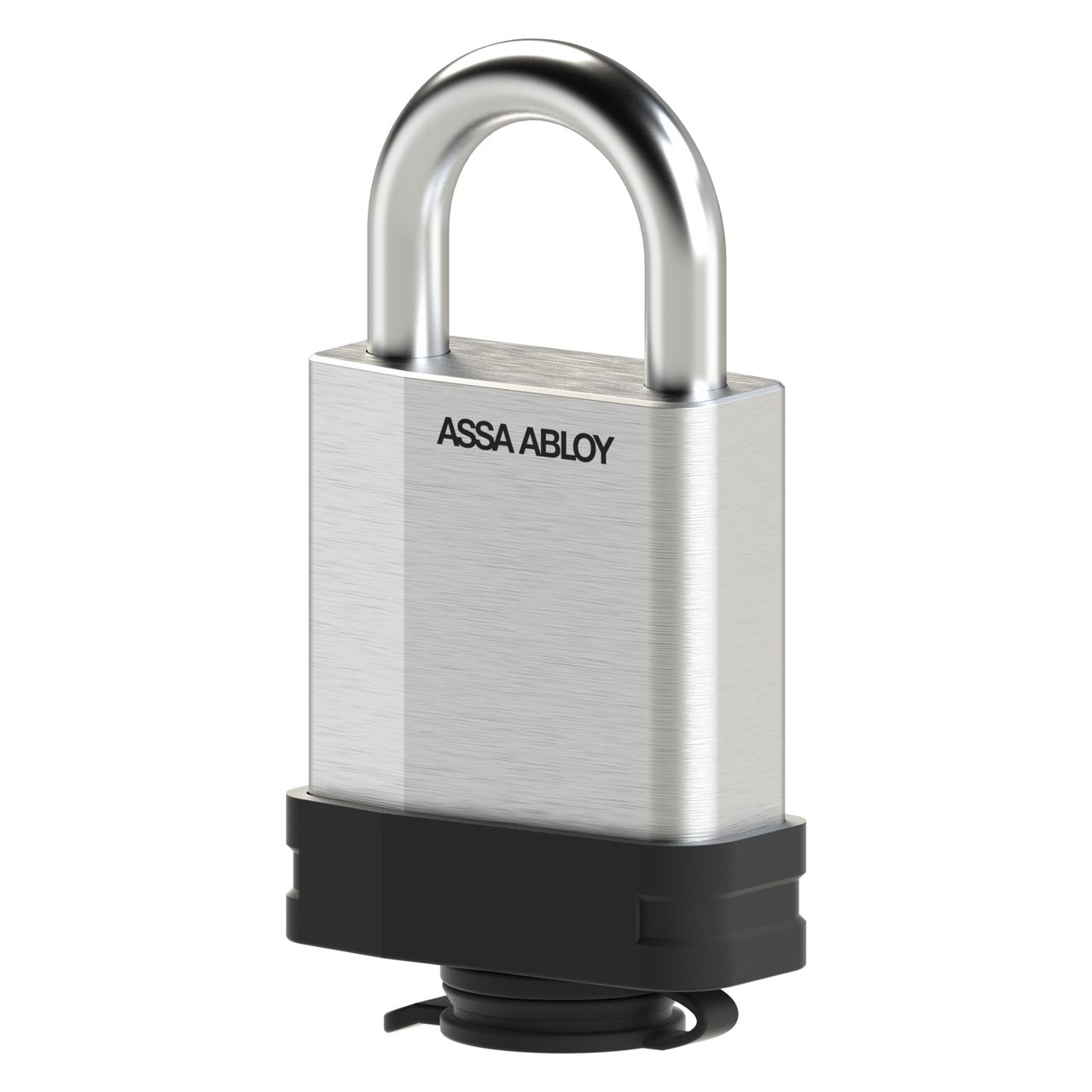

    The optional dust cover increases corrosion resistance to 480 hours.


    Applications:

    • Indoor and outdoor locking points
    • Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)



    Optional functionality:

    • Dust cover (480 hours salt spray test conformance)
    • 25 mm Stainless Steel shackle
    • Non key retaining

    1 of 2

    • Datasheet
    • AA_ CYS10_Padlock_Datasheet_07_2022_ENG_ EMEIA(PDF, 187 KB)
    • Technical Drawings
    • AA_CYS10_Padlock_Drawing(PDF, 100 KB)
    • AA_CYS10_Padlock-with-Cover_Drawing(PDF, 104 KB)
    FeatureDetail
    Security EN 12320:2012 tested – grade 3
    Attack resistanceAnti-pick | Anti-bump (for MKS consult your master key specialist)
    Number of keysMKS and KA: according to order | KD: 3
    Max. number of effective key differs144,729
    Max. number of MKS profiles63
    Number of pins6
    Raw materialBody: Brass | Shackle: Hardened Boron Steel
    FinishSatin Nickel
    Body dimensionsWidth: 48 mm | Length: 56 mm | Thickness: 20 mm
    Shackle diameter8 mm
    Shackle clearance25 mm | 50 mm | 75 mm
    Weight 450 g (25 mm shackle clearance)
