AHW500UU00

Description:

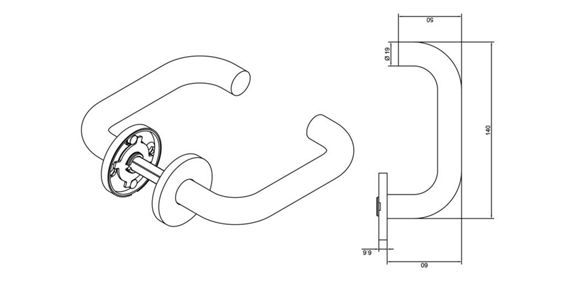

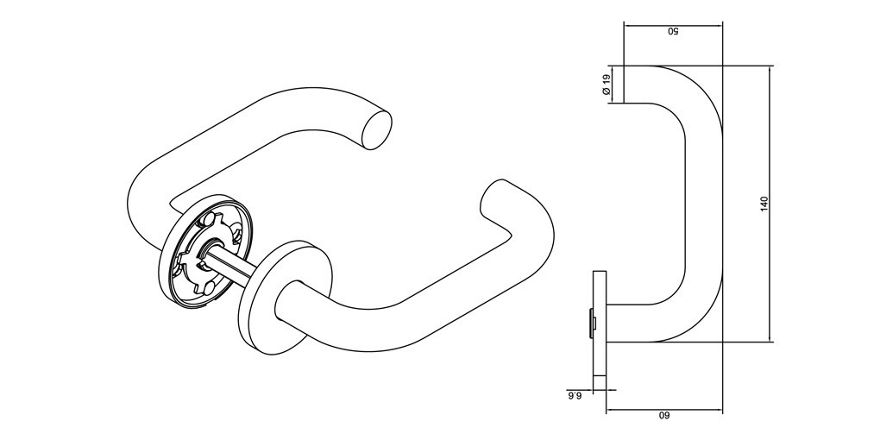

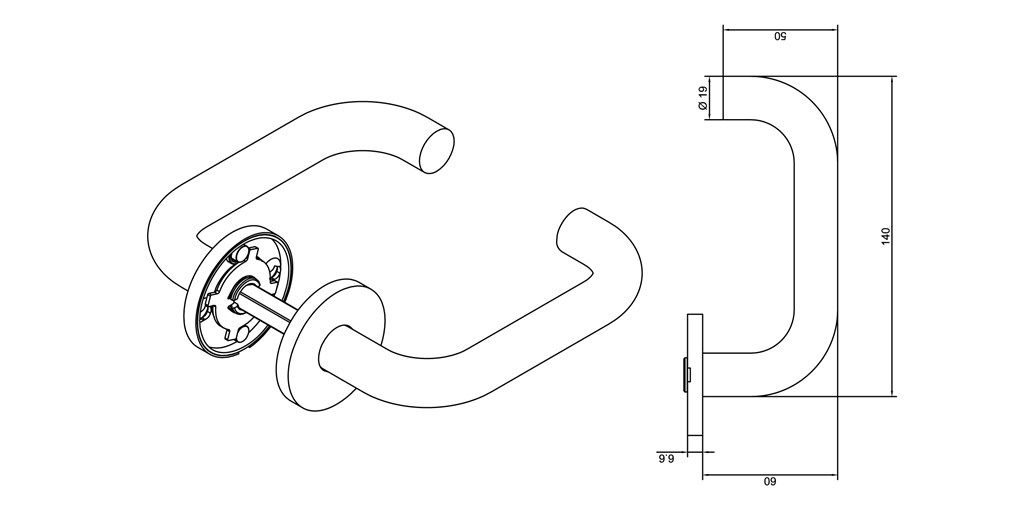

ASSA ABLOY Set of U shape handle on round rosette

Characteristics:

• Lever on round rose
• Dimensions: Length - 140mm
• Spindle: 8mm x 8mm straight spindle standard
• Circlips on rose with inner spring,
• Round Rose: Ø53mm x 6.6mm
• 8 mm HESO spindle with a selfdrilling M6 screws
• Stainless steel AISI 304 tube
• U shaped door handle ø19mm
• Mounting points distance 38 mm
• 200 000 cycles
