DC347

Description:

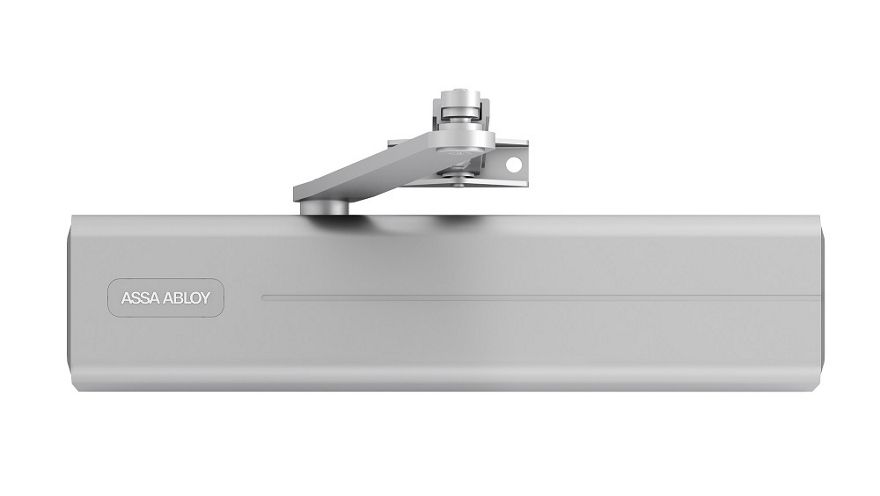

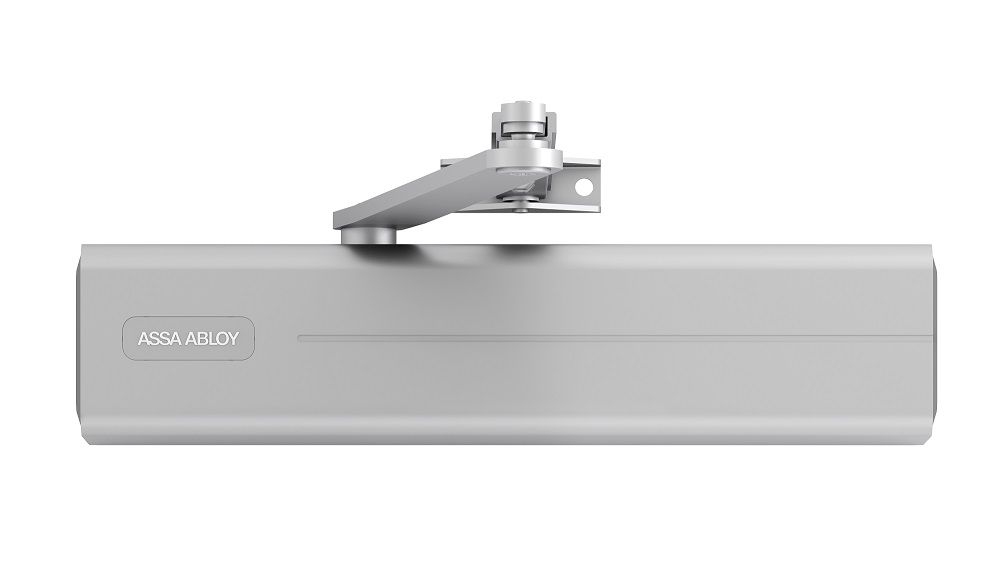

ASSA ABLOY DC 347

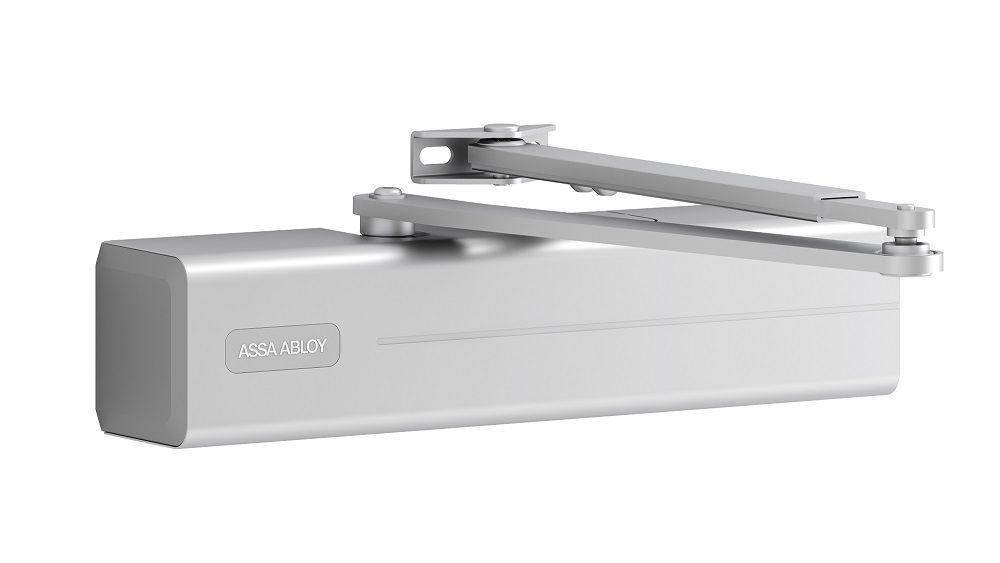

• Rack and pinion door closer with extra strong link arm L197
• Certified in compliance with EN 1154, size 5 - 7
• Suitable for fire and smoke protection doors
• For single action doors up to 1600 mm wide

Characteristics

• For single action doors up to 1600 mm wide
• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right handed doors
• Axis height-adjustable up to 14 mm
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 180°
• For heavy door applications
• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005
• Customised finishes available on request
