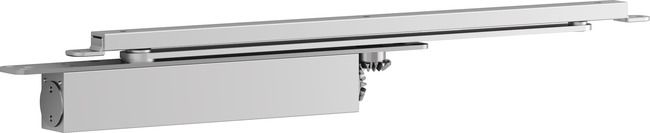

DC840

Product description

• Concealed door closer with Cam-Motion^® technology and small standard concealed guide rail G892
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Certified in compliance with EN 1154, size 1-4
• Suitable for fire and smoke protection doors
• For single action doors up to 1100 mm wide

Characteristics Concealed door closer with Cam-Motion^® technology and small standard concealed guide rail G892

• Can be used for left and right-handed doors
• Closing speed and latching speed adjustable from top facing regulating valves
• Built-in backcheck
• Thermodynamic valves for consistent performance
• Opening angle up to 120°
• Large range of applications
• Versions with 4 mm and 8 mm spindle extensions
• Standard colours: silver EV1

Characteristics of standard guide rail G892

• Small size guide rail, can be used with hold-open device and opening damper
• For standard applications
