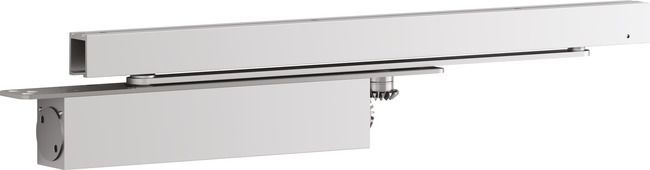

DC860 G880
Product description
- Concealed door closer with Cam-Motion® technology and guide rail with electro-mechanical hold-open device for single leaf doors
- Guide rail is certified in compliance with EN1155, size 3-6
- Closer is certified in compliance with EN1154, size 1-5
- Fulfils barrier-free building requirements (EA / CEN TR 15894)
- Suitable for fire and smoke protection doors
- For single action doors up to 1250 mm wide
- DIBt approval with different smoke detection systems
Characteristics Concealed door closer with Cam-Motion® technology and guide rail with electro-mechanical hold-open device for single leaf doors
- Concealed electro-mechanical hold-open device
- Continuously adjustable holding force
- Can be used for left and right-handed doors
- Closing speed and latching speed adjustable from top facing regulating valves
- Hold-open angle continuously adjustable between 80°- 120°
- Built-in backcheck
- Thermodynamic valves for consistent performance
- Large range of applications
- Versions with 4 mm and 8 mm spindle extensions
- Standard colours: silver EV1
- Customised finishes available on request
