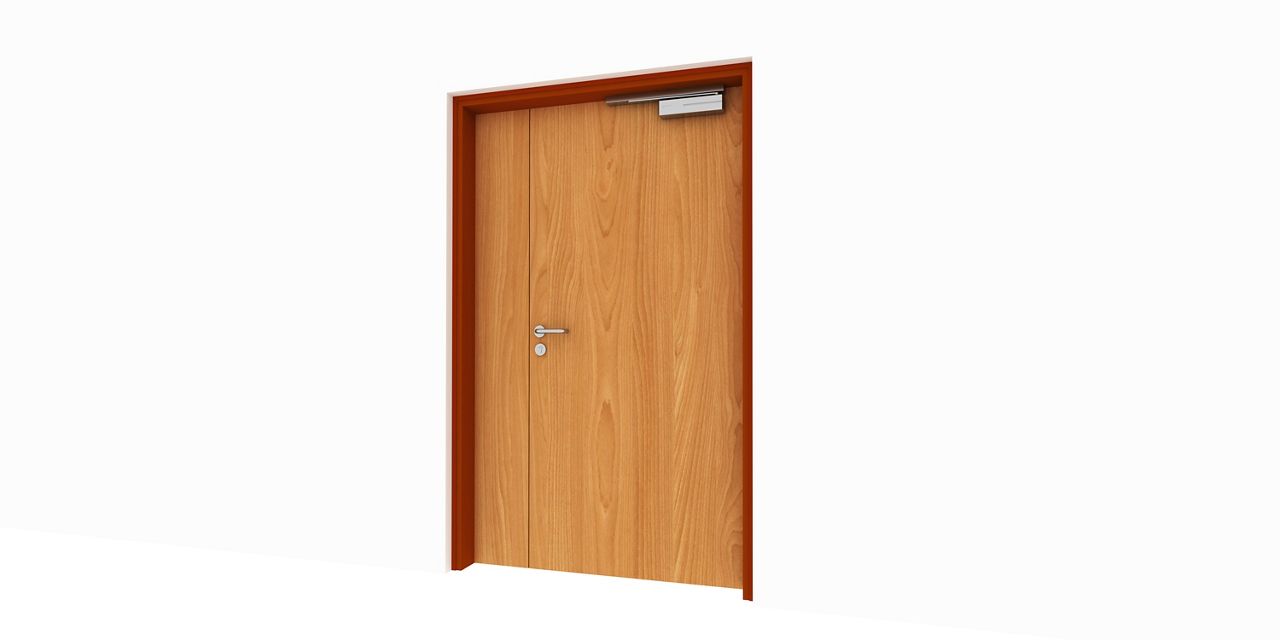

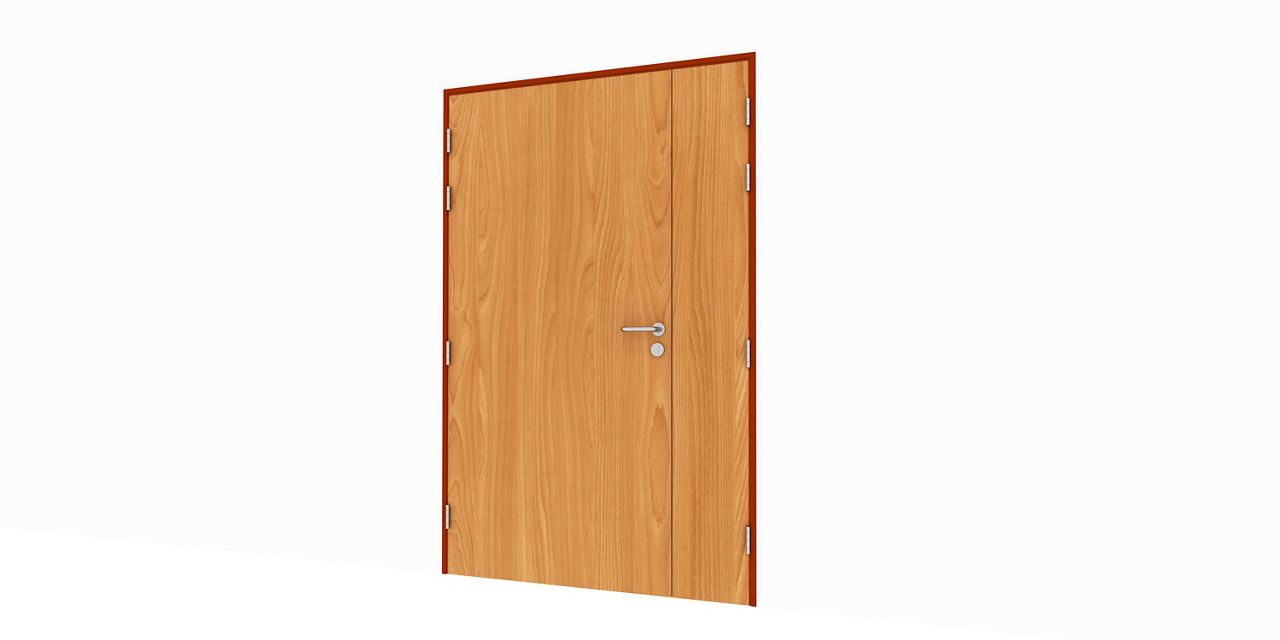

Wooden Doorset, Non-Fire Rated Door - Double

ASSA ABLOY Security Solutions Middle East Double Leaf Non-Fire rated doorset for a Wooden Door Equipped with flush bolt, dust proof strike, mortice sash lock, lever handle and master keyed cylinder, and Cam Action door closer..


1 of 3

Characteristics

Size of 2000mm x 2200mm
Double leaf
Doorframes are made of Solid wood / Steel
Door Leaf is of Chip Board core with Hardwood Lipping
Door Frame in PU Paint & Leaf with HPL / PU Paint

Performance

Increased finish performance for water resistance
Usage: Internal

Safety

Finger guard option

Sustainability

Complies to the Green Building Requirement
FSC sourced wood
Manufactured under ISO 9001:2015 certification

Hardware Set:

Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
Lever Handle, standard: BS EN1906 Grade 3.
MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1 EN)
Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
Flush bolt
Dust proof strike
Door stop, floor mounted
Gasketing.

Typical applications: Retail, Hospitals, schools, Health Care and others.

Compatible Standards: BS 1245-2012, BS 476 Part 22, BS EN1935, BS EN1154, BS EN1125, BS EN 1303.
