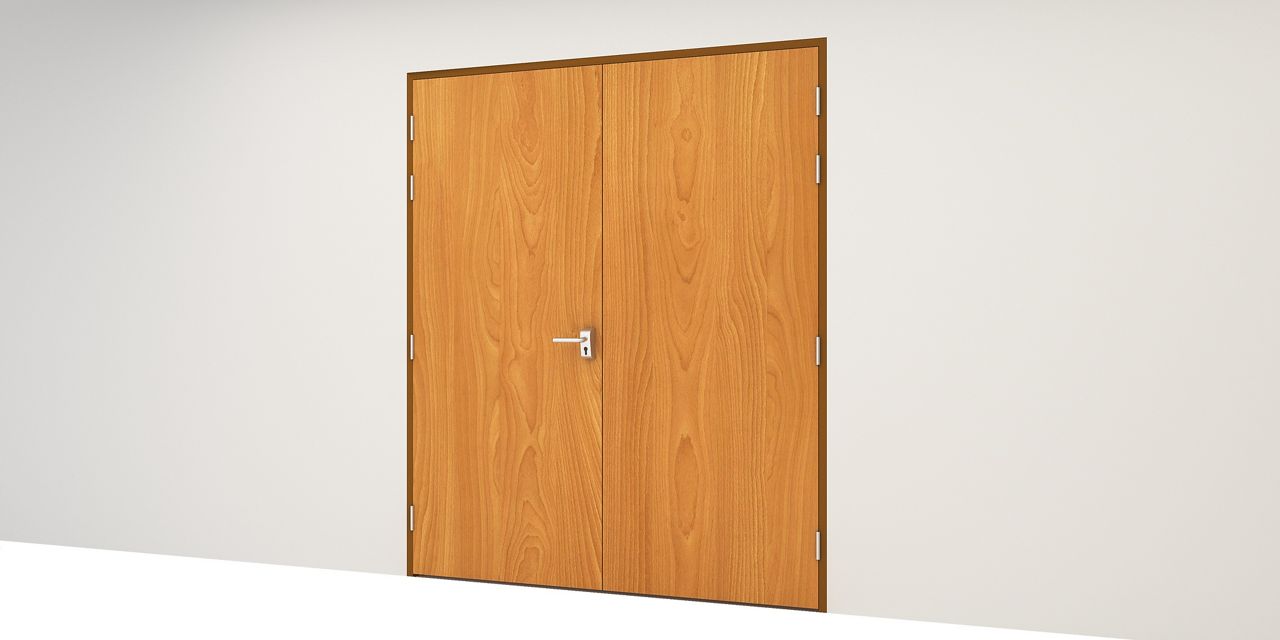

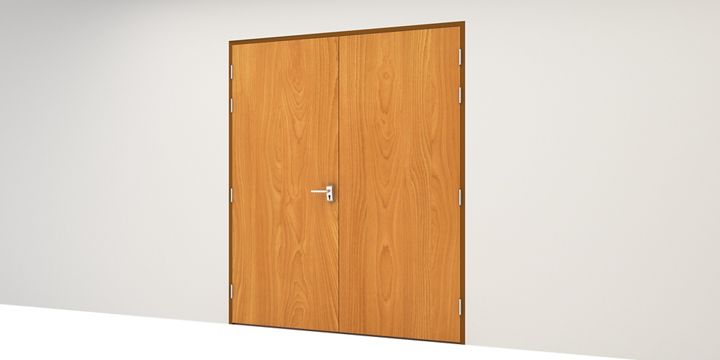

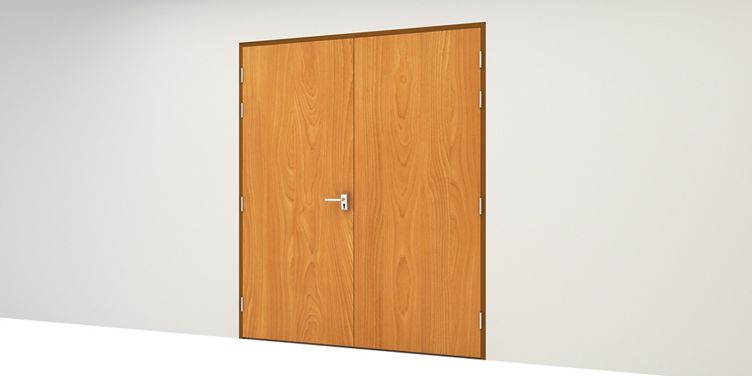

Wooden Doorset Corridor Exit Door-Double

ASSA ABLOY Opening Solutions Middle East solution for a corridor double leaf wooden door. Equipped with fire rated panic exit device, panic vertical lock kit and concealed door closer with Cam-Motion^®.

1 of 3

Characteristics

Full range of sizes
Noise insulation properties 32dB
Door Leaf is of Chip board core/Hardwood Lipping
Door frames are made of solid wood or steel
Door leaf and frame in PU paint (HPL Option available for Leaf)

Performance

BS approval
Resistance to sound transmission and acts like a sound barrier
Acoustic rating available up to 32dB
Usage: Internal

Safety

Fire rating up to BS 90 min
Finger guard option

Sustainability

Complies to the Green Building Requirement
FSC sourced wood / wood composite materials
Manufactured under ISO 9001:2015 certification

Hardware Set:

Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
Panic touch bar with surface vertical rod exit device, Standard: BS EN 1125:2008, BS EN 1634. CE Marked. (EPD-ASA-20150160-IBA1-EN)
Panic touch bar, Standard: BS EN 1125:2008, BS EN 1634. CE Marked. (EPD-ASA-20150160-IBA1-EN)
Outside Access Device with European Cylinder Hole, Lever outside.
Half cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
Concealed door closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150227-IBA1-EN )
Floor mounted door stop.
Self-adhesive perimeter silicone seal, compression type, with a pair of meeting stile astragal
Intumescent seal.

Typical applications: Double leaf corridor area in school, health care, residential, commercial buildings.

Compatible Standards: BS EN1935, BS EN1154, BS EN1125, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1.
