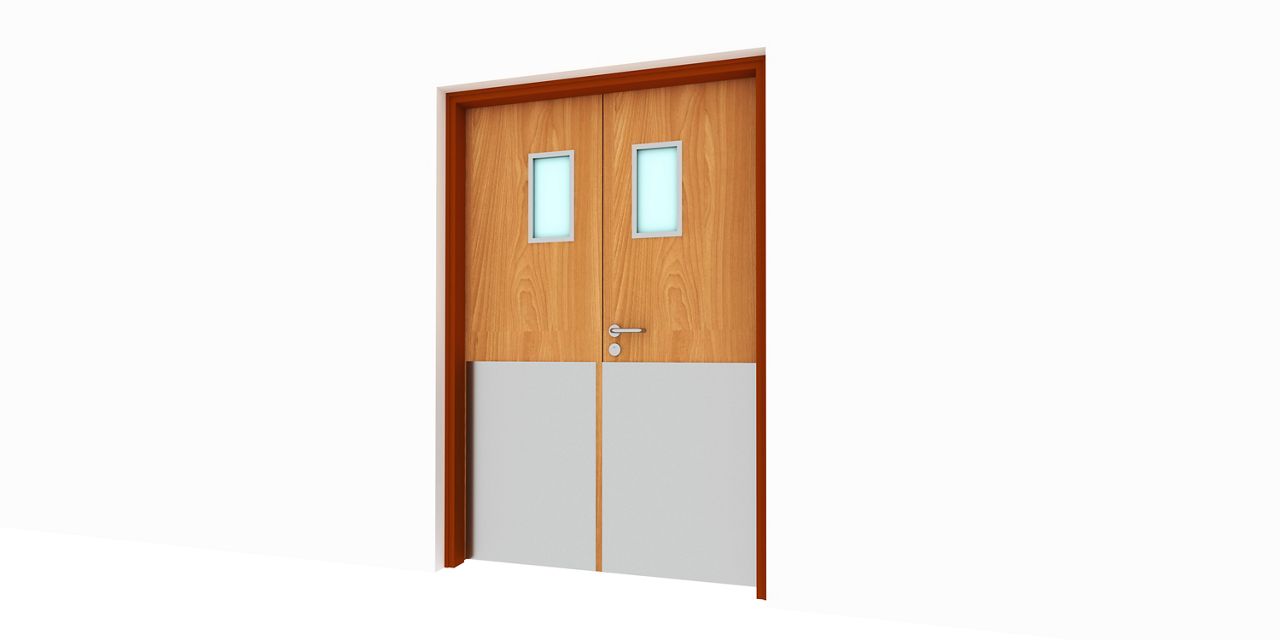

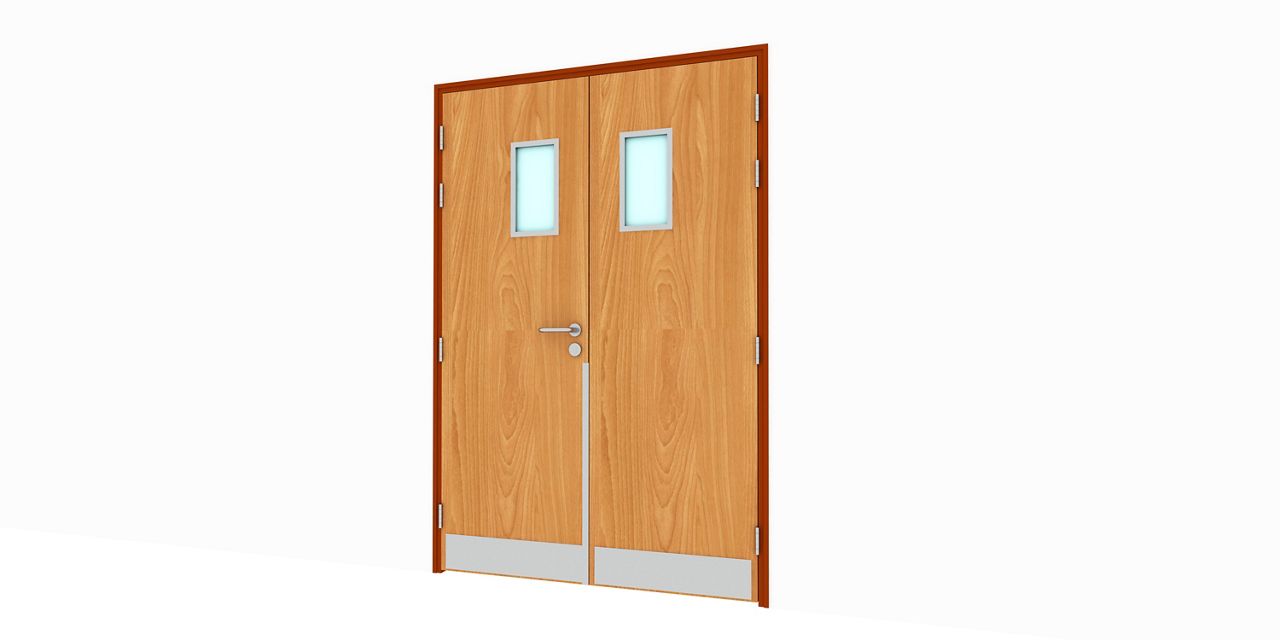

Wooden Doorset Corridor Double Leaf Door - Double

ASSA ABLOY Security Solutions Middle East Double Leaf Fire rated doorset for a Corridor double leaf door Equipped with flush bolt, dust proof strike, mortice sash lock, lever handle and master keyed cylinder, coordinator and Concealed door closer.

1 of 3

Characteristics

Size of 2000mm x 2200mm
Double leaf
Doorframes are made of Solid wood / Steel.
Door Leaf is of Chip Board core with Hardwood Lipping
Door Frame in PU Paint & Leaf with HPL / PU Paint

Performance

BS approval
Increased finish performance for water resistance
Acoustic rating available up to 38dB
Usage: Internal

Safety

Fire rating up to BS 90 min
Finger guard option

Sustainability

Complies to the Green Building Requirement
FSC sourced wood
Manufactured under ISO 9001:2008 certification

Hardware Set:

Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
Lever Handle, standard: BS EN1906 Grade 3.
MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
Concealed door closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150227-IBA1-EN )
Flush bolt
Dust proof strike
Armour Plate
Mop Plate
Door stop, floor mounted
Gasketing
Intumascent Seals.

Typical applications: Hospitals, clinics, Commercial buildings, hospitals, school, hotels.

Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN1906, BS EN 1303.
