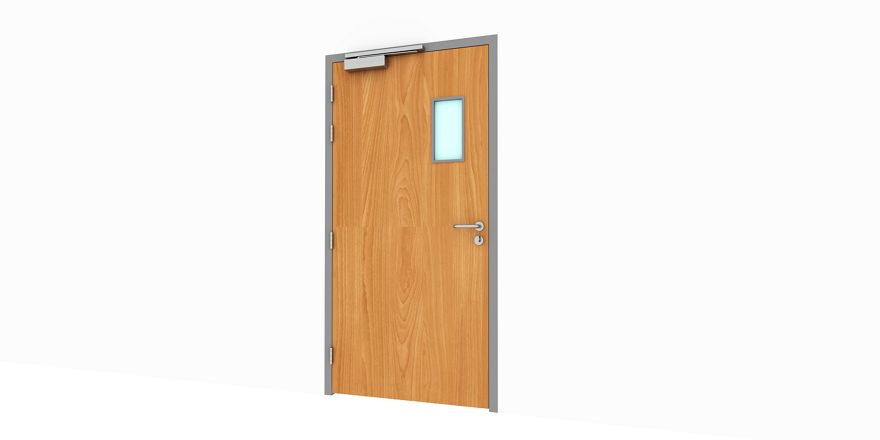

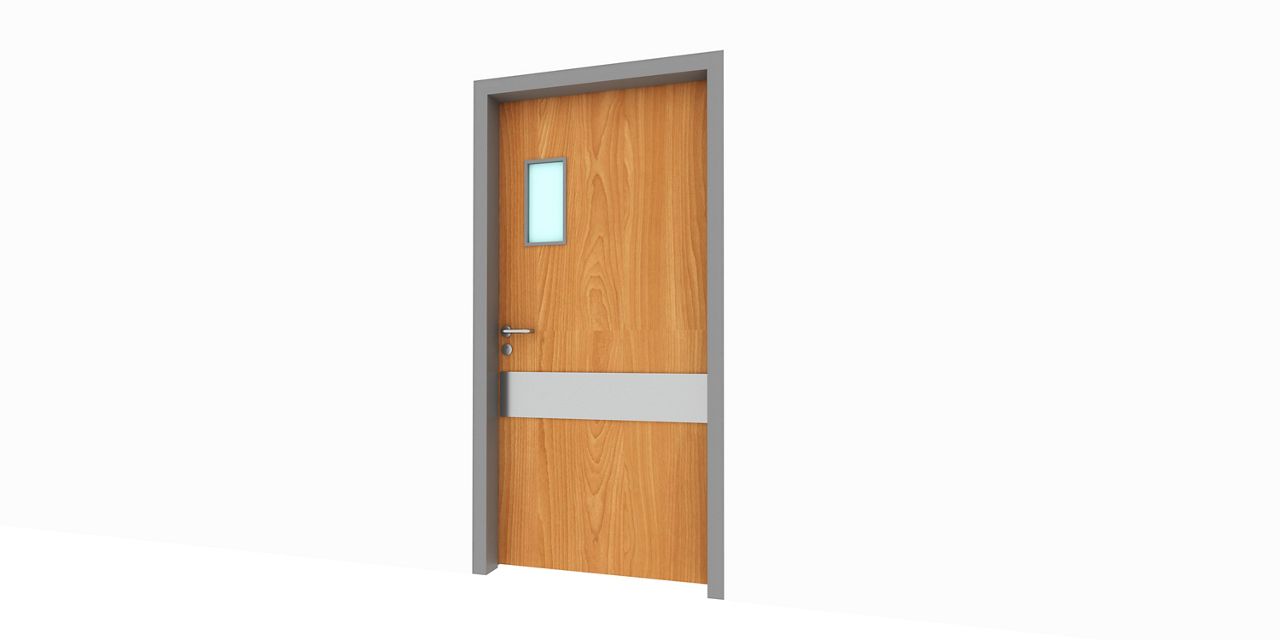

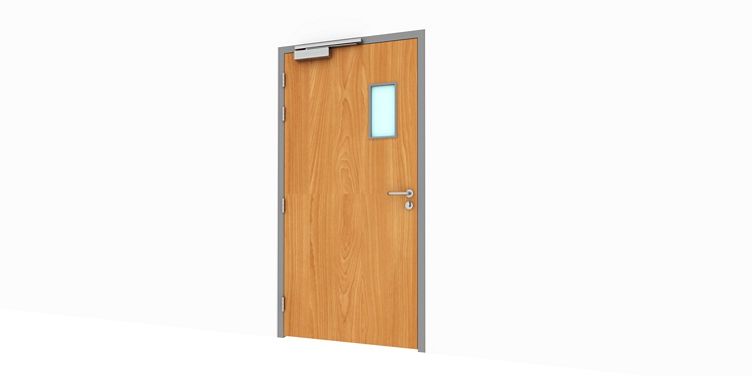

Steel Frame Wooden Doorset, Doctor Room – Single

ASSA ABLOY Security Solutions Middle East doorset for a Standard Fire rated Single leaf Doctor Room door. Equipped with mortice sash lock, lever handle and master keyed cylinder and cam motion door closer.

1 of 3

Characteristics

Size of 1000mm x 2200mm
Single leaf
Doorframes are made of Solid wood / Steel
Door Leaf is of Mineral Board core with Hardwood Lipping
Door Frame in PU Paint & Leaf with HPL / PU Paint

Performance

Increased finish performance for water resistance
Acoustic rating available up to 38dB
Usage: Internal

Safety

Finger guard option
Fire Rated 90 min

Sustainability

Complies to the Green Building Requirement
FSC sourced wood
Manufactured under ISO 9001:2008 certification

Hardware Set:

Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
Mortice Lock case silent latch Sash lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
Lever Handle, standard: BS EN1906 Grade 3.
MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1 EN)
Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
Stretcher Plate
Door stop, floor mounted
Gasketing
Intumascent Seals.

Typical applications: Health Care and Hospital.

Compatible Standards: BS EN1935, BS EN12209, BS EN1906, BS EN1154.
