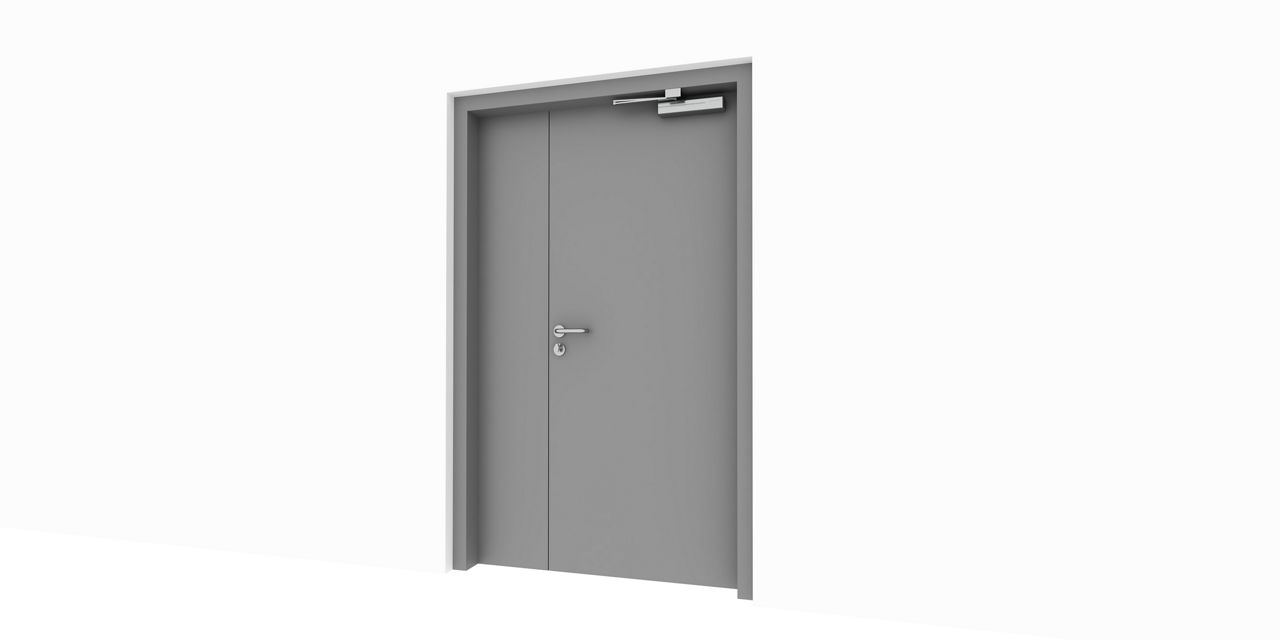

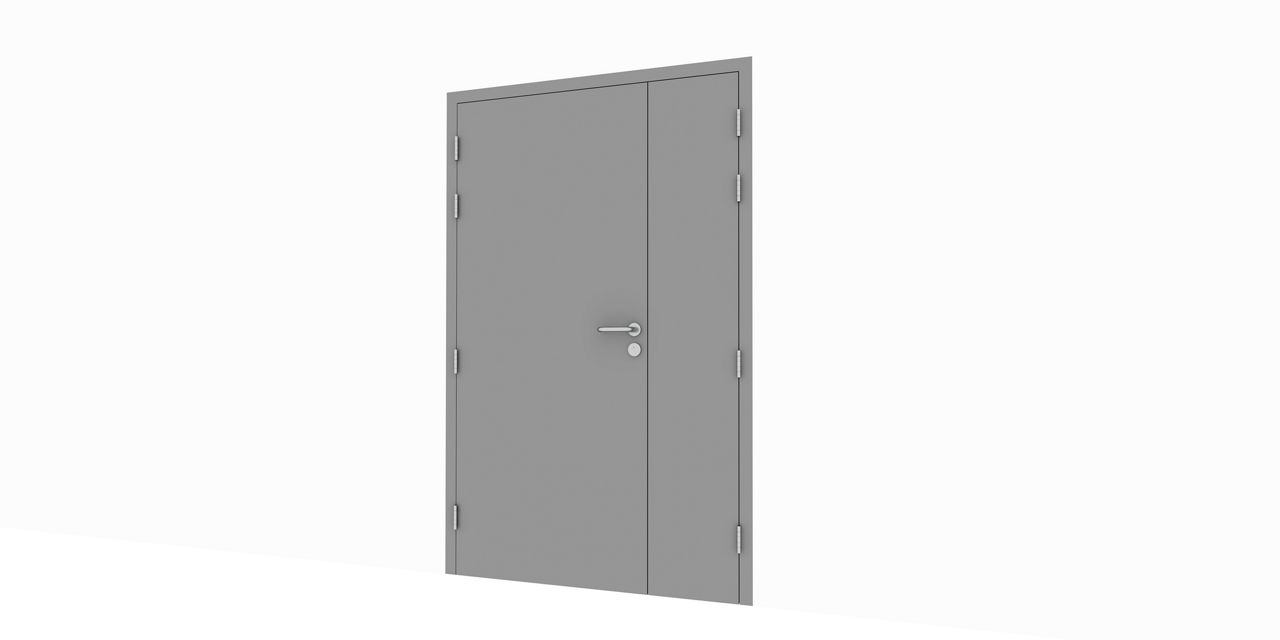

Steel Doorset Technical LV Room Door- One and Half Leaf

Steel Doorset Technical LV Room Door- One and Half Leaf

ASSA ABLOY Security Solution Middle East solution for a Technical LV Room door with One and half leaf steel door. Equipped with flush bolt, Dust proof strike, Mortice Lock case dead lock, Pull handle, Master keyed cylinder and Rack and pinion door closer.


Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Characteristics

  • Full range of sizes
  • Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
  • Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
  • Door set powder-coated in any colour from the Standard Range RAL palette
  • Door Frame Corner construction: Welded or Knock down as per the requirements.

Performance

  • Increased finish performance for corrosion
  • Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
  • Usage: Internal (Honeycomb/Rockwool); External (Rockwool), Substations /Unmanned (PIC)

Safety

  • Protection Plates, Armour plates, Grills, Sand Trap Louver options available as required.

Sustainability

  • Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), Upto 0.625W/m2k Rockwool
  • Manufactured under ISO 9001:2008 certification
  • Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set:

  • Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
  • Mortice Lock case Dead lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
  • Pull Handle, standard: BS EN8424 Grade 3.
  • MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
  • Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
  • Flush bolt
  • Dust proof strike
  • Escutcheon
  • Door stop, floor mounted
  • Gasketing

Typical applications:Residential, Commercial buildings, Hospitals, School and Others.

Compatible Standards:  BS EN1935, BS EN1154, BS EN12209, BS EN 1303.

  • 15-Datasheet_Technical_LV_Room_Door-One_and_Half(PDF, 1 MB)
  • 15.Doorset_Technical_LV_Room_door_ASSA_ABLOY_Hardware_2D_light(RFA, 588 KB)
  • 15.Doorset_Technical_LV_Room_door_ASSA_ABLOY_Hardware_3D(RFA, 1 MB)
