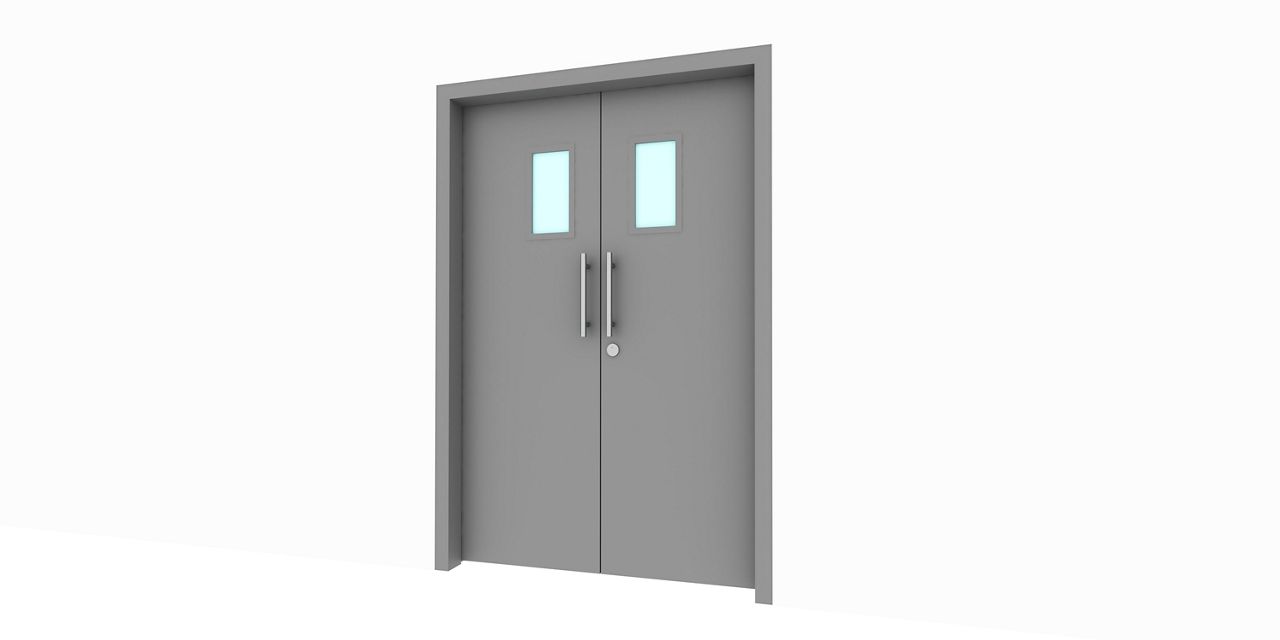

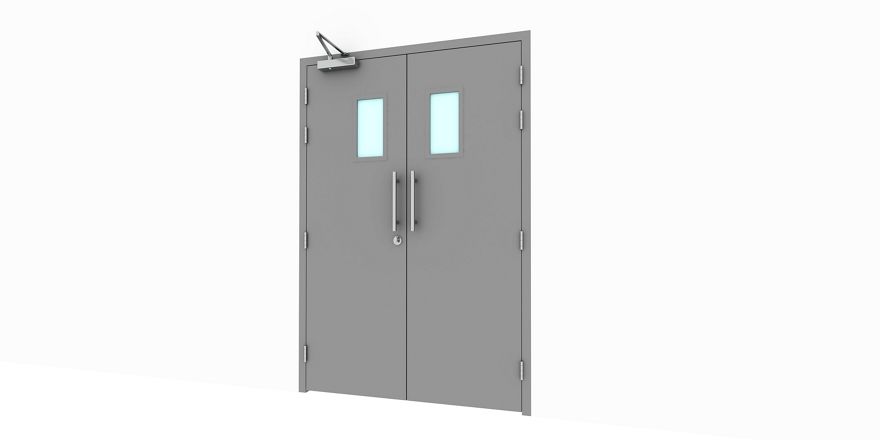

Steel Doorset Non-Fire Rated Steel Door - Double

Characteristics

• Full range of sizes
• Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Door set powder-coated in any colour from the Standard Range RAL palette
• Door Frame Corner construction: Welded or Knock down as per the requirements.

Performance

• Increased finish performance for corrosion
• Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool)
• Usage: Internal (Honeycomb/Rockwool); External (Rockwool), Substations /Unmanned (PIC)

Safety

• Protection Plates, Armour plates, Grills, Sand Trap Louver options available as required.

Sustainability

• Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), Upto 0.625W/m2k Rockwool
• Manufactured under ISO 9001:2008 certification
• Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Mortice Lock case Dead lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
• Pull Handle, standard: BS EN8424 Grade 3.
• MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Rack & Pinion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20150278-IAB1-EN)
• Flush bolt
• Dust proof strike
• Escutcheon
• Door stop, floor mounted
• Gasketing

Typical applications: Residential, Commercial buildings, Hospitals, School and Others.

Compatible Standards: BS EN1935, BS EN1154, BS EN12209, BS EN 1303, BS EN8424.
