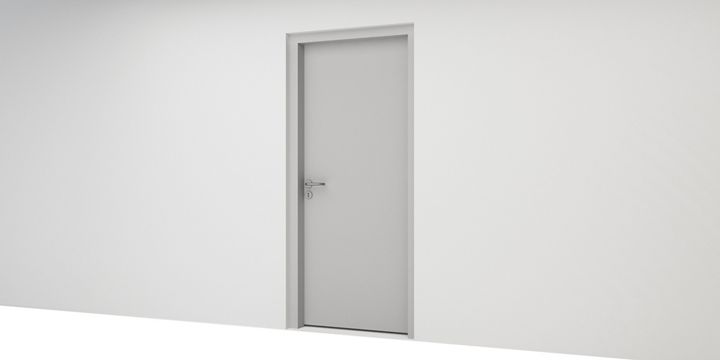

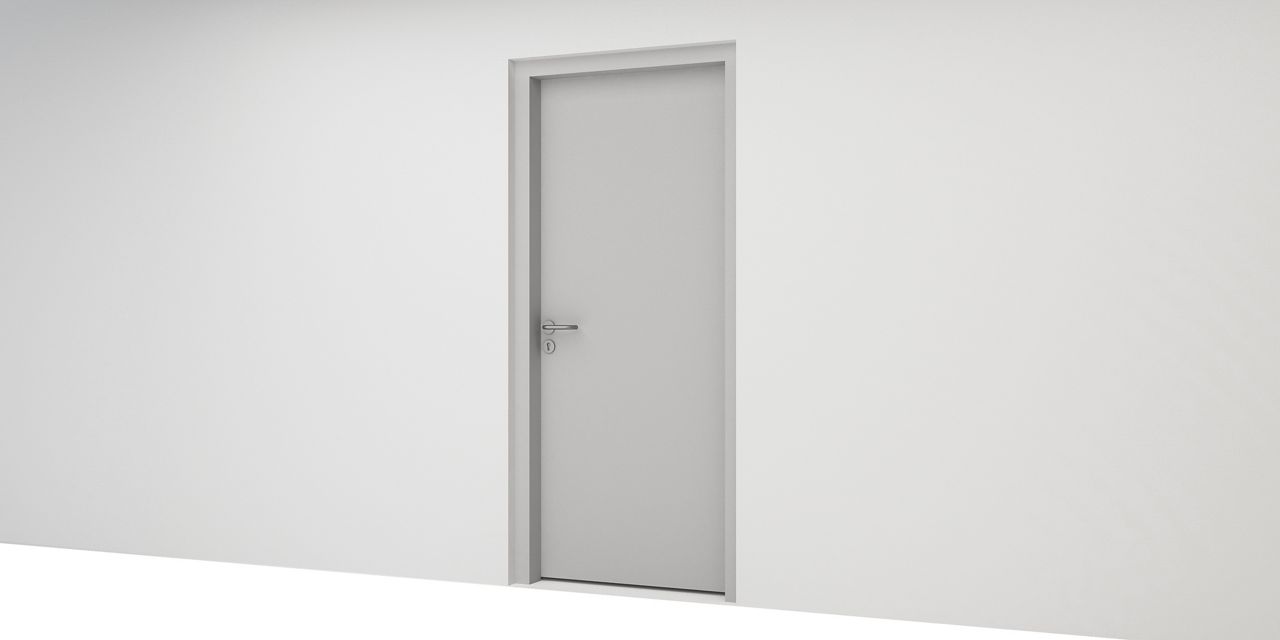

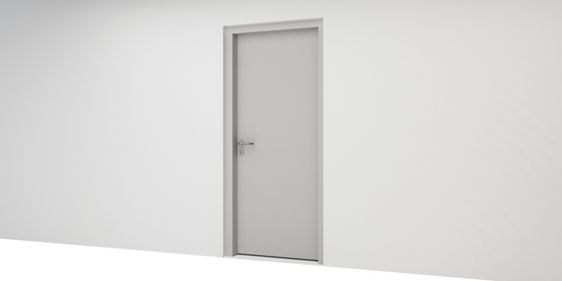

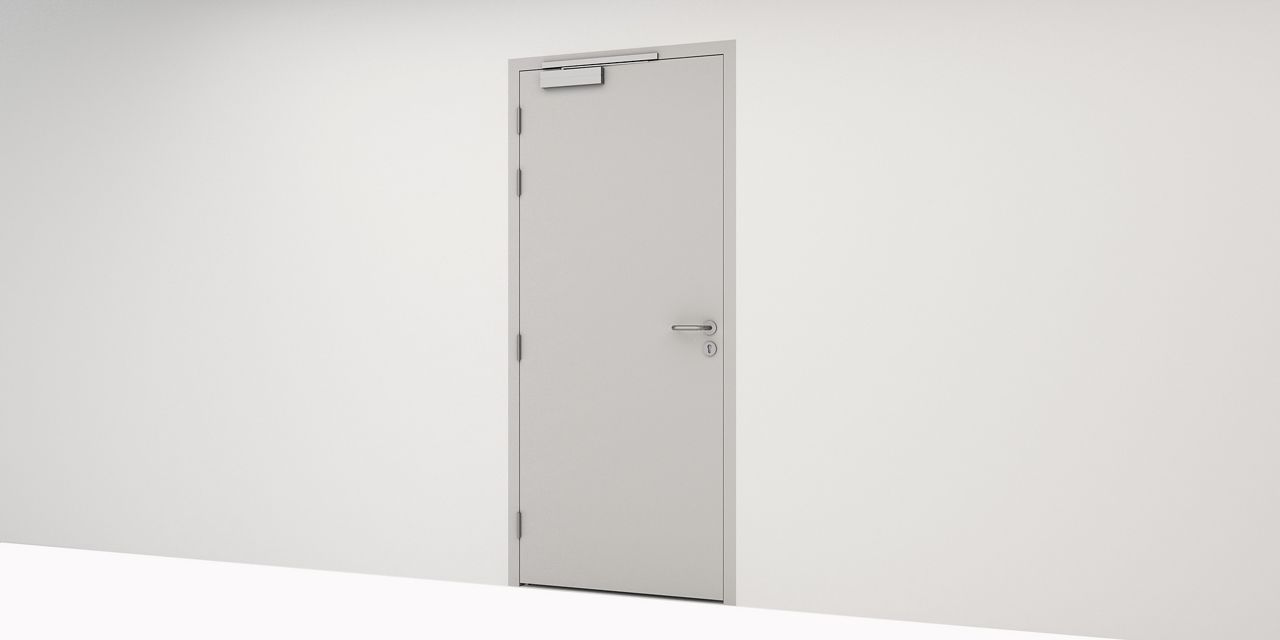

Steel Doorset Lead Lined X-Ray

Characteristics

• Full range of sizes
• Single leaf
• Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
• Hollow metal steel door powder-coated in any colour from the RAL palette
• Door Frame Corner construction: Welded or Knock down

Performance

• Increased finish performance for corrosion, high impact
• Usage: Internal (Rockwool)

Safety

• Radiation protection as required

Sustainability

• Thermal transmittance (U) value upto 0.625W/m2k Rockwool

Hardware Set:

• Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
• Heavy duty mortice lock for radiation protection, Standard: DIN 18251-1.
• Lever Handle, standard: BS EN1906 Grade 3.
• MKS Knob Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
• Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
• One way spindle
• Floor mounted door stop.
• Self-adhesive seal.

Typical applications: Hospitals X-ray room.

Compatible Standards: BS EN1935, BS EN1154, BS EN1906, BS EN 1303, BS EN14351-1, BS476 pt22, BS EN1634-1.
