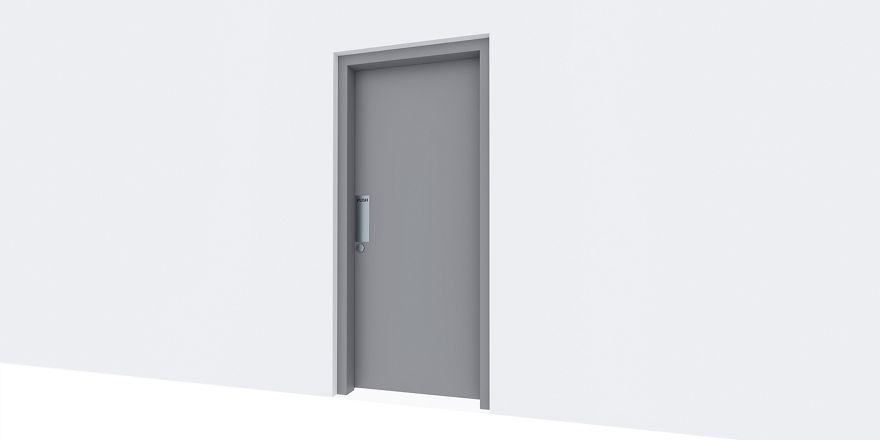

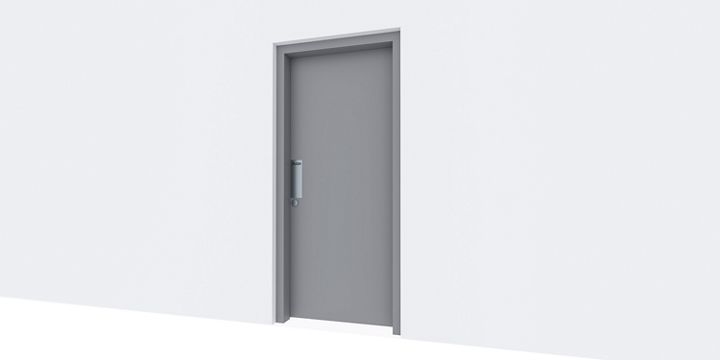

Steel Doorset Standard non-fire rated Door- Single

ASSA ABLOY Opening Solutions Middle East solution for a Standard non-fire rated door with single leaf steel door.

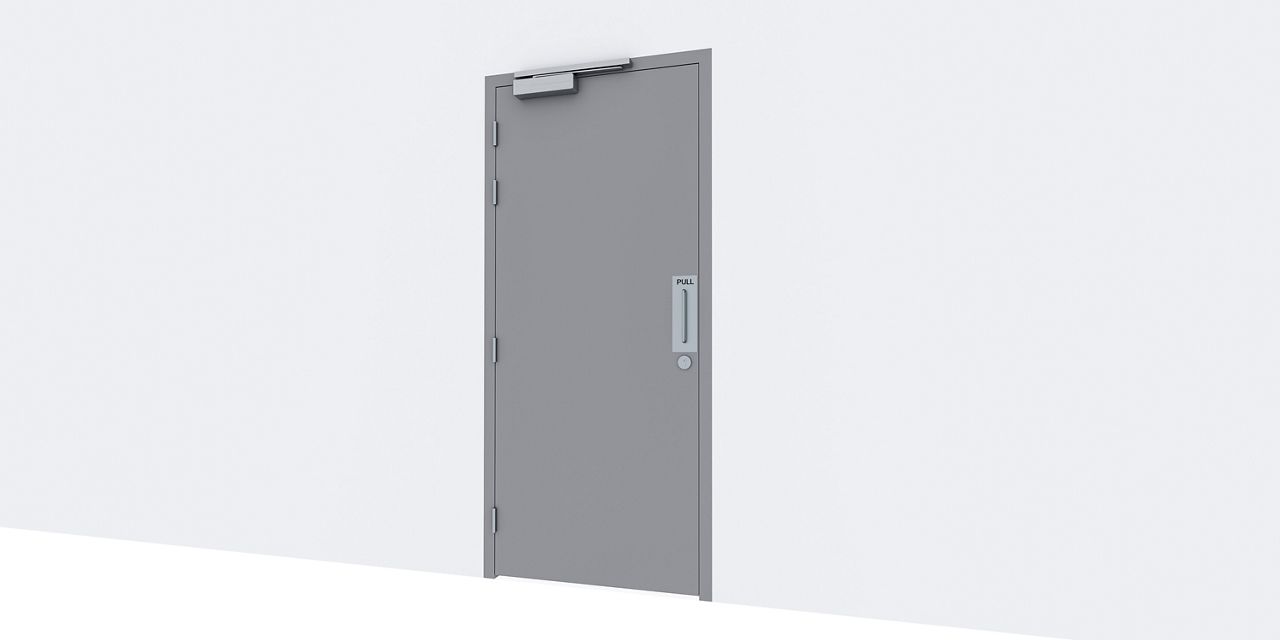

Equipped with Mortice Lock case dead lock, Push Plate, Pull Plate and Cam-Motion^®closer.

Typical applications: Commercial buildings, hospitals, school, hotels.

1 of 3

Characteristics

Full range of sizes
Single leaf made of galvanised steel sheet and stainless steel to polyester powder coated finish.
Doorframes are made of galvanised steel sheet and stainless steel to polyester powder coated finish.
Hollow metal steel door powder-coated in any colour from the Standard Range RAL palette
Door Frame Corner construction: Welded or Knock down

Performance

Physical Performance Levels A & B to ANSI A250.4 2011 Available as per specification requirements.
Increased finish performance for corrosion
Acoustic rating available in Flushed Door up to STC35dB (Honeycomb) and up to STC50dB (Rockwool
Usage: Internal (Honeycomb/Rockwool); External (Rockwool), Substations /Unmanned (PIC)

Safety

Protection Plates, Armour plates, Grills, Sand Trap Louver options available as required.

Sustainability

Thermal transmittance (U) value 1.565 W/m2k (Honeycomb), Upto 0.625W/m2k Rockwool
Manufactured under ISO 9001:2008 certification
Environmental Product Declaration (EPD) Available for Honeycomb

Hardware Set

Ball Bearing Butt Hinge, Standard: BS EN 1935:2002. CE Marked.
Mortice Lock case dead lock, Standard: BS EN 12209:2003, CE Marked. (EPD-ASA-20130279-IBC1-EN)
MKS Double Cylinder, Standard: BS EN 1303:2015, BS EN 15804 and SKG approved. (EPD-ASA-20170150-IBA1-EN)
Door Closer Cam-Motion, Standard: BS EN 1154. CE Marked. (EPD-ASA-20130275-IBC1-EN)
Push Plate
Pull Plate
Escutcheon.
Floor mounted doorstop.

Compatible Standards: BS 1245-2012, ANSI A250.4 -2011, BS EN1935, BS EN1154, BS EN12209, BS EN 1303.
