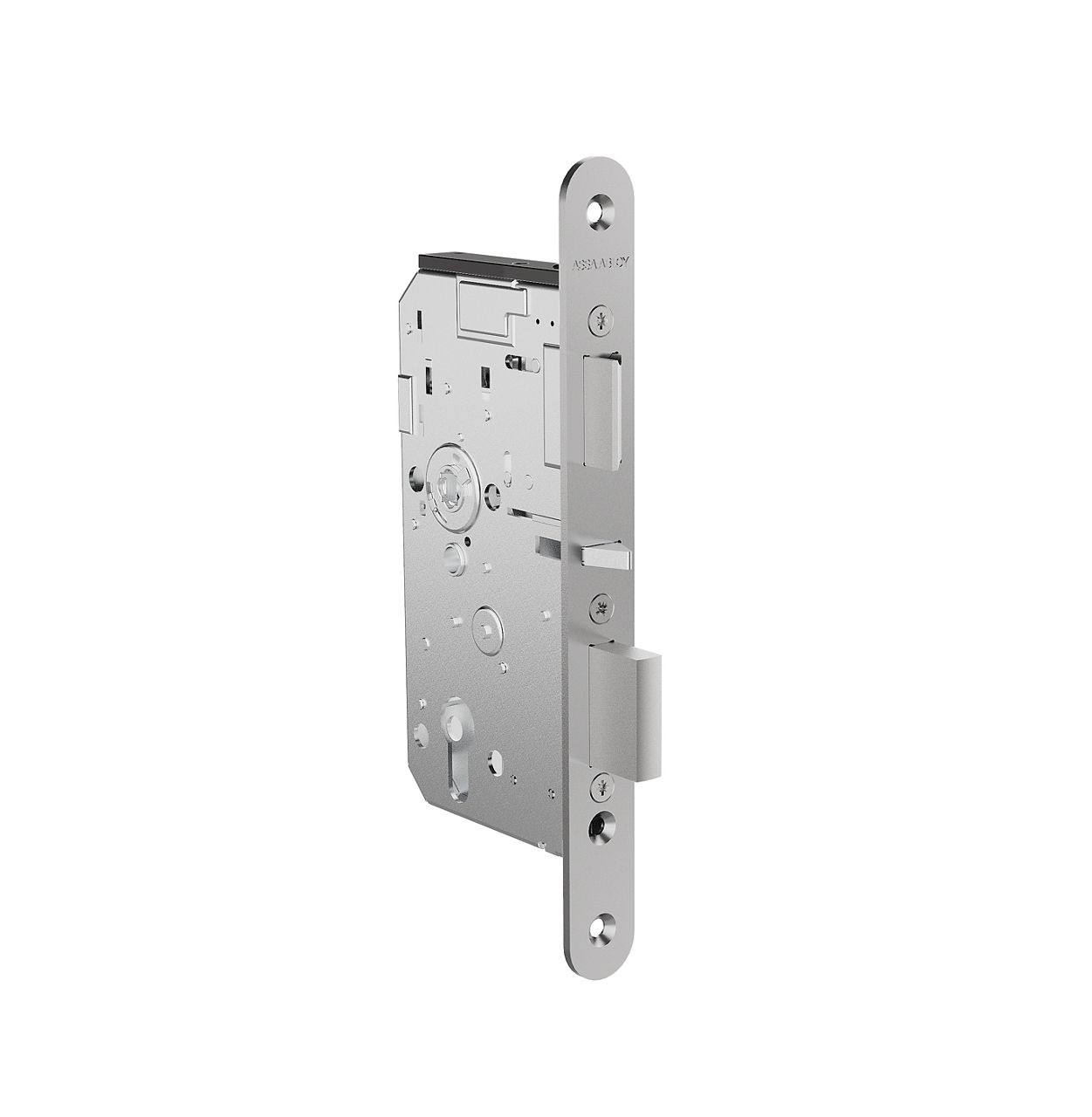

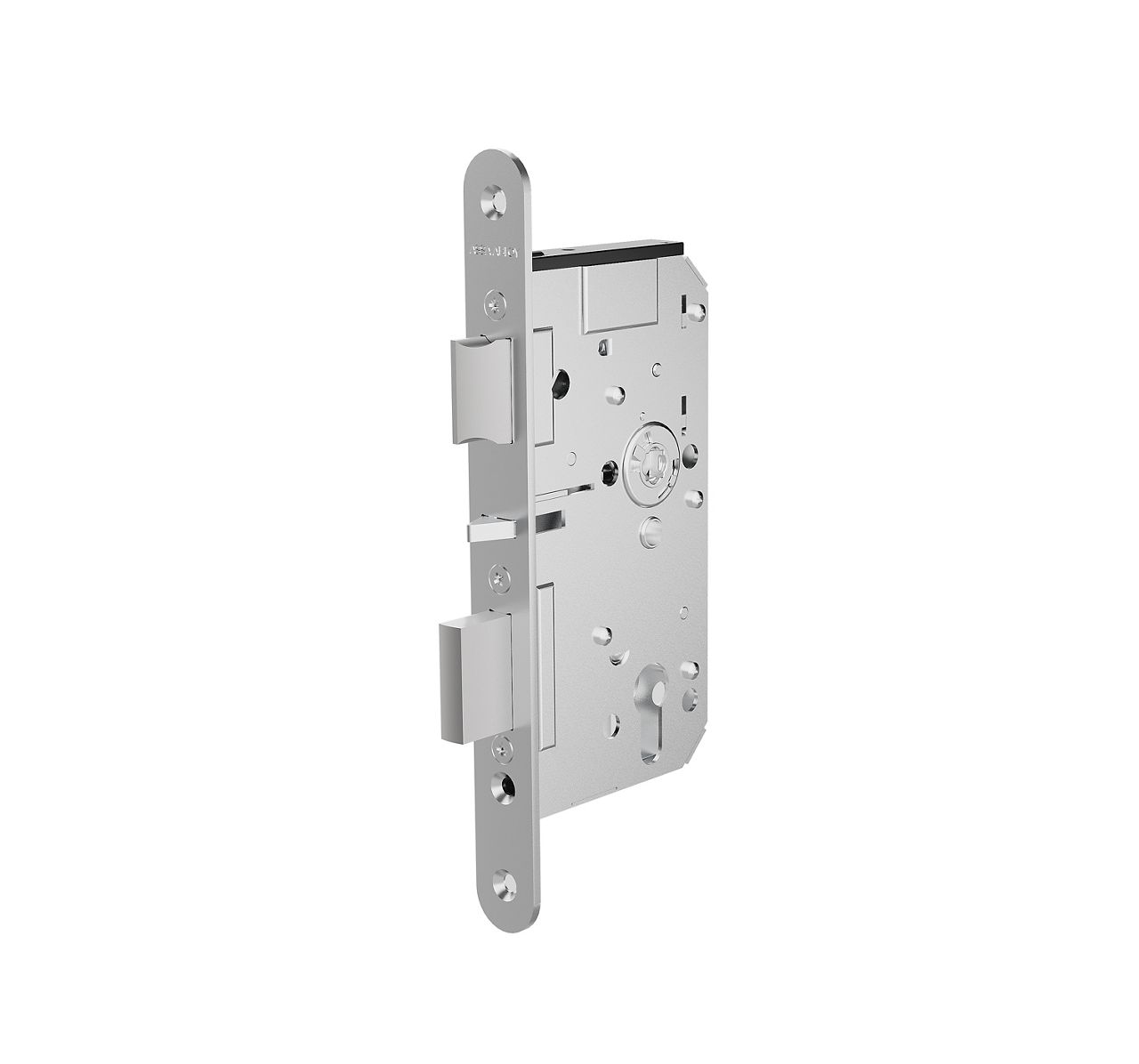

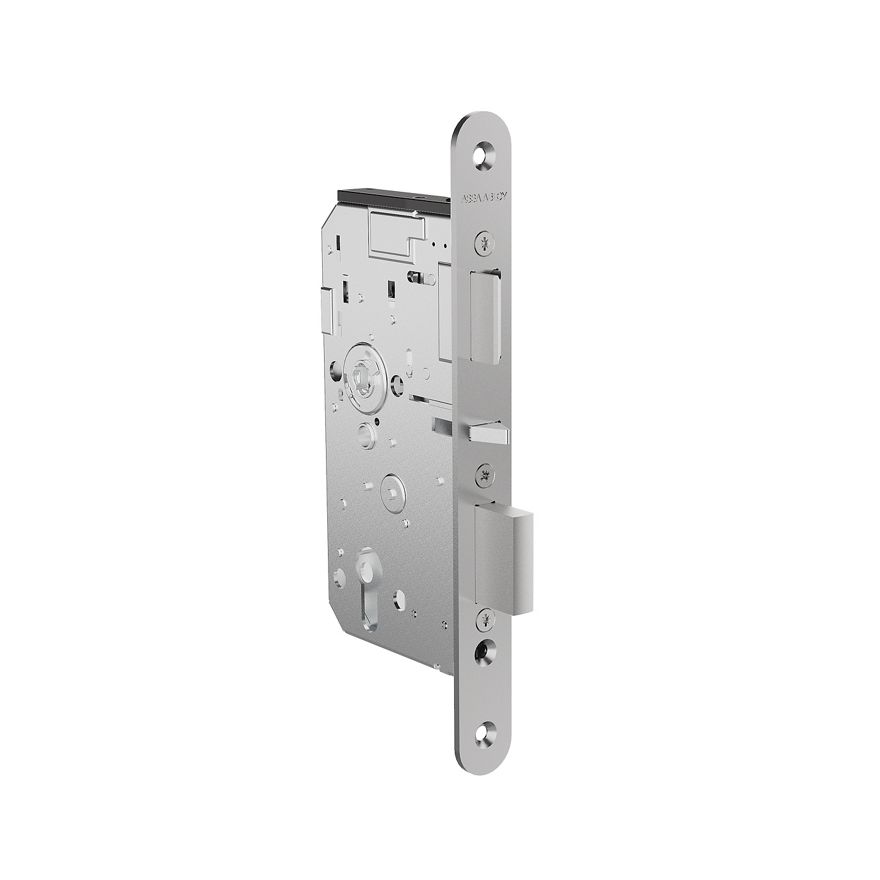

ASSA ABLOY AA8600 Series Electric Mortise Lock

The ASSA ABLOY AA8600 Series Electric Mortise Lock is a high-performance electromechanical locking solution designed for premium security applications. Engineered for high-traffic environments such as commercial buildings, industrial complex, data centre, and other high-security applications, the AA8600 Series combines mechanical robustness with intelligent electronic control. It combines a reinforced mechanical chassis with intelligent electronics, delivering secure lift-to-lock deadbolting, and multi-point status monitoring for full integration with access control system.

Key Features:

• Dual-Action Locking: Lift the lever to throw the deadbolt; latch bolt automatically engages when the door closes.

• Fail-Safe/Fail-Secure Modes: Available in either power-to-lock or power-to-open modes based on security needs.

• Mechanical Override: Integrated keyed cylinder ensures access during power failure.

• Free-Wheeling Exterior Lever: Prevents forced entry when power is off.

• Reversible Latch Bolt : Easily adaptable for left- or right-hand doors.

• Anti-Pick Protection: Enhanced latch bolt design resists tampering.

• Spring-Loaded Rosette Compatibility: Ensures smooth lever return and aesthetic integration.

• Reinforced Front Plate: Provides added durability and resistance to forced entry.

• Multiple Signal Outputs: Real-time monitoring of lock status, including deadbolt, latch bolt, lever, door, and tamper signals.

• Industrial-grade Materials: SUS304 front plate, carbon-steel lock body, spring-steel components.

• Certified to EN 14846, EN 1634, EN 179 and EMC standards for code compliance across projects.

Applications:

• Office and commercial building doors

• Industrial Complexes

• Data Centers
