DC700

Cam-Motion

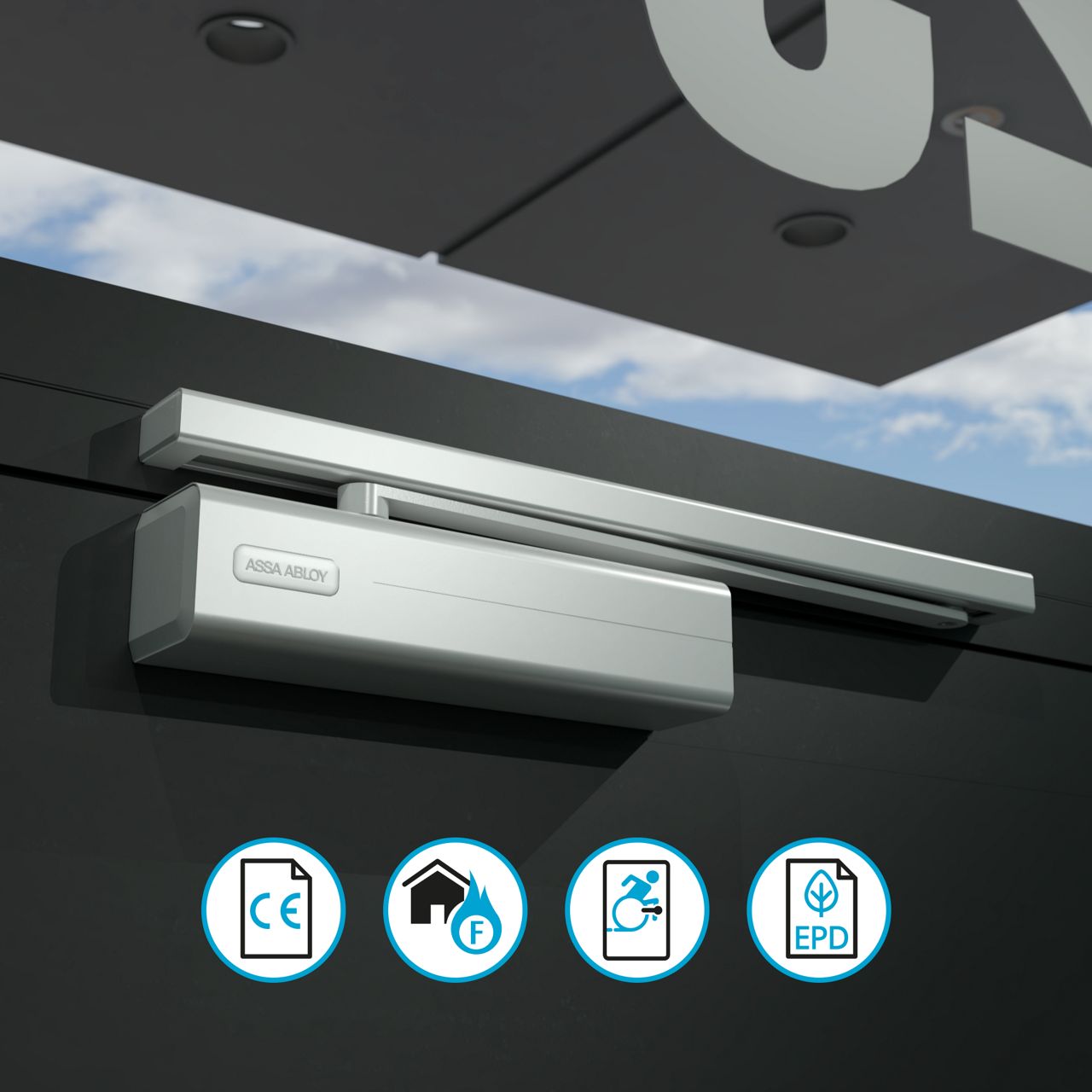

DC700 door closer with Cam-Motion® technology and guide rail for single leaf doors, size 3-6

The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort.

Certified in compliance with EN 1154, size 3-6
Suitable for fire and smoke protection doors
For single leaf doors up to 1400 mm width
Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894

4 mounting options
Door closer fits door or frame mount, push or pull side – right out of the box
Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design

Features

Symmetric cam design allows four mounting options
Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
Closing and latch speeds can be raised and lowered independently
Durable, front-facing metal valves make adjustments easy and reliable
Consistent performance in a wide range of indoor/outdoor temperatures
Backcheck functionality as standard protects the frame and surrounding areas
Optional delayed closing allows more time for a user to pass through the door
Simplified stock management with universal parts and adaptable solutions

Variants

DC700DA with delayed closing variable from max. opening angle to 70°, adjustable from front
DC700AC with opening angle of 180° for standard installation on hinge side

Guide rails and accessories

G195 height-adjustable guide rail (2 mm) with concealed fastening screws
G193 standard guide rail with visible fastening screws
A152 mechancial hold-open device with adjustable hold-open force, keeps doors open at an angle between 80° and 130° (not approved for use on fire and smoke protection doors)
A153 mechancial opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)

Datasheet and brochure
Cam-Motion Brochure(PDF, 5 MB)
DC700 Datasheet with drawings(PDF, 1 MB)

Installation instructions and drilling templates
DC700AC Installation instructions(PDF, 2 MB)
DC700AC Drilling template(PDF, 571 KB)
DC500/DC700 Installation instructions(PDF, 3 MB)
DC500/DC700 Drilling template(PDF, 754 KB)

Specification texts
DC700 Specifications(DOCX, 29 KB)

Item	Part number	Type
DC700, EN size 3-6, silver, EV1	DC700-----DEV1-	Door closer
DC700, EN size 3-6, white, similar to RAL 9016	DC700-----D9016	Door closer
DC700, EN size 3-6, brown, similar to RAL 8014	DC700-----D8014	Door closer
DC700, EN size 3-6, black, similar to RAL 9005	DC700-----D9005	Door closer
DC700, EN size 3-6, stainless steel design	DC700-----D35--	Door closer
DC700, EN size 3-6, stainless steel, full cover	DC700-1-----35-	Door closer
DC700, EN size 3-6, customized finish	DC700-----DXXXX	Door closer
DC700DA, EN size 3-6, silver, EV1	DC710-----DEV1-	Door closer
DC700DA, EN size 3-6, white, similar to RAL 9016	DC710-----D9016	Door closer
DC700DA, EN size 3-6, brown, similar to RAL 8014	DC710-----D8014	Door closer
DC700DA, EN size 3-6, black, similar to RAL 9005	DC710-----D9005	Door closer
DC700DA, EN size 3-6, stainless steel design	DC710-----D35--	Door closer
DC700DA, EN size 3-6, stainless steel, full cover	DC710-1---D35--	Door closer
DC700DA, EN size 3-6, customized finish	DC710-----DXXXX	Door closer
DC700AC, EN size 3-6, silver, EV1	DC711-----DEV1-	Door closer
DC700AC, EN size 3-6, white, similar to RAL 9016	DC711-----D9016	Door closer
DC700AC, EN size 3-6, brown, similar to RAL 8014	DC711------D8014	Door closer
DC700AC, EN size 3-6, black, similar to RAL 9005	DC711------D9005	Door closer
DC700AC, EN size 3-6, stainless steel design	DC711-----D35--	Door closer
DC700AC, EN size 3-6, stainless steel, full cover	DC711-1---D35--	Door closer
DC700AC, EN size 3-6, customized finish	DC711-----DXXXX	Door closer
Guide rail G195, silver, EV1	DCG195----DEV1-	Guide rail
Guide rail G195, white, similar to RAL 9016	DCG195----D9016	Guide rail
Guide rail G195, brown, similar to RAL 8014	DCG195----D8014	Guide rail
Guide rail G195, black, similar to RAL 9005	DCG195----D9005	Guide rail
Guide rail G195, stainless steel	DCG195----D35--	Guide rail
Guide rail G195, customized finish	DCG195----DXXXX	Guide rail
Guide rail G193, silver, EV1	DCG193-----EV1-	Guide rail
Guide rail G193, white, similar to RAL 9016	DCG193-----9016	Guide rail
Guide rail G193, brown, similar to RAL 8014	DCG193-----8014	Guide rail
Guide rail G193, black, similar to RAL 9005	DCG193-----9005	Guide rail
Mounting plate A120, galvanized	DCA120-------40	Accessory
Mounting plate A130, silver, EV1	DCA130-----EV1-	Accessory
Mounting plate A130, white, similar to RAL 9016	DCA130-----9016	Accessory
Mounting plate A130, brown, similar to RAL 8014	DCA130-----8014	Accessory
Mounting plate A130, black, similar to RAL 9005	DCA130-----9005	Accessory
Mounting plate A130, customized finish	DCA130-----XXXX	Accessory
Mounting plate A136, silver, EV1	DCA136-----EV1-	Accessory
Angle bracket A104, silver, EV1	DCA104-----EV1-	Accessory
Angle bracket A104, white, RAL 9016	DCA104-----9016	Accessory
Angle bracket A104, brown, similar to RAL 8014	DCA104-----8014	Accessory
Angle bracket A104, black, similar to RAL 9005	DCA104-----9005	Accessory
Replacement plate A124, galvanized	DCA124-------40	Accessory
Glass door shoe A166, silver, EV1	DCA166-----EV1-	Accessory
Screening plate A190, stainless steel	DCA190-----35--	Accessory
Universal drilling gauge A176	DCA176---------	Accessory
Mechanical hold-open device A152	DCA152---------	Accessory
Mechanical opening damper A153	DCA153---------	Accessory

Name	Value
Closing force	EN size 3-6
Maximum leaf width	1400 mm
Closing speed (C)	Variable between 170° and 10°
Latch speed (L)	Variable between 10° and 0°
Backcheck (B)	Variable above 75°
Delayed closing (D)	Variable between 120° and 70° (only for DC700DA)
Maximum opening angle	Hinge side ~165° (180° for DC700AC) \| Non-hinge side ~125°
Door system	Single leaf
Handing	Left- / right-handed
Mounting methods	Leaf or frame \| Hinge or non-hinge side \| With or without mounting plate
Height-adjustable	Yes
Corrosion resistance	Grade 4 (240 hours)
Dimensions (H x D x L)	64 x 58 x 272 mm
Weight	2.7 kg
Certified in compliance with	EN 1154
CE classification	3* \| 8 \| 3-6 \| 1 \| 1 \| 4 (*4 for DC700AC)
CE / UKCA mark	Yes
Suitable for fire and smoke protection doors	Yes
Third-party verified EPD	ISO 14025, EN 15804
Barrier-free according to	CEN/TR 15894 \| DIN 18040 (max. leaf width 1250 mm)
