Artiglio

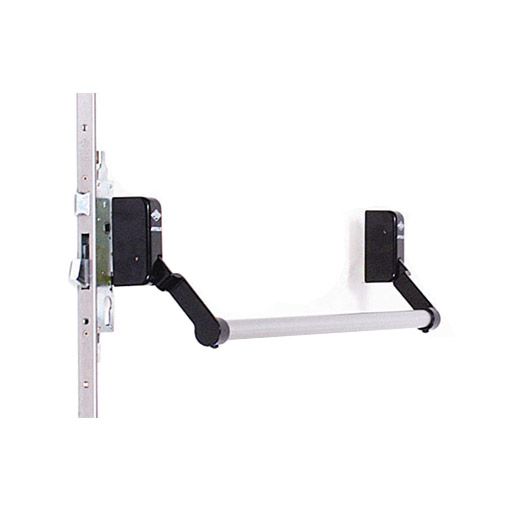

Artiglio is a panic exit device suitable for single leaf fire rated doors with a narrow stile security mortise lock.

It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.

Versions:

Finishes: Black, Grey, White

Finishes

Installation	Reversible For single leaf doors with metal profile
Suitable for fire/smoke rated doors	Yes
EN 1125 CE Certificate	Yes, for doors with weight over 200 kg, height not higher than 2520 mm and width not bigger than 1320 mm

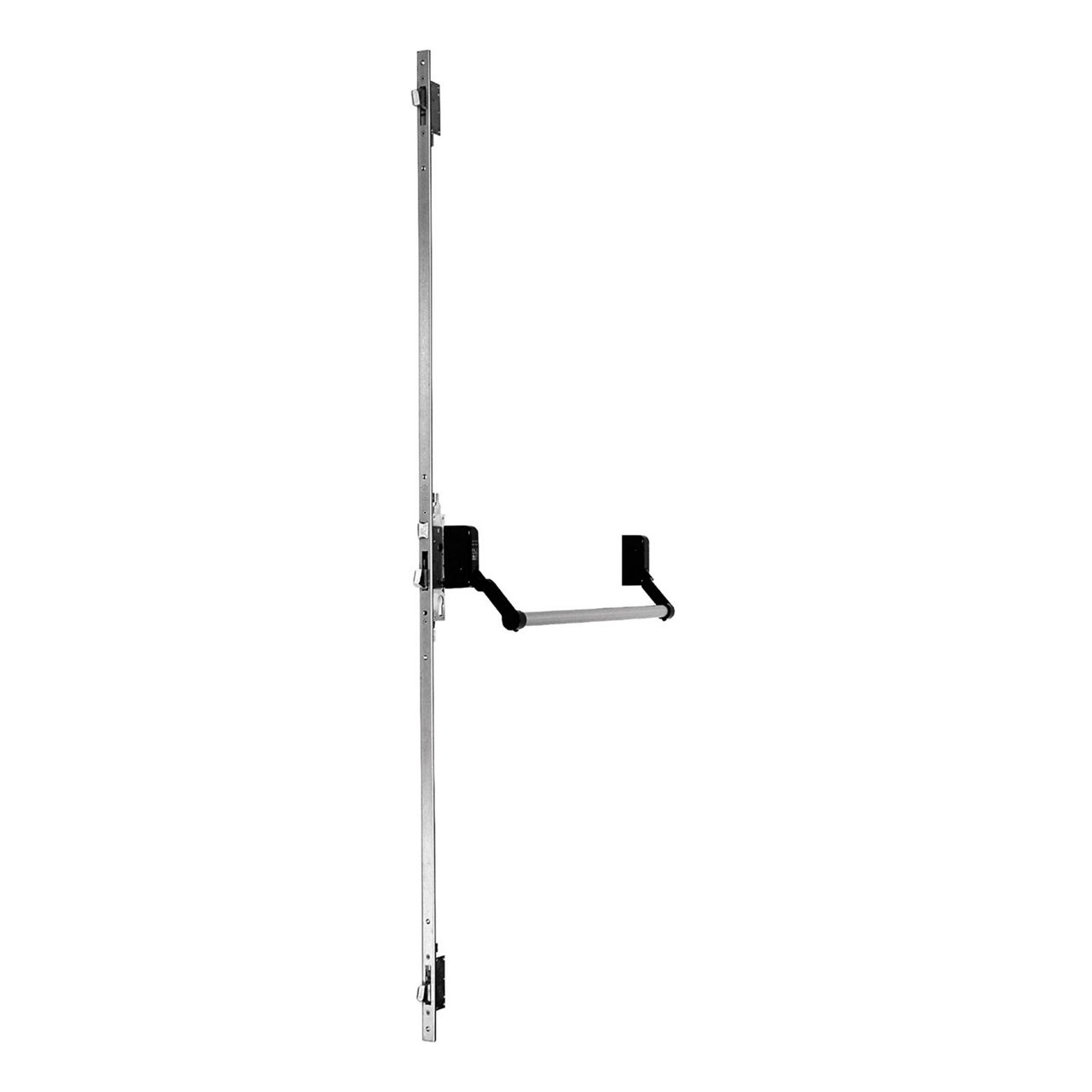

Included lock	Narrow stile mortise lock with 1 or 3 closing points
Lock backset	25 mm / 30 mm / 35 mm / 40 mm
Forend shape	Flat / U-shape
Through cylinders	F115 series (straight cam) F116 series (protruding cam)
External handle follower	8 mm
Oval bar (to be ordered separately)	Available in different materials and finishes
Available accessories to be ordered separately:	Cylinder Lock counterplate External handle
