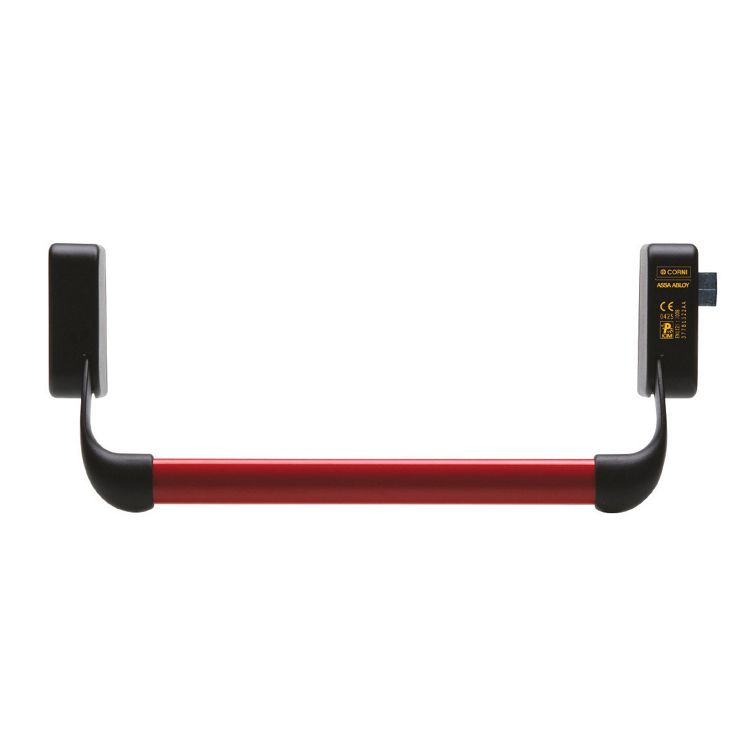

Ministar 429 PED

Ministar 429 is a type A (Push) rim panic exit device with small size, suitable also for metal profiles and mid-rail doors.

It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.

Versions:

Finishes: Black, Grey, Simil stainless steel, White, Chrome, Gold

Finishes

Installation	Reversible Suitable also for metal profiles and doors with mid-rail
Suitable for fire/smoke rated doors	Yes
EN 1125 CE Certificate	Yes, for doors with weight over 200 kg, height not higher than 2520 mm and width not bigger than 1320 mm
Modular	For 1, 2 or 3 locking points
Mechanism width	Lower than 35 mm
Mechanism height	103 mm
Protection from the door surface	Lower than 100 mm (category 2)
Steel mechanism	Yes
Levers material	Zamak
Cover material	Stainless steel

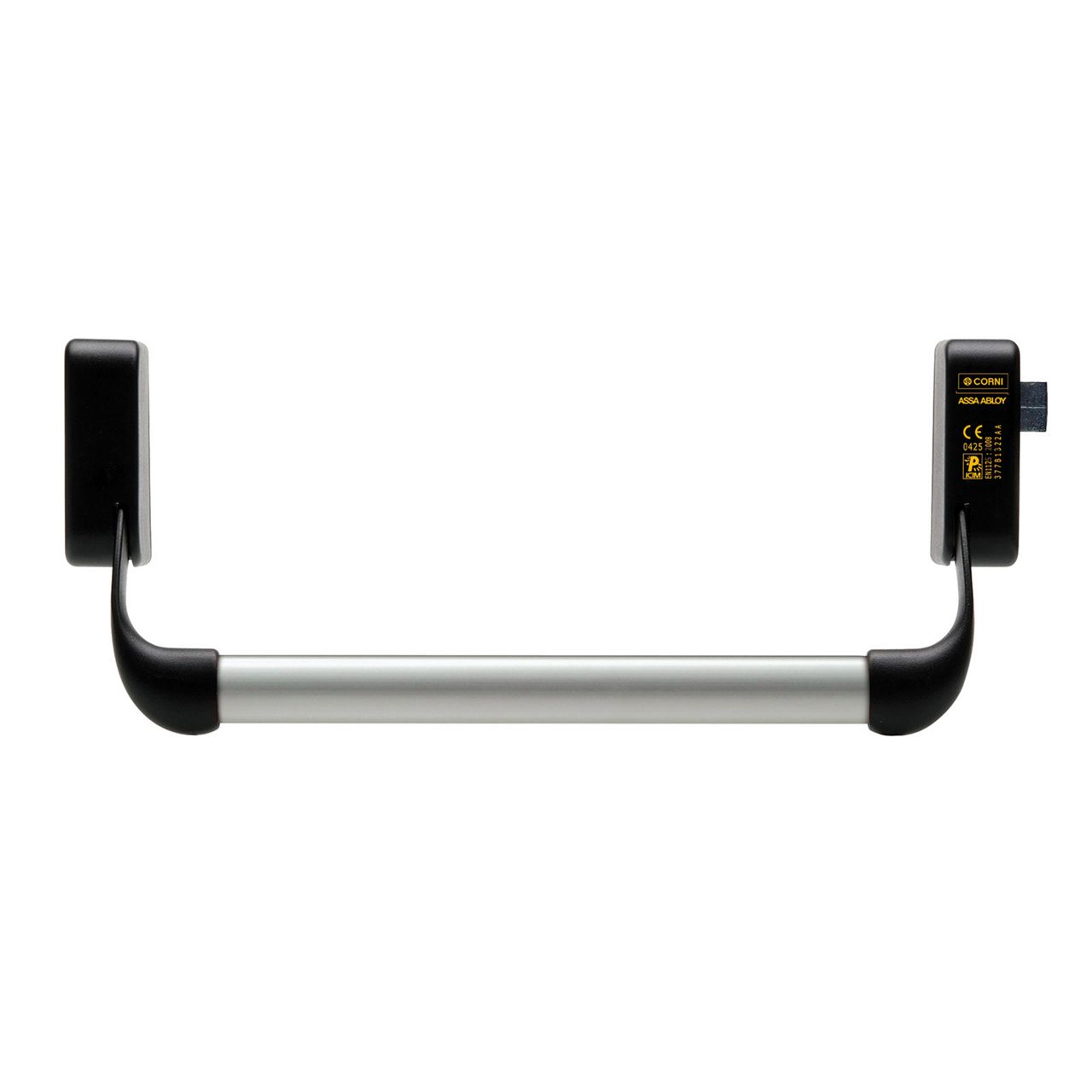

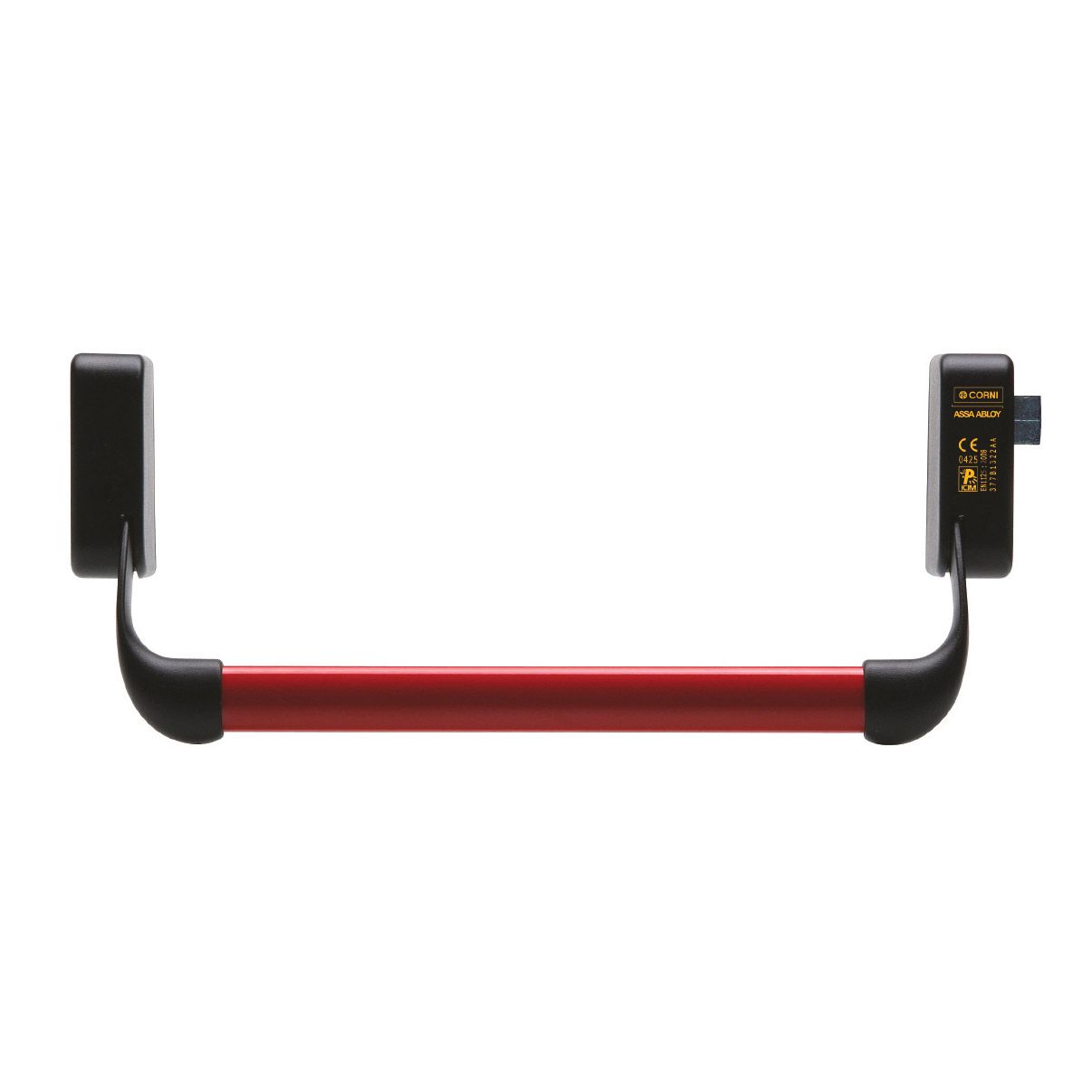

Oval bar (to be ordered separately)	Available in different materials and finishes
Available accessories to be ordered separately:	Upper/lower vertical latches kits Vertical roads kit External handle (Jolly handle 04480) or cylinder only
