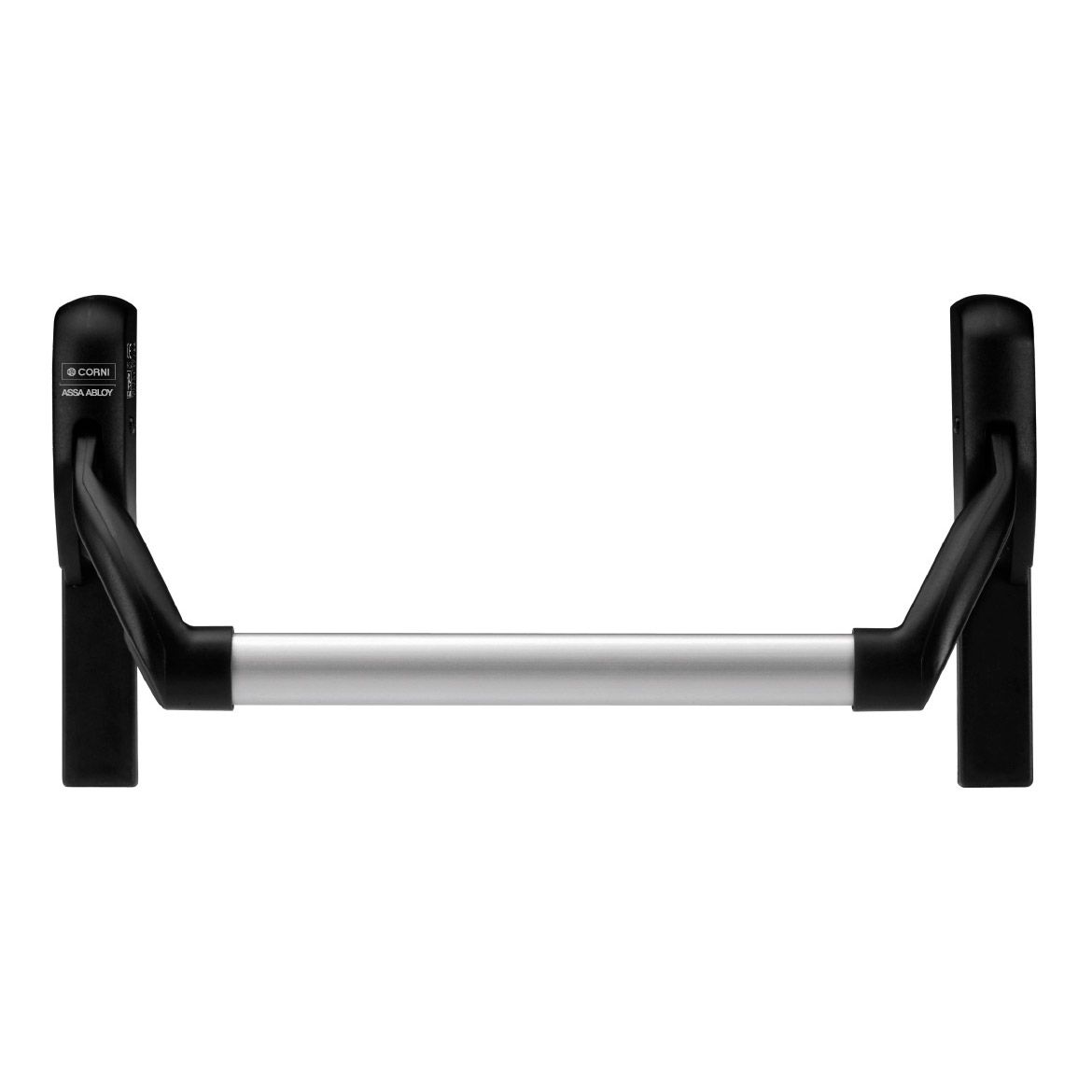

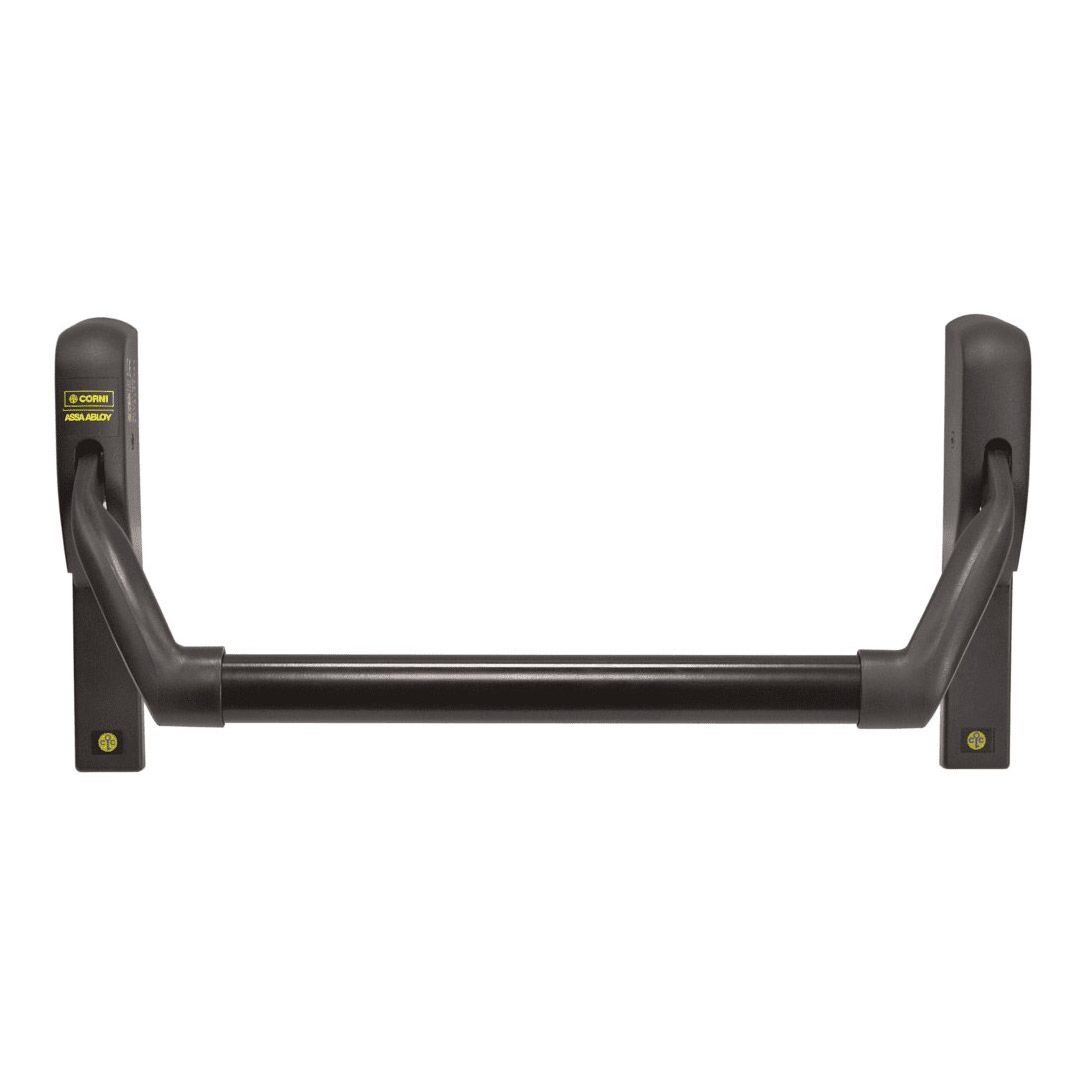

Mortise Eurosmart

Eurosmart in its mortise version is a type A (Push) panic exit device suitable for single or double leaf fire rated doors.

It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.

Versions:

Finishes:

Finishes

Installation	Reversible
Suitable for fire/smoke rated doors	Yes
EN 1125 CE Certificate	Yes
Distance	Double (72-92 mm)
Mechanism width	35 mm
Protection from the door surface	Lower than 100 mm (category 2)
Follower	9 mm
Mechanism material	Steel
Levers material	Steel plastic coated
The kit includes:	2 dummy covers 1 cover with profiled cylinder hole with 72 mm distance 1 cover with profiled cylinder hole with 92 mm distance
Bar (to be ordered separately)	Available in different materials and finishes
Available accessories to be ordered separately:	Compatible mortise locks Counterplate External accessories Cylinders Relatching device and connecting rods Escutcheon kit for secondary leaf
