    Artiglio PED

    • Corni
    • Push
    • Mortice device

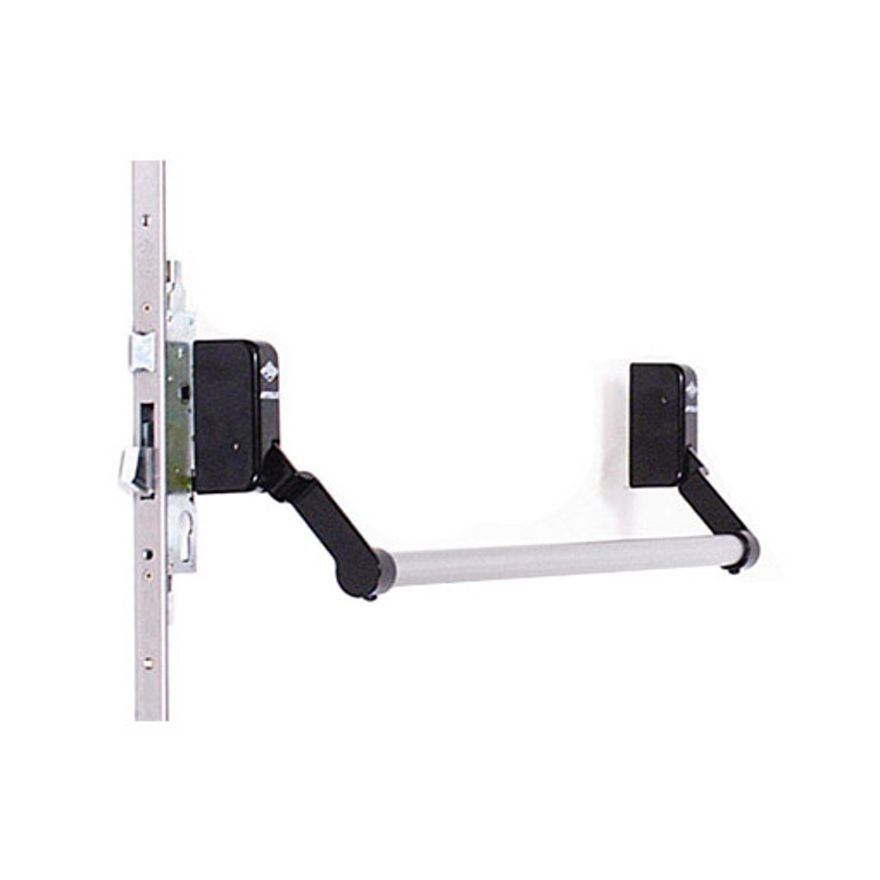

    Artiglio is a type A (Push) mortise panic exit device suitable for single leaf fire rated doors with a narrow stile security lock.

    It is certified according to EN 1125 for mechanical panic devices for emergency exits along escape routes.

    Versions:

    • 1 or 3 locking points
    • Stainless steel U-shape or flat forend
    • Standard or with micro-switch

    Finishes: Black, Grey, White

    Finishes

    • Black

    • Grey

    • White

    Artiglio
    Artiglio

    1 of 2

    Installation Reversible
    For single leaf doors with metal profile
    Suitable for fire/smoke rated doors Yes
    EN 1125 CE Certificate Yes, for doors with weight over 200 kg, height not higher than 2520 mm and width not bigger than 1320 mm
    Included lock Narrow stile mortise lock with 1 or 3 closing points
    Lock backset 25 mm / 30 mm / 35 mm / 40 mm
    Forend shape Flat / U-shape
    Through cylinders F115 series (straight cam)
    F116 series (protruding cam)
    External handle follower 8 mm
    Oval bar (to be ordered separately) Available in different materials and finishes
    Available accessories to be ordered separately:
    • Cylinder
    • Lock counterplate
    • External handle
    • Brochure

    • H001D09_Artiglio.QXP_Layout 1(PDF, 754 KB)
    • Technical drawings

    • C:\Users\maubov\Desktop\9901-930.DXF(PDF, 15 KB)
    • Artiglio_TechnicalDrawing(DWG, 78 KB)
    • Installation

    • FIST.9903-2C(PDF, 1 MB)
    • Certifications

    • Artiglio_EN_1125_Cert_CE(PDF, 1 MB)
    • 1(PDF, 297 KB)
    • Environmental Product Declarations (EPD)

    • EPD_Panic_exit_devices(PDF, 608 KB)
