PN21 - Locks for tilting doors

PN21 rim locks are designed for installation on particularly heavy tilting doors, such as garage doors.

They are designed for Euro-profile cylinders, which enable and disable the handle.

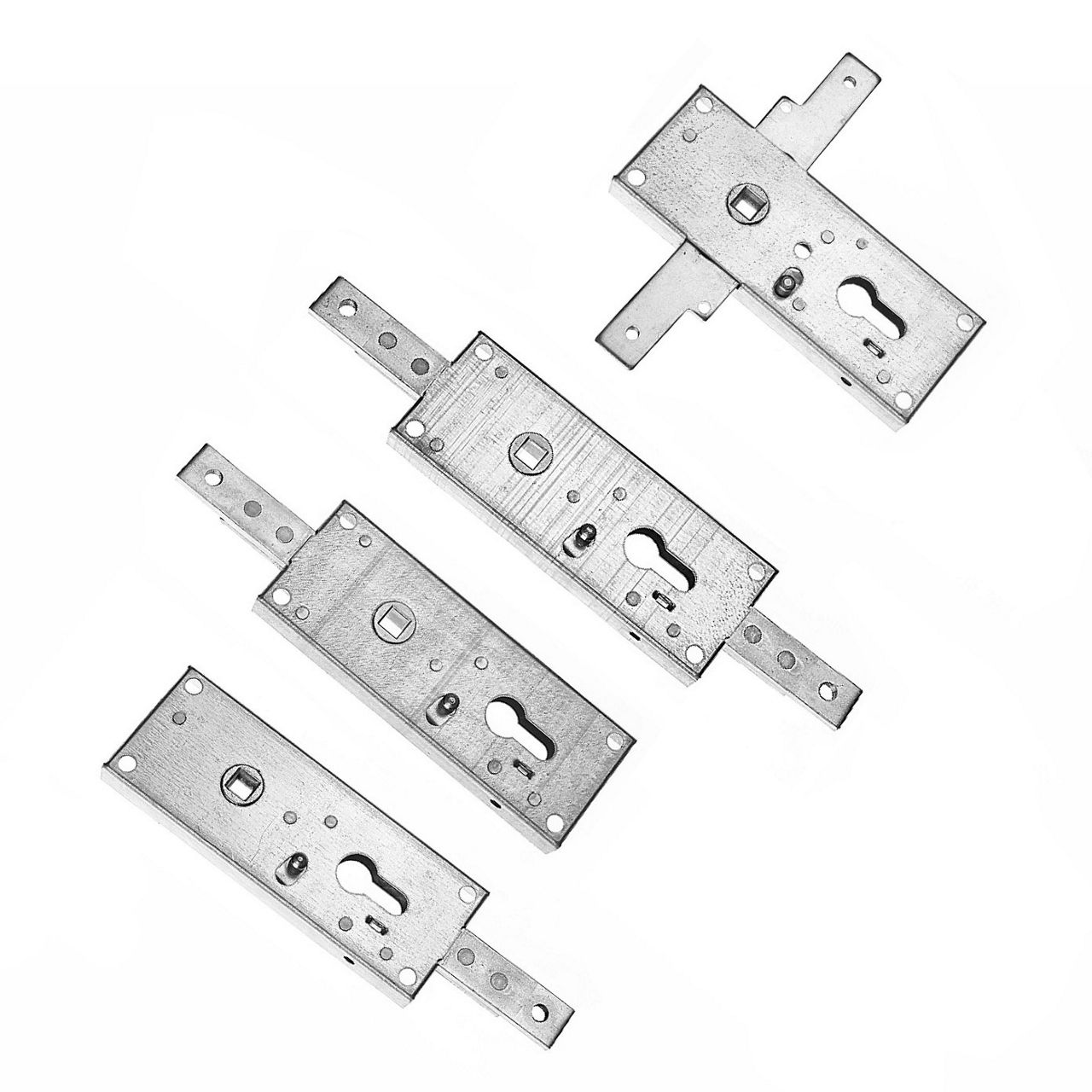

They are available in 4 different versions, depending on the position of the hooks (bottom, top, bottom and top, side).

Each model is available in 2 variants:

With spring: the cylinder does not need to be locked and the handle turned for locking.
Without spring: the cylinder must be locked and the handle turned for closing. The model with side latches is only available without spring.

Finish: Galvanised steel

Finishes

Type of lock	Rim locks for iron tilting doors designed for Euro-profile cylinders and handle

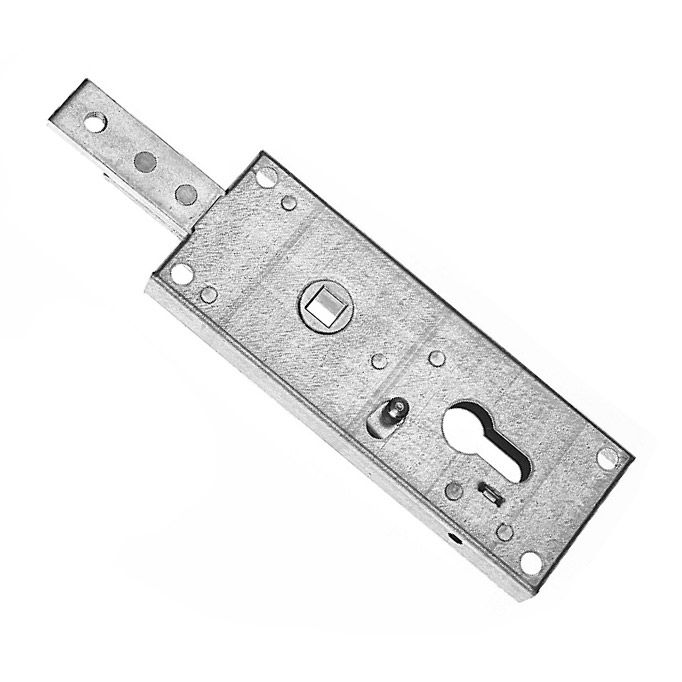

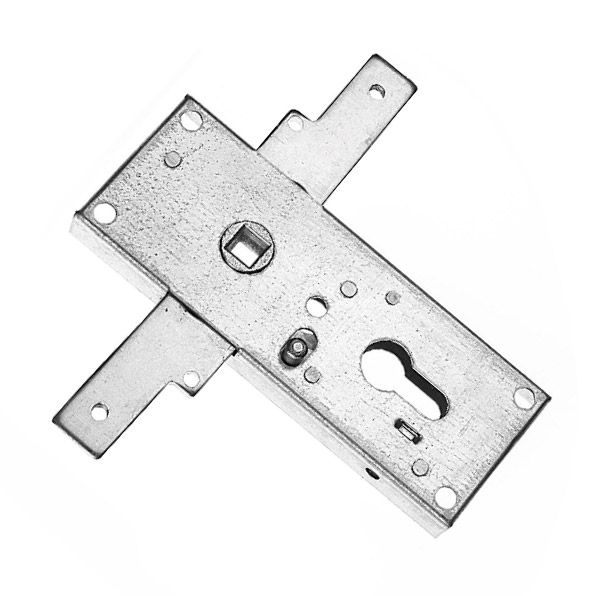

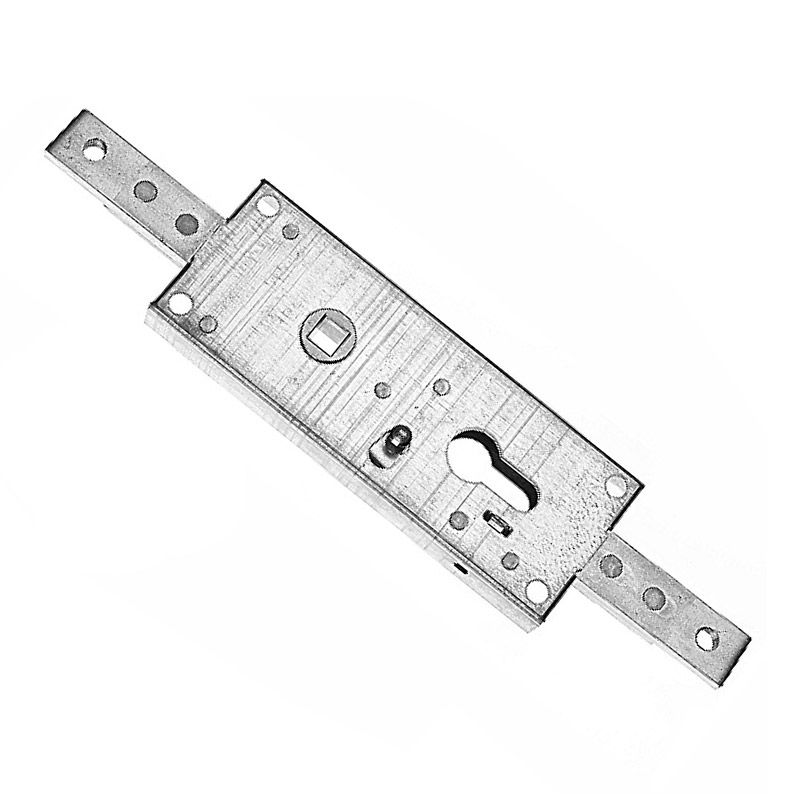

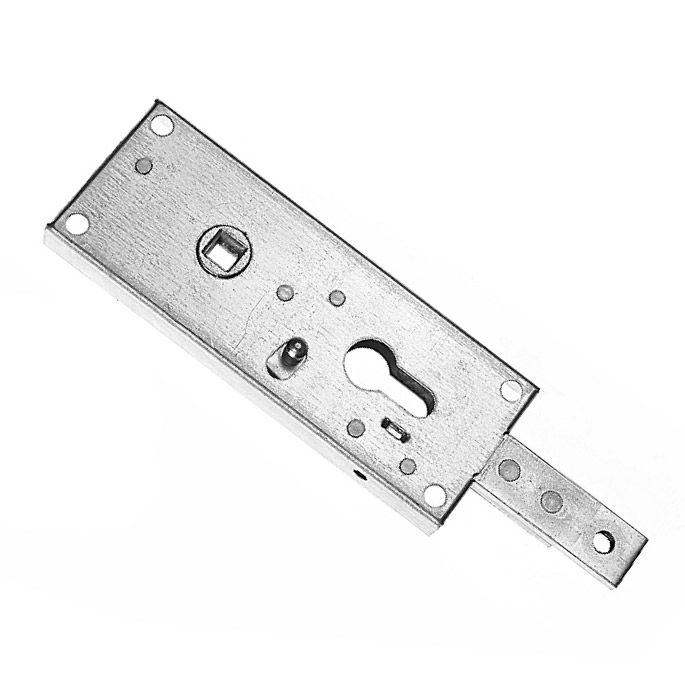

Versions	With lower hook (PN21211 and PN21201) With upper hook (PN21212 and PN21202) With lower and upper hooks (PN21213 and PN21203) With side hooks (PN21204)
Variants	With spring Without spring (PN21204 is only available without spring)
Compatible cylinders	DIN standard cylinders
Deadbolt ways	1
Distance	60 mm
Lenght	159 mm
Width	59 mm
Depth	17 mm
Handle hole	9 mm
Finish	Galvanised steel
No. of keys included	2
