The F68 mortise locks for iron mid-rail doors have 3 locking points (central, upper and lower locking points) and a double bitted mechanism, with a 4-way deadbolt.
They are a reversible model, which can be used on both right-hand and left-hand doors.
The slots are designed for the easy assembly of internal and external doors.
They are available in latch and deadbolt version and with 70 or 90 mm backset.
Finish: Stainless steel
Finiture
Acciaio inox
Con scrocco e catenaccio

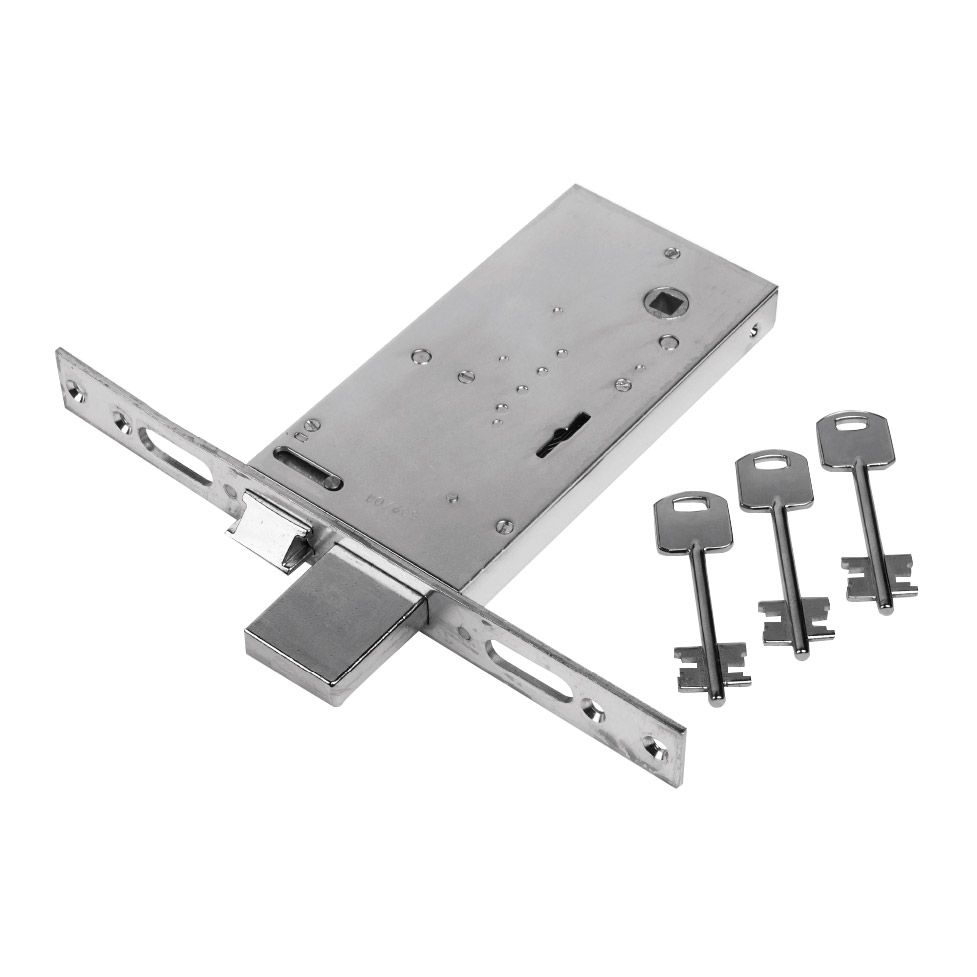

F68 - Serratura da fascia da infilare a doppia mappa 3 punti
Type of lock
Double bitted mortise lock for iron mid-rail doors
Versions
With latch and deadbolt
Locking points
3: central, upper and lower - Via return rods
Reversible
Yes (for right-hand and left-hand doors)
Deadbolt ways
4
Backset
70 mm | 90 mm
Distance
66 mm
Face plate width
28 mm
Handle hole
8 mm
Face plate cover
Included | Flat | Stainless steel material
Finish
Stainless steel
No. of keys included
2
Accessories for mounting on safety grilles and blinds included
