D81 - Narrow stile mortise lock with hook bolt

D81 narrow stile mortise locks for safety grilles and blinds have a cylinder locking mechanism, compatible with Euro-profile or cross key cylinders).

They have a swinging or hook bolt and a reversible design for use on right and left-handed doors. They are available in 25 to 35 mm backset sizes and come with a flat face plate cover.

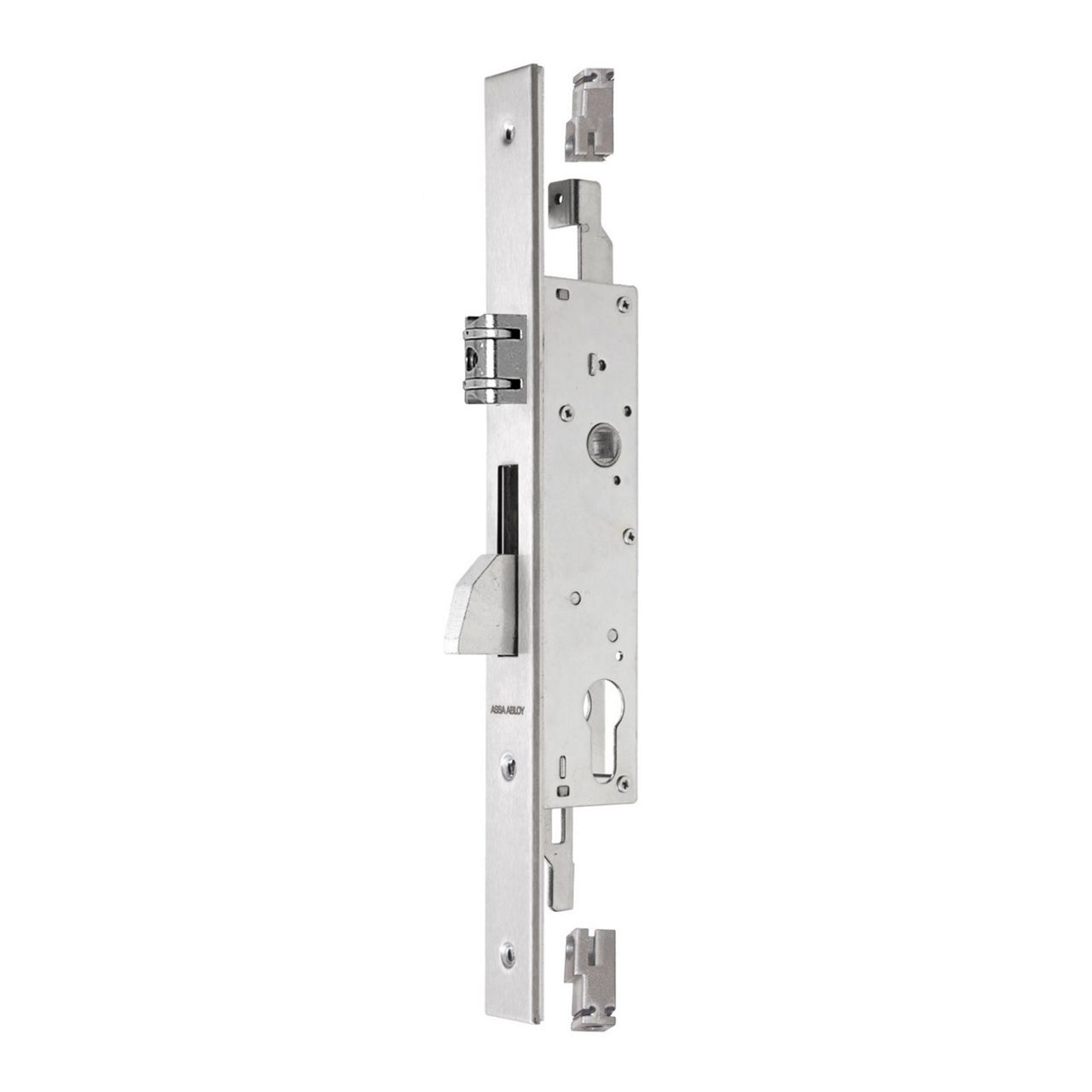

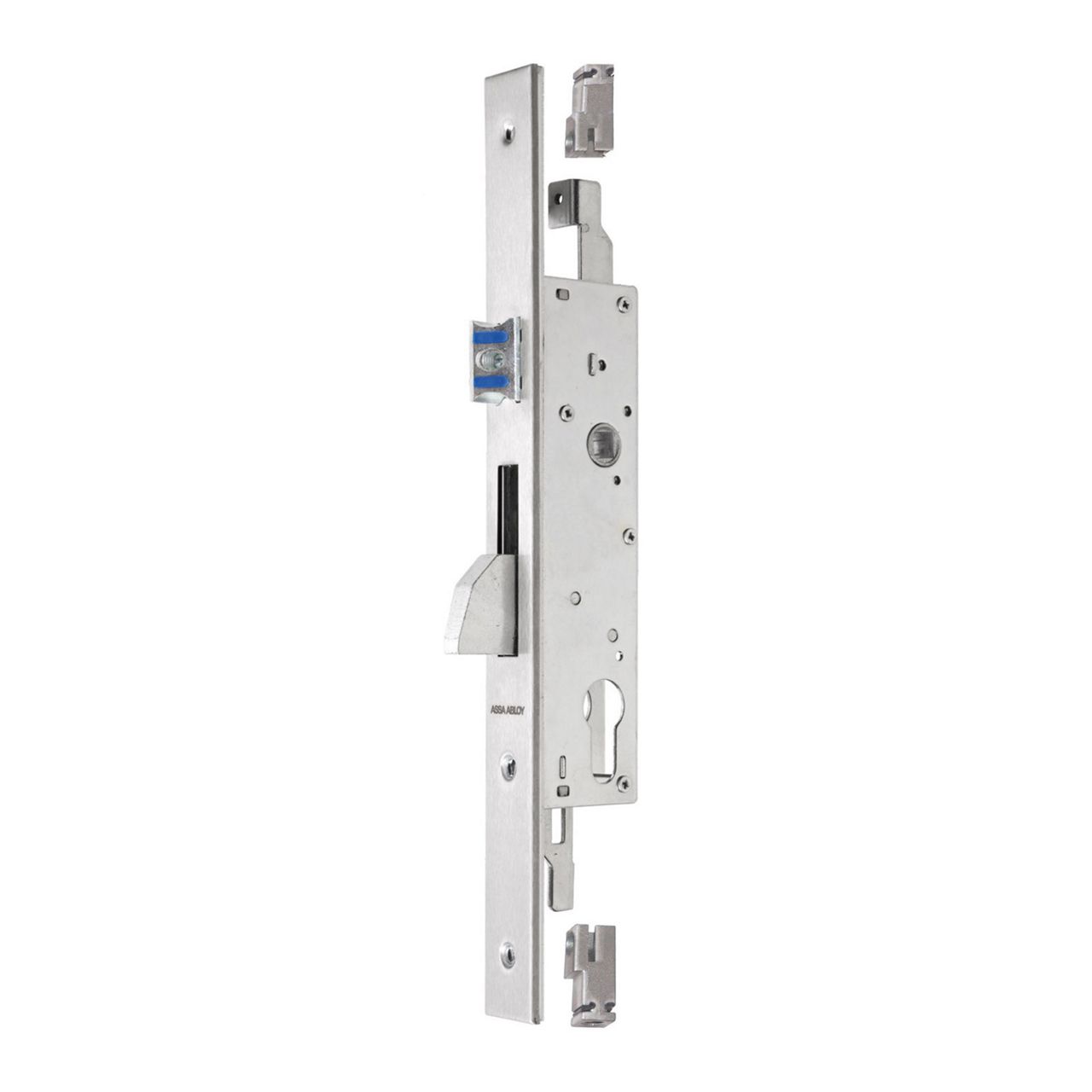

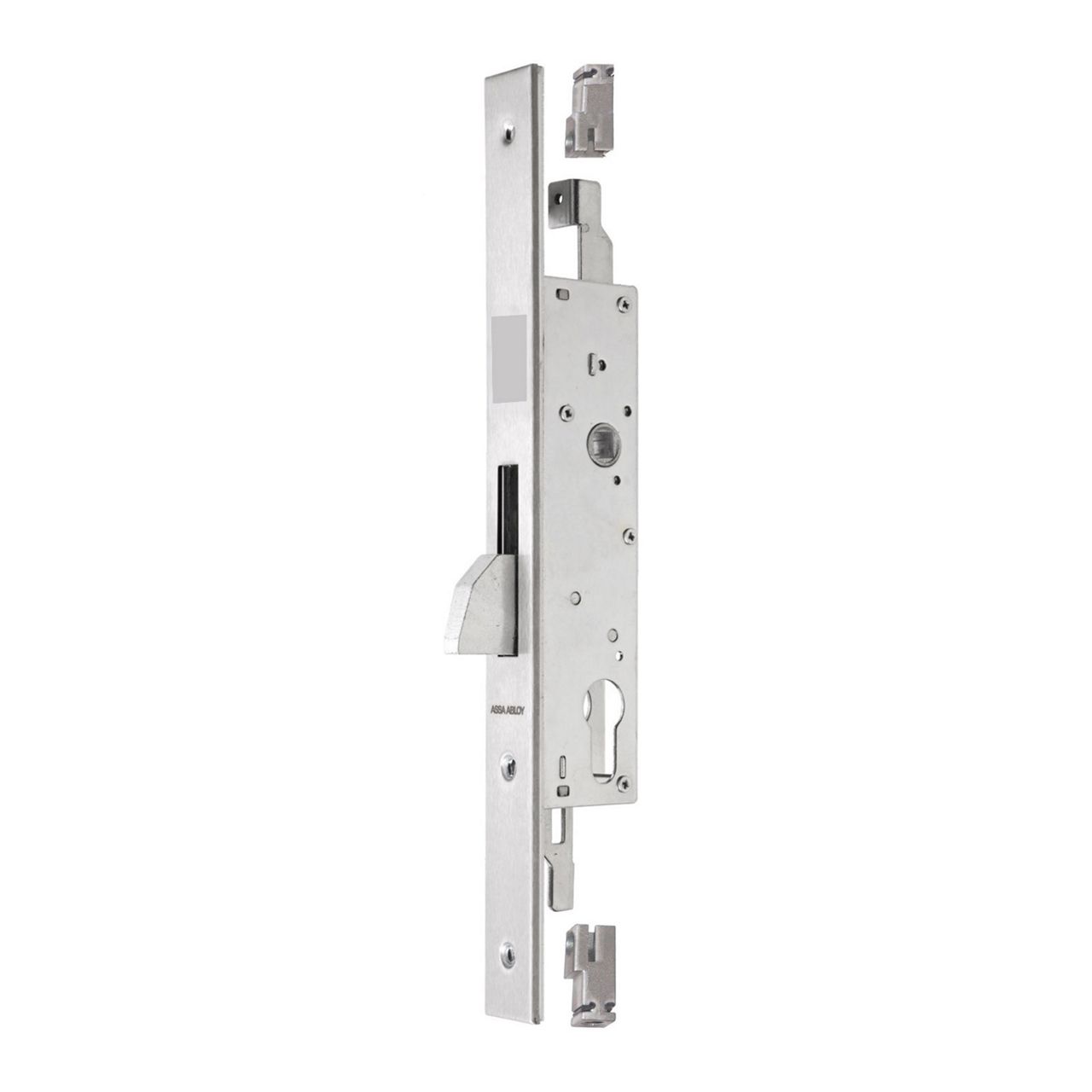

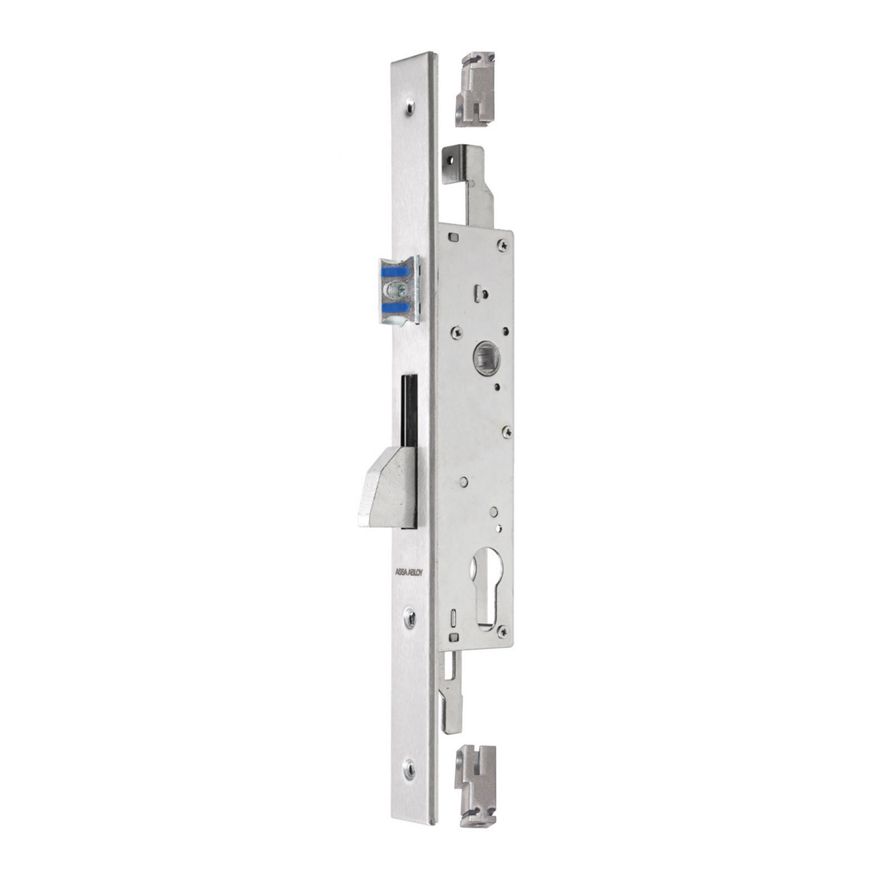

They are available in latch and bolt version. The latch can be replaced with a roller (the two accessories are interchangeable) or the latch can be removed and the model converted to a standard deadbolt-only version by occluding the hole with the cap provided. The depth of the latch and roller are adjustable.

The D81 lock's latch has a Comfort system that not only reduces the noise of the door closing, but also limits wear on the striking plate and minimises friction.

Finish: Galvanised steel (lock) - Stainless steel (face plate cover)
