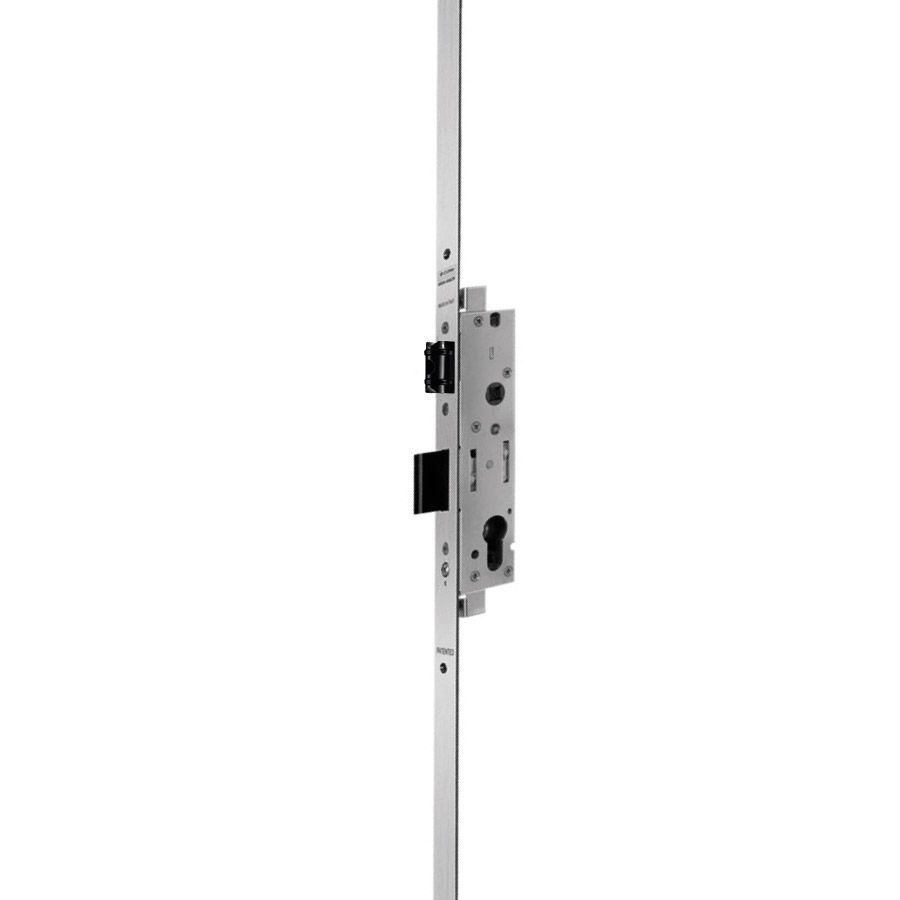

MP3 - Narrow stile multipoint gear lock with Euro-profile cylinder

MP3 narrow stile multipoint mortise locks have a gear mechanism controlled by a Euro-profile cylinder. They have 3 locking points (central, top and bottom) connected by a single face plate, which can be flat or U-shaped.

The 3 locking points have deadbolts and it is possible to replace the latch with a roller (the two accessories are interchangeable) or to extract the latch of the central locking point and transform the lock into a deadbolt-only version by occluding the hole with the cap provided. The depth of the latch and roller are adjustable.

The MP3 locks are a reversible model that can be used on both right-hand and left-hand doors. They are available with a backset of 25 to 40 mm and a central body length of 40 to 55 mm. The back of the lock is closed against the intrusion of shavings.

Finish: Galvanised steel (lock) - Stainless steel (face plate and screws)
