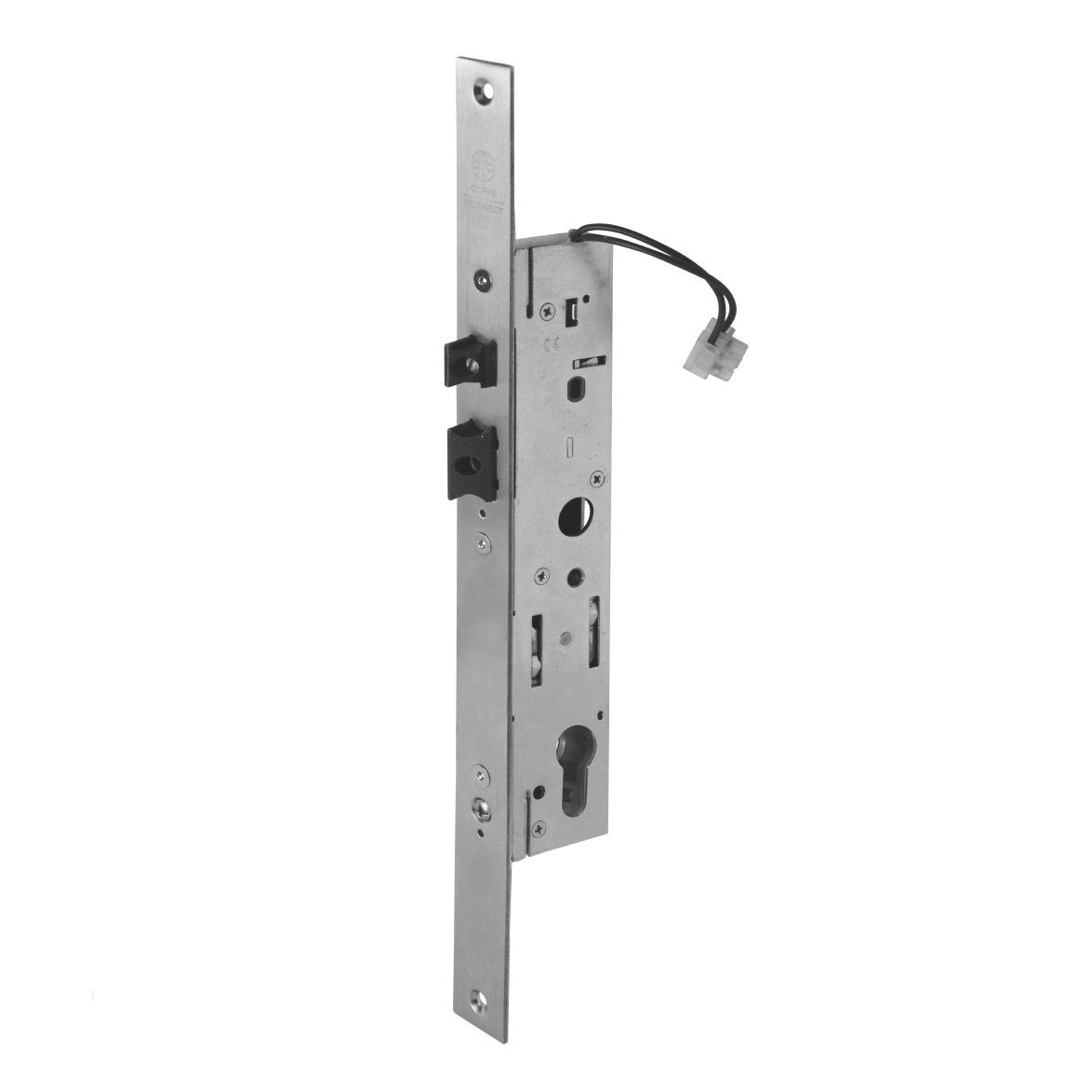

MP1 - Electrical narrow stile gear lock with Euro-profile cylinder

MP1 electrical narrow stile mortise locks have a gear mechanism controlled by a Euro-profile cylinder.

They are available in two versions to suit different locking requirements:

• with latch and deadbolt central locking system and upper and lower return rod engagements (provision for 3 locking points);
• with latch only (1 locking point).

It is possible to replace the latch with a roller (the two accessories are interchangeable) or to extract the latch and transform the 3-locking point model into a deadbolt-only version by occluding the hole with the cap provided. The depth of the latch and roller are adjustable.

The MP1 locks are a reversible model that can be used on both right-hand and left-hand doors. They are available with a backset of 25 to 40 mm and a length of 40 to 55 mm. The back of the lock is closed against the intrusion of shavings.

Finish: Galvanised steel (lock) - Stainless steel (face plate and screws)
