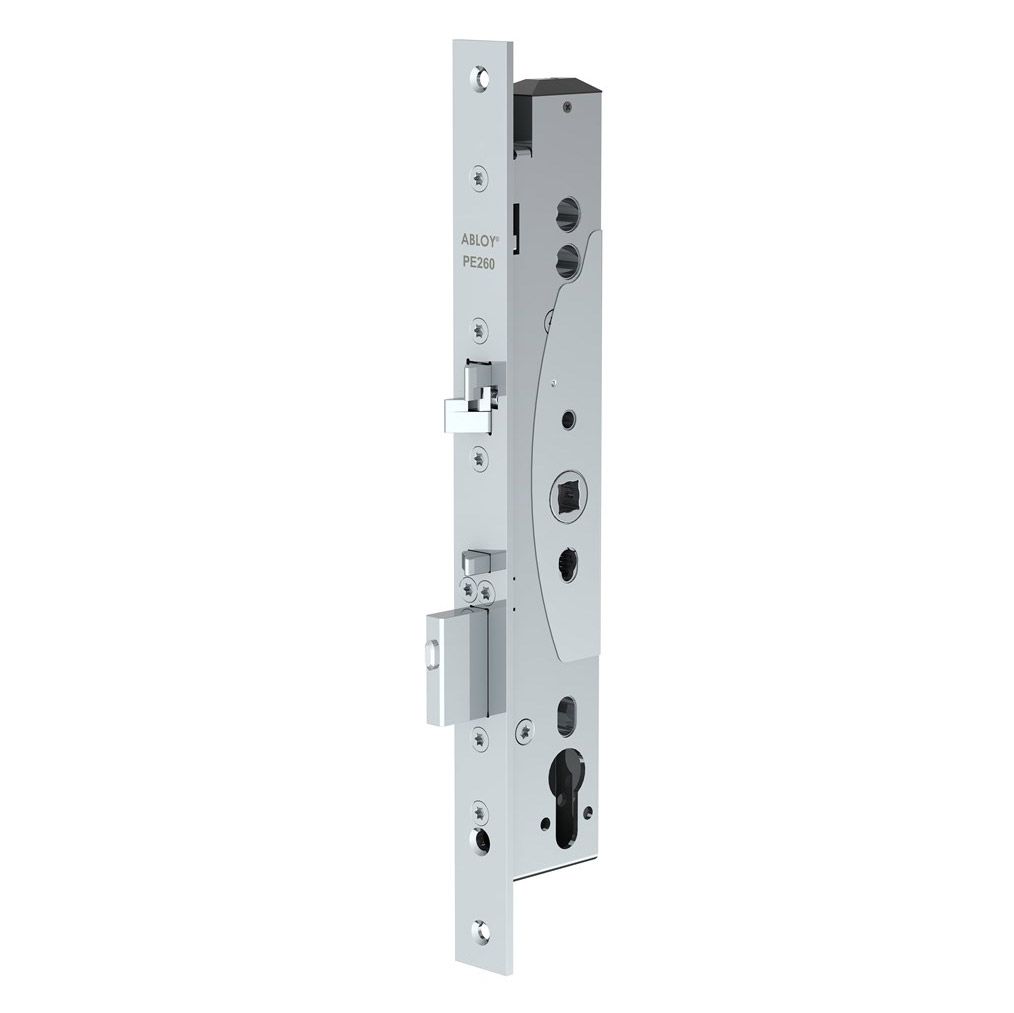

PE260 - Mechanical mortise locks for double leaf doors with microswitch

PE260 mechanical narrow stile mortise locks with microswitch are built for use on double-leaf emergency exit doors.

They are 1 locking point locks that are installed on the primary leaf. They are designed for installation on internal or external doors with aluminium profile.

They are equipped with a symmetrical latch and an automatic re-arming deadbolt, which ensures that the lock is always locked in two points. A trigger is installed on the deadbolt that allows the primary door leaf to be unlocked immediately when the secondary door leaf (counter-lock) is activated.

The door can only be opened from the outside using the cylinder, while on the inside, panic bar and cylinder always guarantee opening in case of emergency.

The double-action symmetrical latch allows use on right and left-hand doors. They are available with a 30 to 45 mm backset and have a flat forend.

The microswitch allows the lock to be monitored based on various options.
