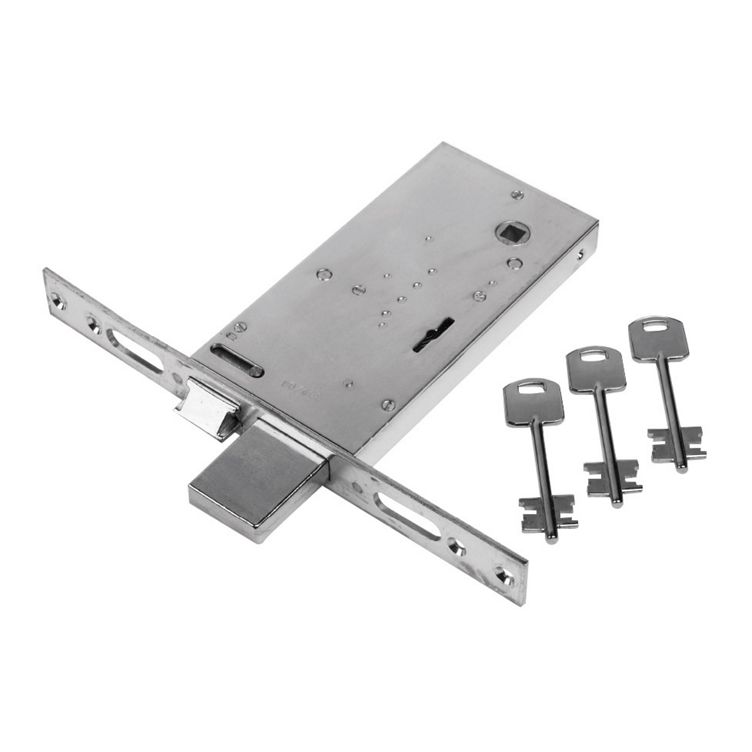

    F68 - Lock for mid-rail doors with 1 locking point

    • FEB
    • Mechanical
    • Double-bitted key

    The F68 mortise locks for mid-rail doors have a single central locking point and a double bitted mechanism, with a 4-way deadbolt.

    They are a reversible model, which can be used on both right-hand and left-hand doors.

    They are available in different versions, to best suit different uses:

    • with latch and deadbolt (with 70 or 90 mm backset)
    • with roller and deadbolt (with 70 or 90 mm backset)
    • deadbolt only (with 70 mm backset)

    Finish: Stainless steel

    Finishes

    • Stainless steel

    F68 - Lock for mid-rail doors with 1 locking point

    With latch and deadbolt

    F68 - Lock for mid-rail doors with 1 locking point
    Type of lock Double bitted mortise lock for aluminium mid-rail doors
    Versions
    • With latch and deadbolt (with 70/90 mm backset)
    • With roller and deadbolt (with 70/90 mm backset)
    • Only deadbolt (with 70 mm backset)
    Locking points 1 central
    Reversible Yes (for right-hand and left-hand doors)
    Deadbolt ways 4
    Backset 70 mm | 90 mm
    Distance 66 mm
    Lenght 70 mm backset: 165 mm
    90 mm backset: 185 mm
    Face plate width 25 mm  | 28 mm
    Handle hole 8 mm (latch and deadbolt version only)
    Face plate cover Included | Stainless steel material
    Finish Stainless steel
    No. of keys included 3
    • Technical drawings

    • F6871_TechnicalDrawing(PDF, 85 KB)
