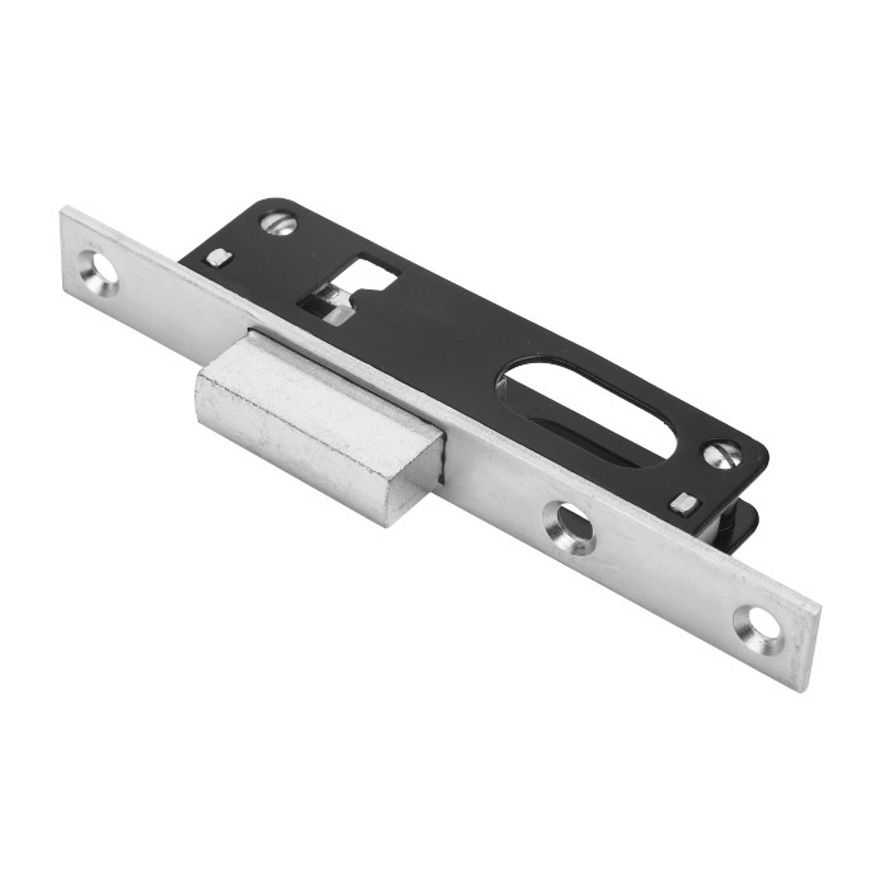

92 Series and MINI - Narrow stile locks for oval cylinder

The 91 Series MINI and 92 Series mortise locks have a single central locking point and are designed for use with an oval cylinder.

The 92 Series has a latch and deadbolt locking system, while the 91 MINI Series has deadbolt only.

Finish: Stainless steel (Face plate) - Black (lock)

Finish

Type of lock	Narrow stile mortise locks with deadbolt for oval cylinder
Versions	91 Series MINI: with deadbolt only 92 Series: with latch and deadbolt
Locking points	1 central
Compatible cylinders	Oval cylinders
Backset	14.5 mm
Distance	70 mm (for 92 Series only)
Lenght	84 mm (91 Series MINI) \| 158 mm (92 Series)
Width	25.5 mm (92 Series) \| 26 mm (91 Series MINI)
Face plate width	91 Series MINI: 16 mm \| 20 mm 92 Series: 16 mm \| 22 mm
Handle hole	8 mm (for 92 Series only)
Face plate	Stainless steel material
Lock finish	Black
