564 Plus Series

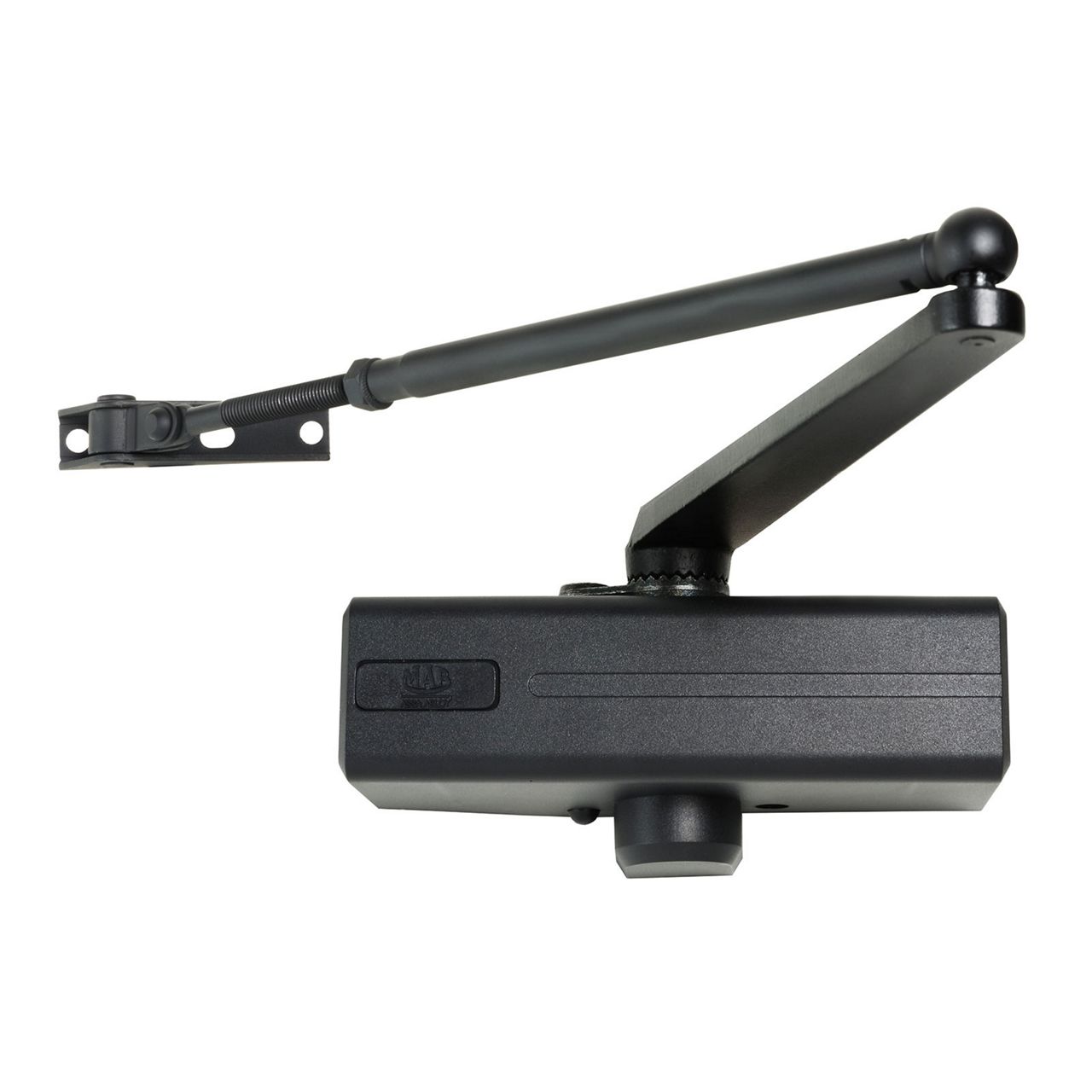

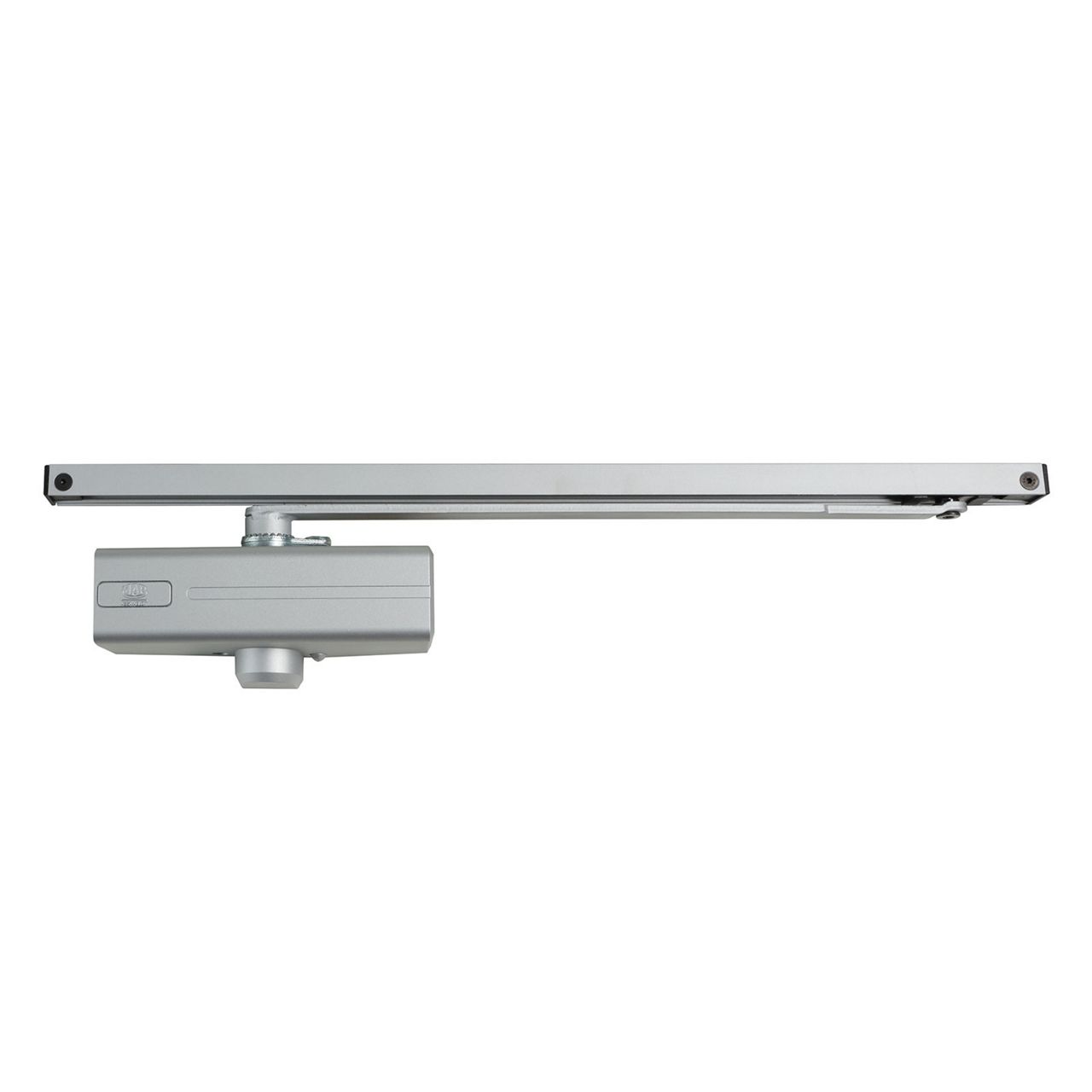

The 564 Plus Series is a unique overhead door closer with rack-and-pinion technology and integrated hold open device. It is available with both standard link arm and guide rail.

It has a universal design for regular mounting (pull side) or reversed mounting (push side) and variable closing force sizes 2/3/4/5 (2 with guide rail) accoding to EN 1154 standards.

It is suitable for 850-1250 mm wide door leafs (950 mm only with guide rail).

The integrated hold open device is easily adjustable precisely to the desired angle. It is not suitable for fire-rated doors.

Equipped with thermostatic valves for indipendent hydraulic control of closing speed and final latch. The latch angle is easily reduced by turning the forearm, up to its elimination (soft closing). The possibility to ensure a powerful latch also from an arc of just a few degrees guarantees reduced noisy action in case of hard-to-latch locks.

Finishes: White - Brown - Silver - Black - Beige. Other finishes may be available on request.
