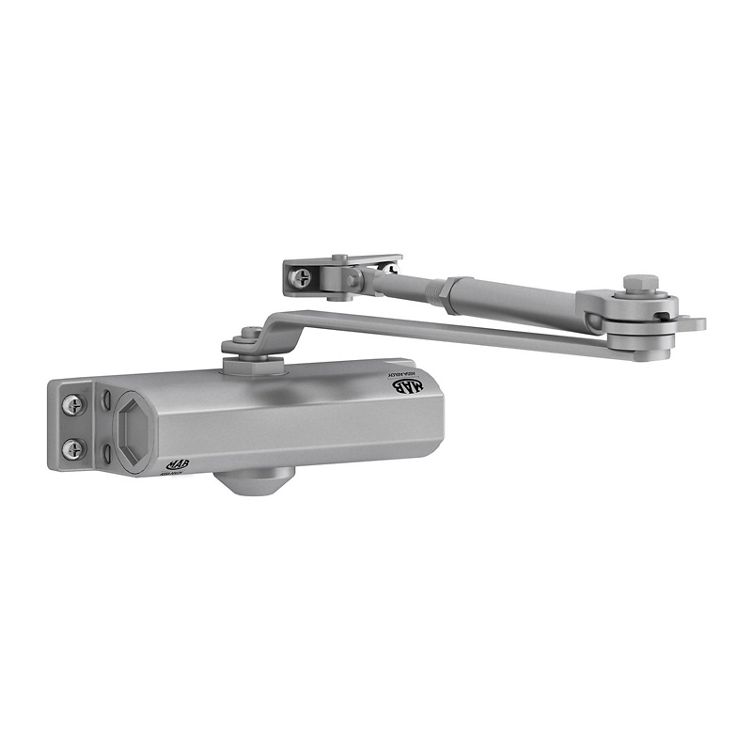

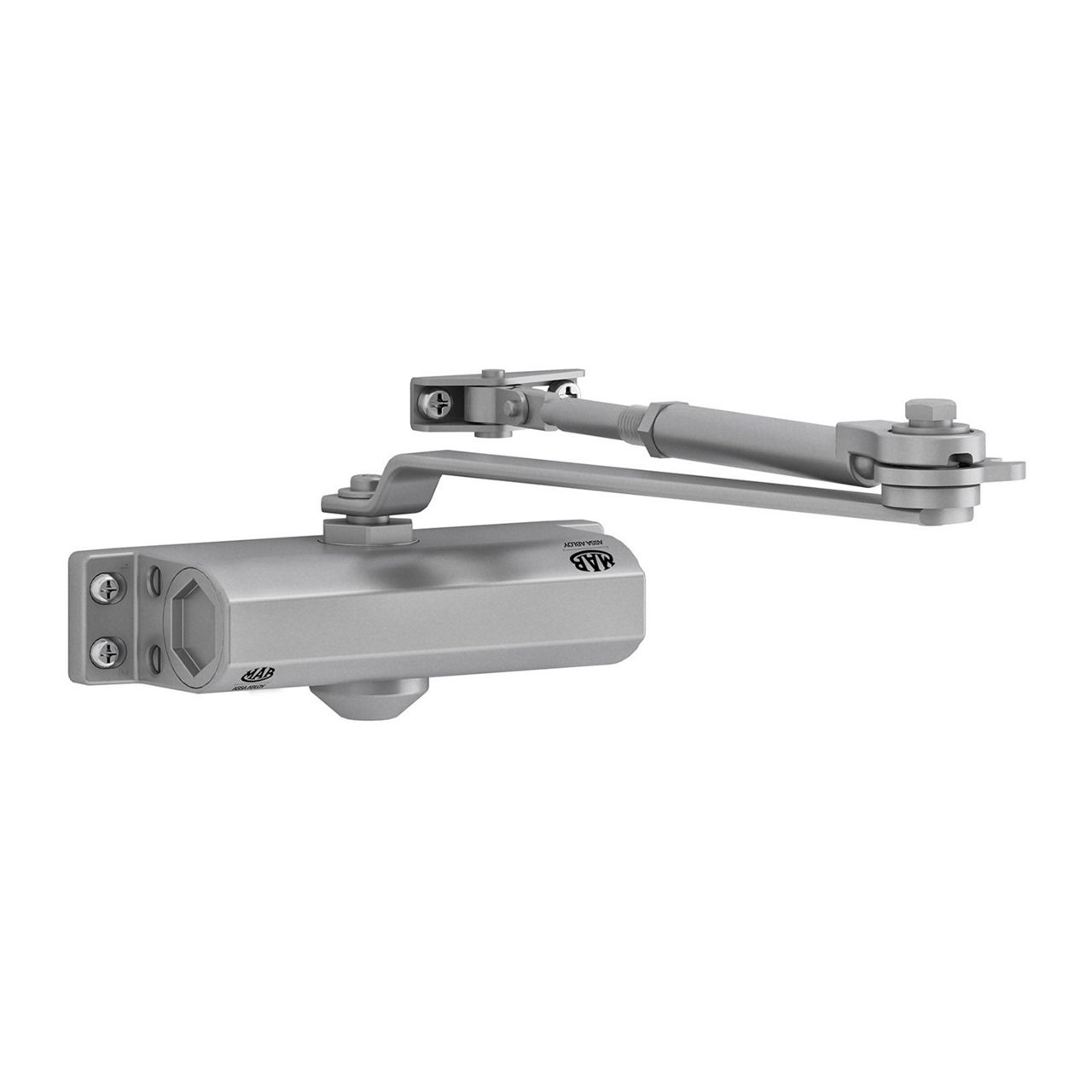

50 Series

The 50 Series is an overhead door closer with rack-and-pinion technology and standard link arm suitable for many applications up to 1100 mm width and 80 kg hinged doors.

Variable closing force 2/3/4 accoding to EN 1154 standards.

Robust to resist at strong stress and abuse, it's suitable for fire rated doors and for right and left doors.

Equipped with two thermostatic valves for latch and speed control and with buttonholes for body fixation (to solve installation mistakes and to keep the retrofit with old installations).

Variants:

• With standard link arm
• With hold open link arm

Finishes: White RAL 9016 - Brown RAL 8019 - Silver RAL 9006 - Black RAL 9004 - Beige RAL 1015.
