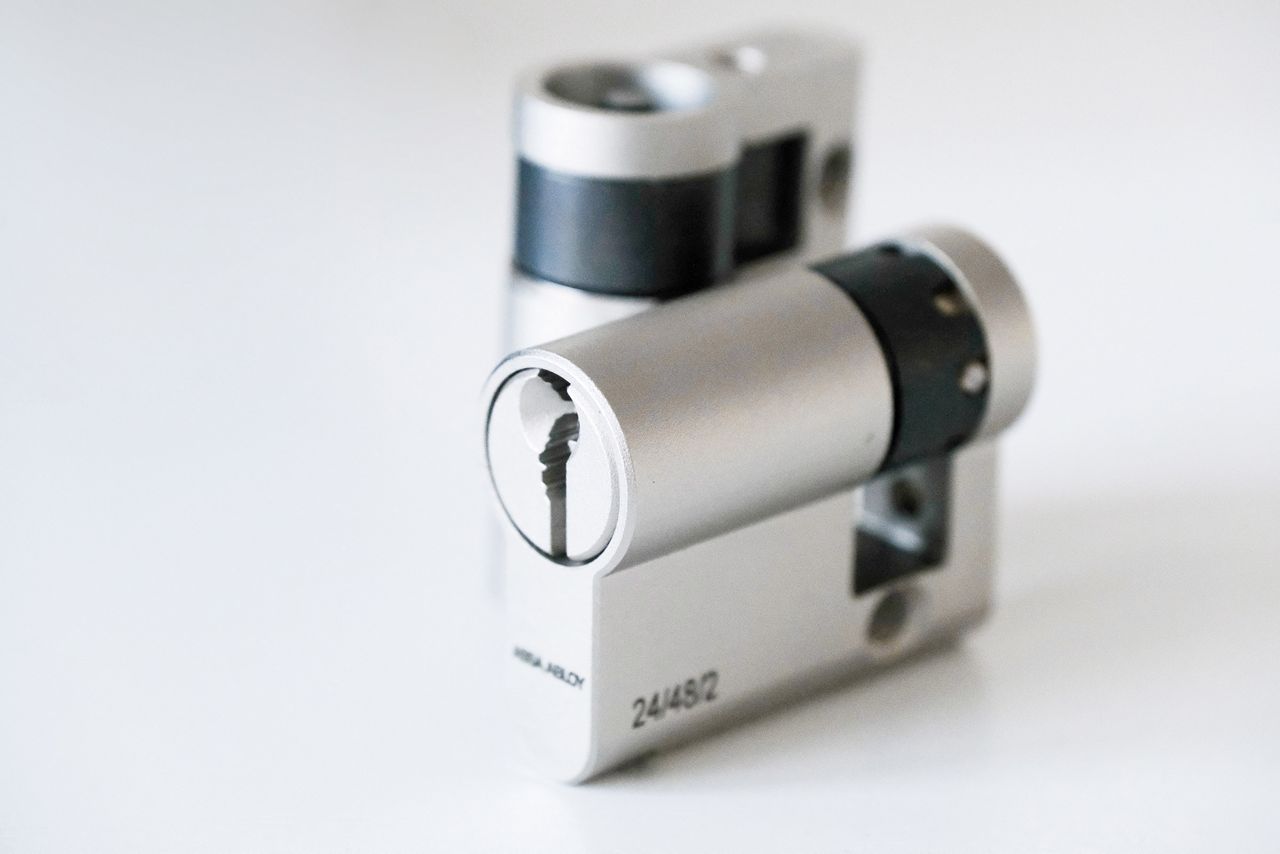

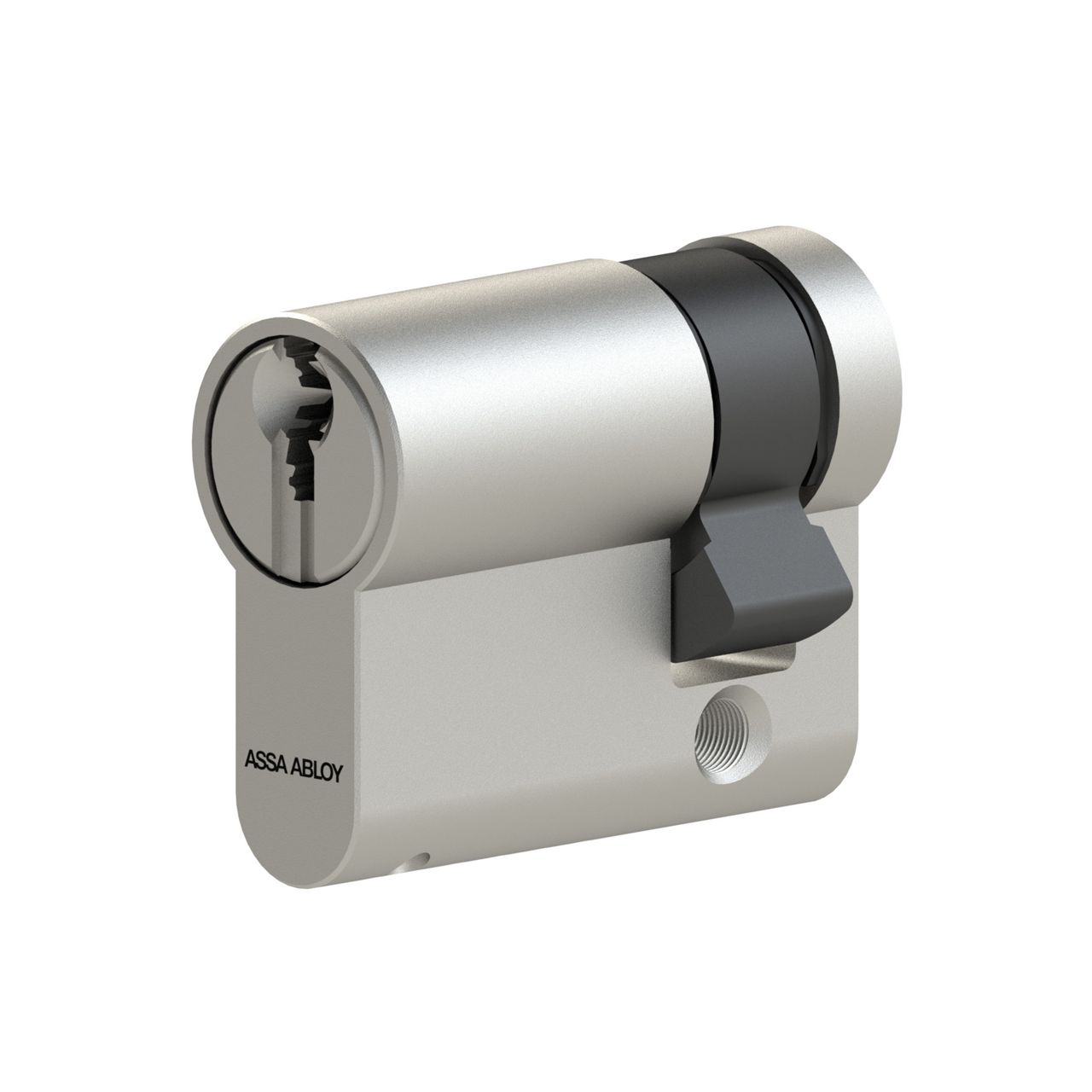

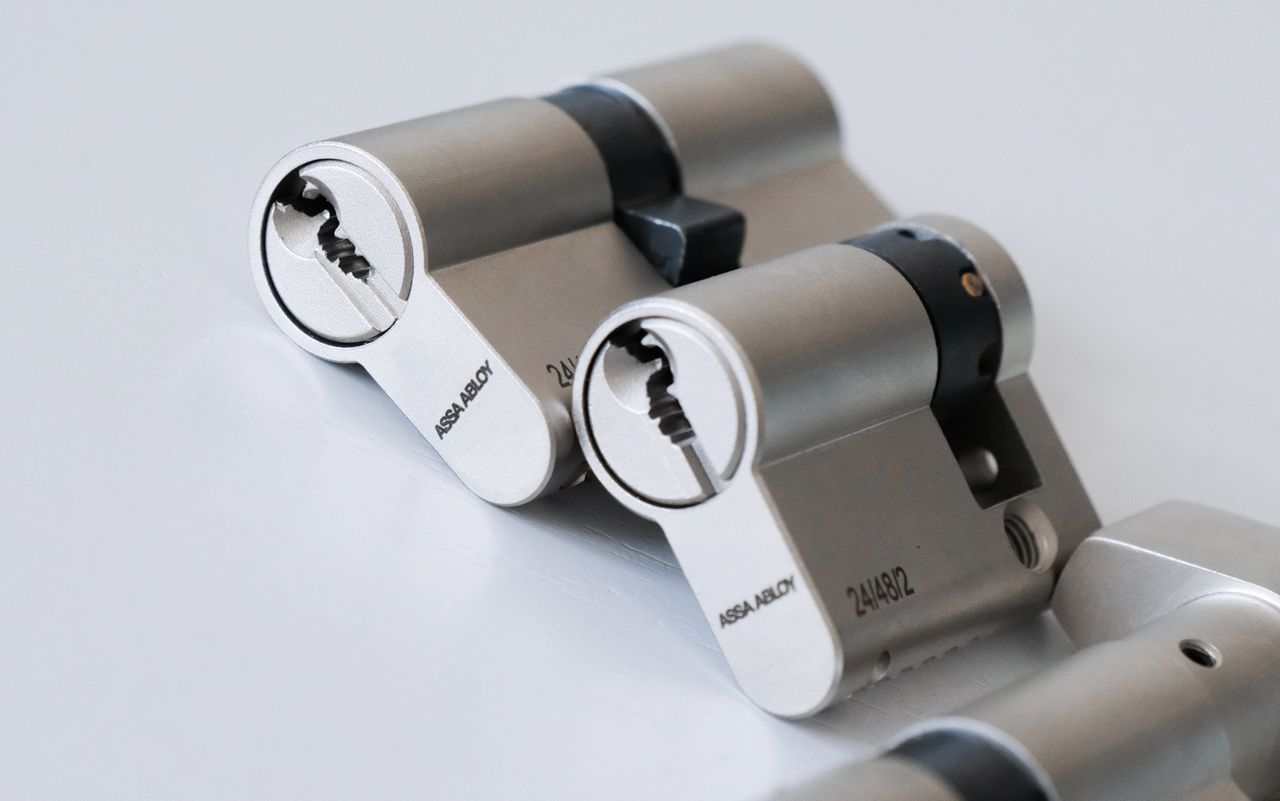

CYS10 - Half Cylinder

Highly durable 6-pin cylinder with the performance to secure your building. Keep your interior spaces secure with the CYS10 Half Cylinder.

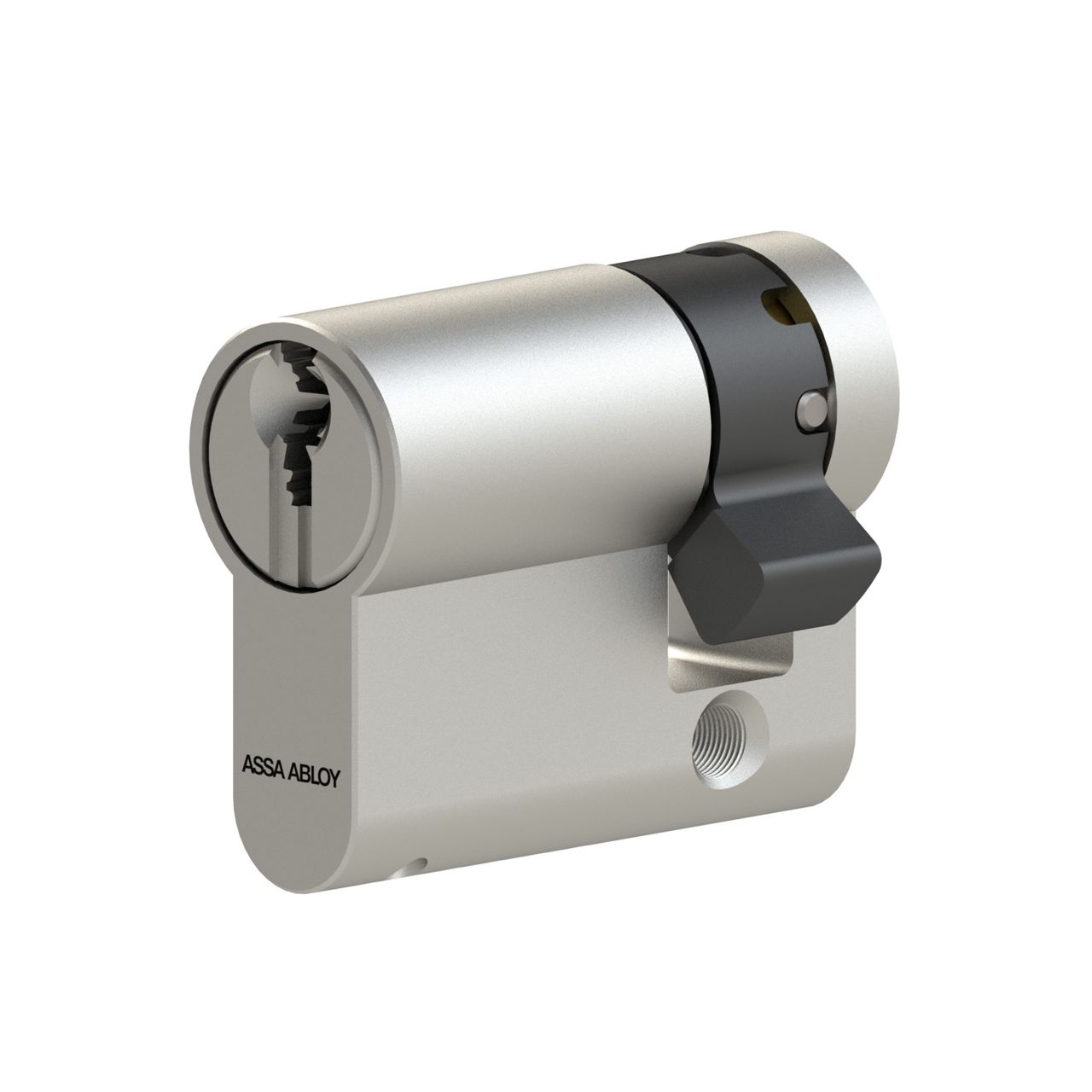

The optional multi-position cam allows to turn the cam into the application's required position.

Applications:

Optional functionality:

Finishes

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.

Security	EN 1303:2015 tested, 1 6 – B – C 6 0 \| Cam DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-bump (also for KA)
Keying	Sawn key design \| Keyed to differ (KD) \| Keyed alike (KA) \| Master key system (MKS)
Number of keys	KD: 3 keys \| KA/MKS: according to order
Max. number of effective key differs	144,729
Number of pins	6
Raw material	Brass
Finish	Satin nickel \| Polished brass (on request)
Cylinder length	Minimum: 27/10 mm \| Maximum: 80/10 mm \| Increments: 5 mm (starting from 30/10 mm)
Weight	161 g (length 30/10 mm)
Standard functionality	Construction key \| Adjustable cam (8 positions)
