CYS10 - Outer fixed and inner KIK cylinders

ASSA ABLOY

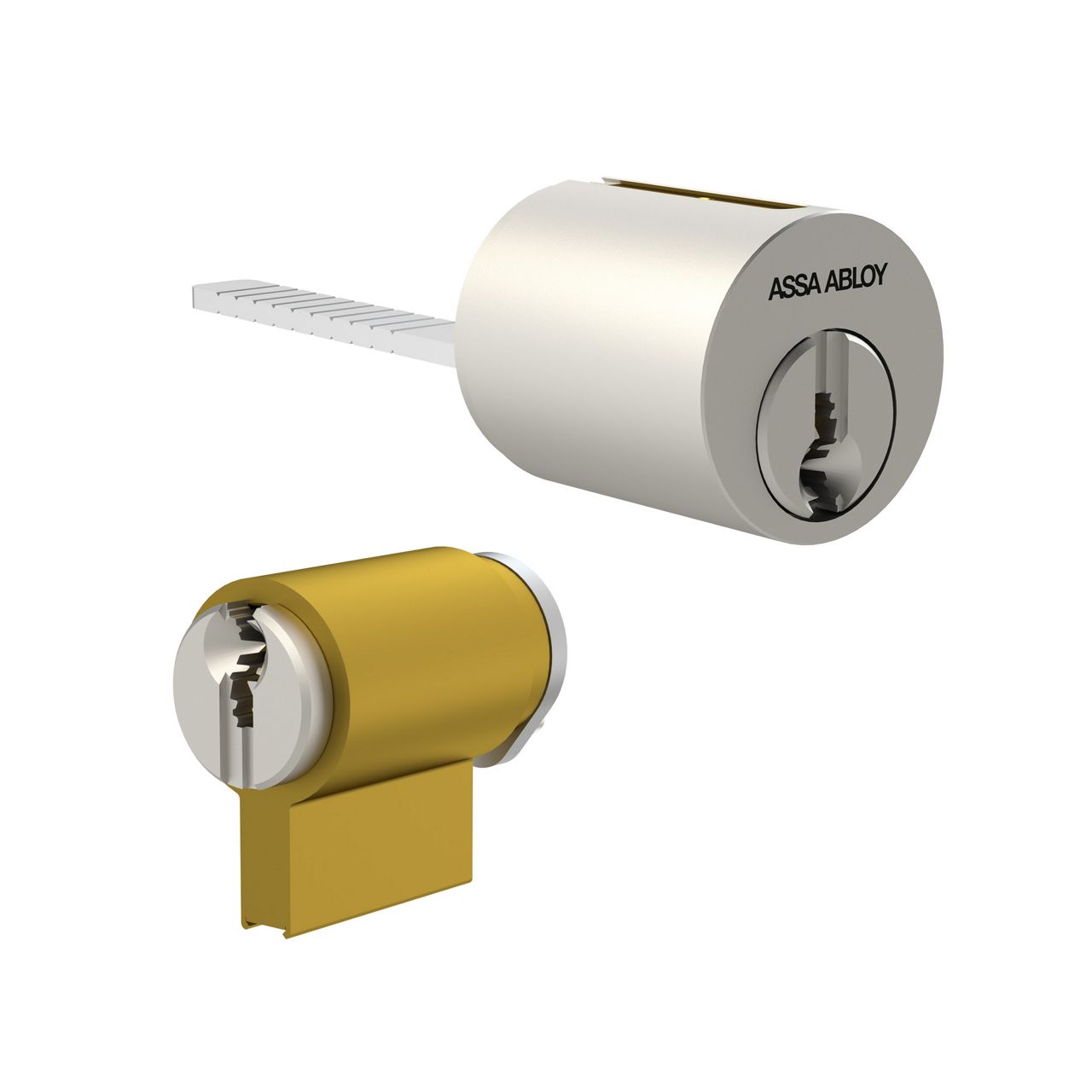

This pair of CYS10 cylinders is designed for use with electric rim locks fitted to iron gates. The kit consists of:

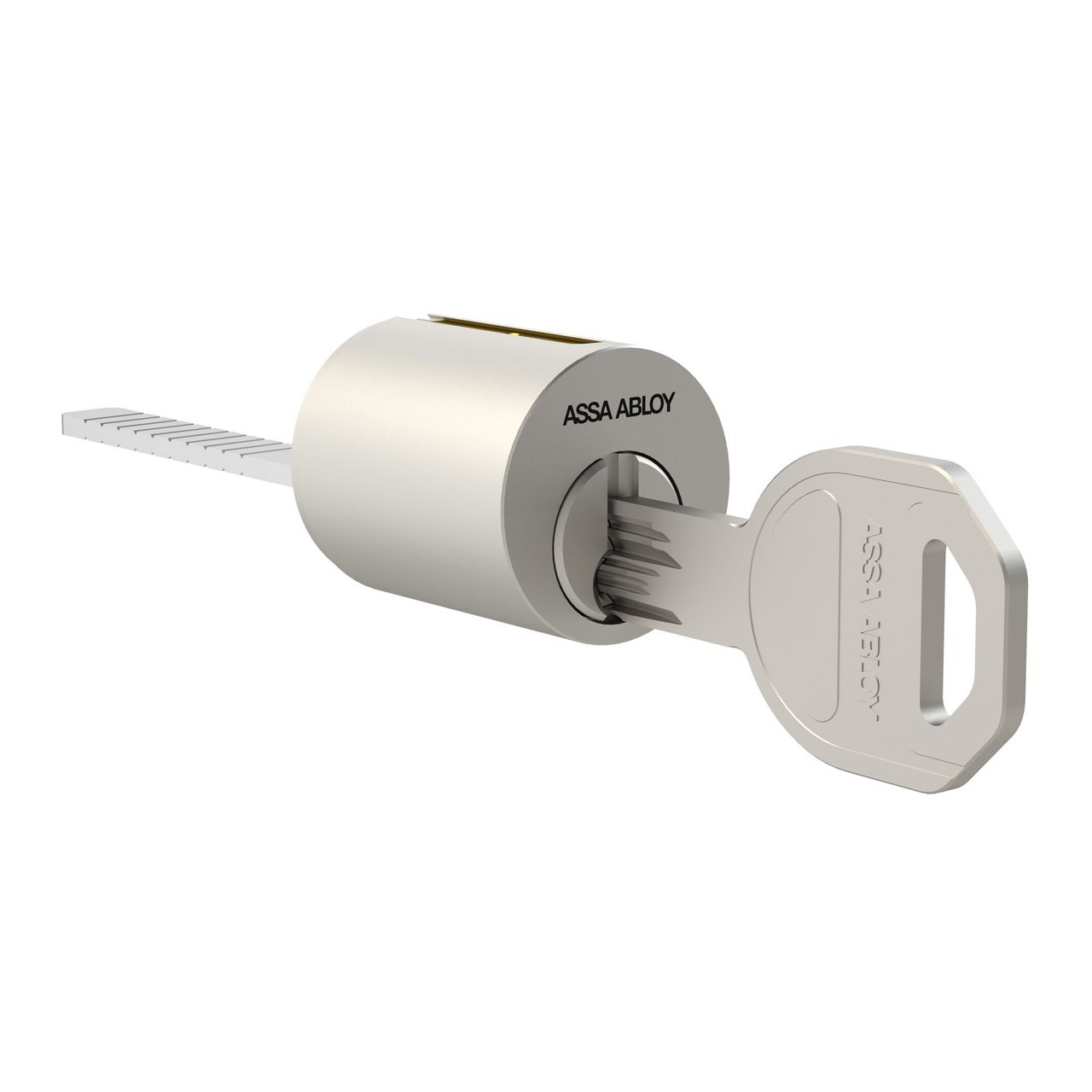

Fixed cylinder (to be fitted on the outside of the door)
KIK (Key In Knob) cylinder (to be fitted on the inside of the door)

This set of cylinders is compatible for retrofitting the most advanced locks on the market.

Applications:

Iron gates (inner and outer side)
Master Key System (MKS), Keyed Alike (KA), Keyed differ (KD)

Finishes

Satin nickel

CYS10 - Outer fixed and inner KIK cylinders

1 of 3

Progettato per durare nel tempo
Design durevole con resistenza alla corrosione di 96 ore e testato per 300.000 cicli di blocco/sblocco.

Application	Electric rim locks (for iron gates)
Suitable for retrofitting	CISA 1A721 (ElettriKa)
What's in the kit	Outer fixed cylinder Inner KIK cylinder
Keying	Sawn key design \| Keyed to differ (KD) \| Keyed alike (KA) \| Master key system (MKS)
Number of keys	KD: 3 keys \| KA/MKS: according to order
Max. number of effective key differs	144.729
Number of pins	Outer cylinder: 6 Inner cylinder: 6
Raw material	Brass
Finish	Satin nickel
Outer fixed cylinder dimensions	Rod length: 48 mm Outer body diameter: 25 mm Total body lenght: 30 mm
Inner KIK cylinder dimensions	Total body lenght: 30,45 mm
