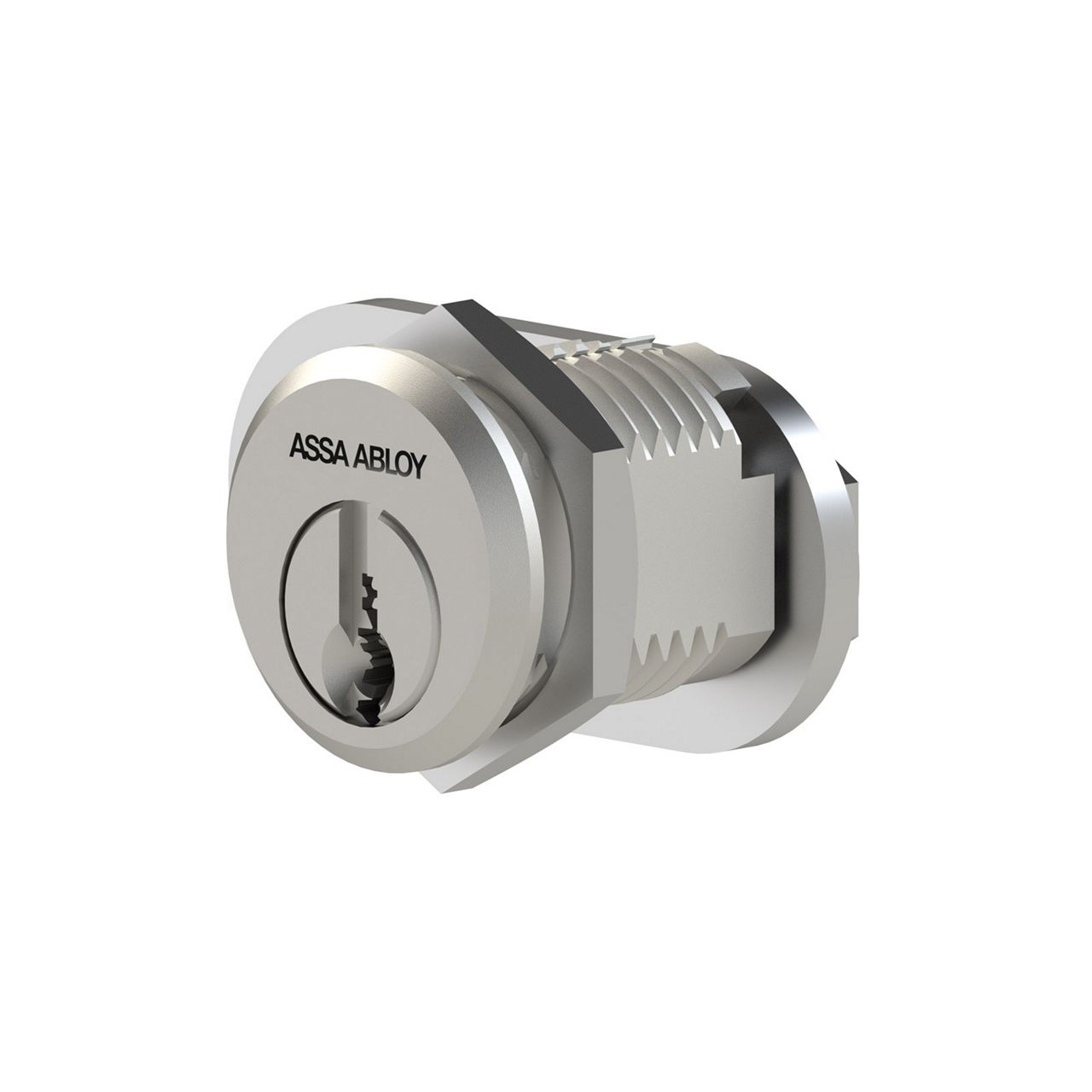

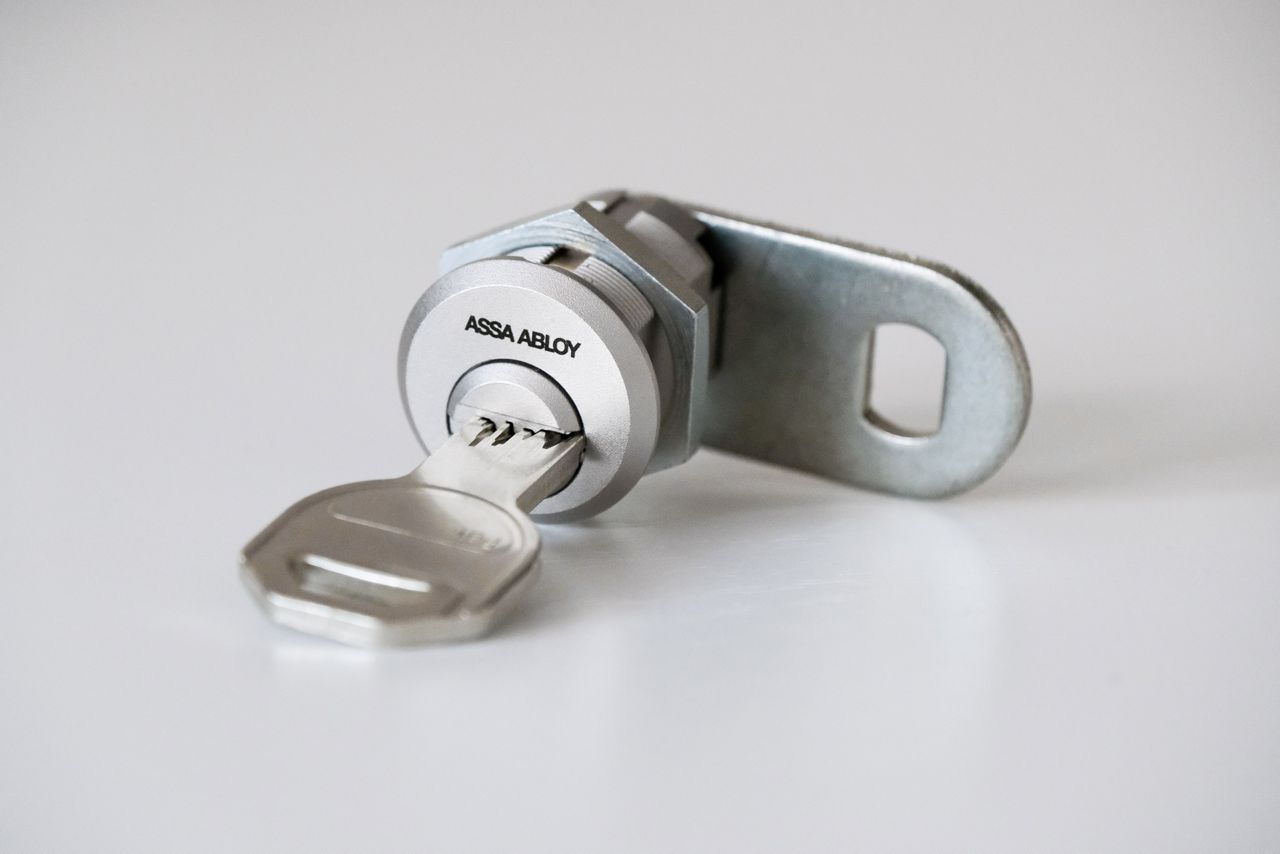

CYS10 - Cam Lock

Keep sensitive documents and possessions safe. Secure and unlock your letterbox, cabinets and drawers with one single key.

When in the unlocked position, the CYS10 Cam Lock retains the key to prevent your possessions being left at risk.

Applications:

Finishes

Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.

Security	EN 1303:2015 tested, 1 6 – B – C 6 0 \| Cam DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-bump (also for KA)
Keying	Sawn key design \| Keyed to differ (KD) \| Keyed alike (KA) \| Master key system (MKS)
Number of keys	KD: 3 keys \| KA/MKS: according to order
Max. number of effective key differs	144,729
Number of pins	6
Raw material	Brass
Finish	Satin nickel \| Polished brass (on request)
Outer diameter	27 mm
Body width	34,6 mm
Weight	210 g
