CY110 - Padlock

A trusted, robust padlock for multiple applications. Secure almost anything with the CY110 Padlock, inside or outdoors.

Suitable for sheds, gates, fences, lockers, storage boxes, bike chains, and more.

When in the unlocked position, the CY110 Padlock retains the key to prevent your possessions being left at risk.

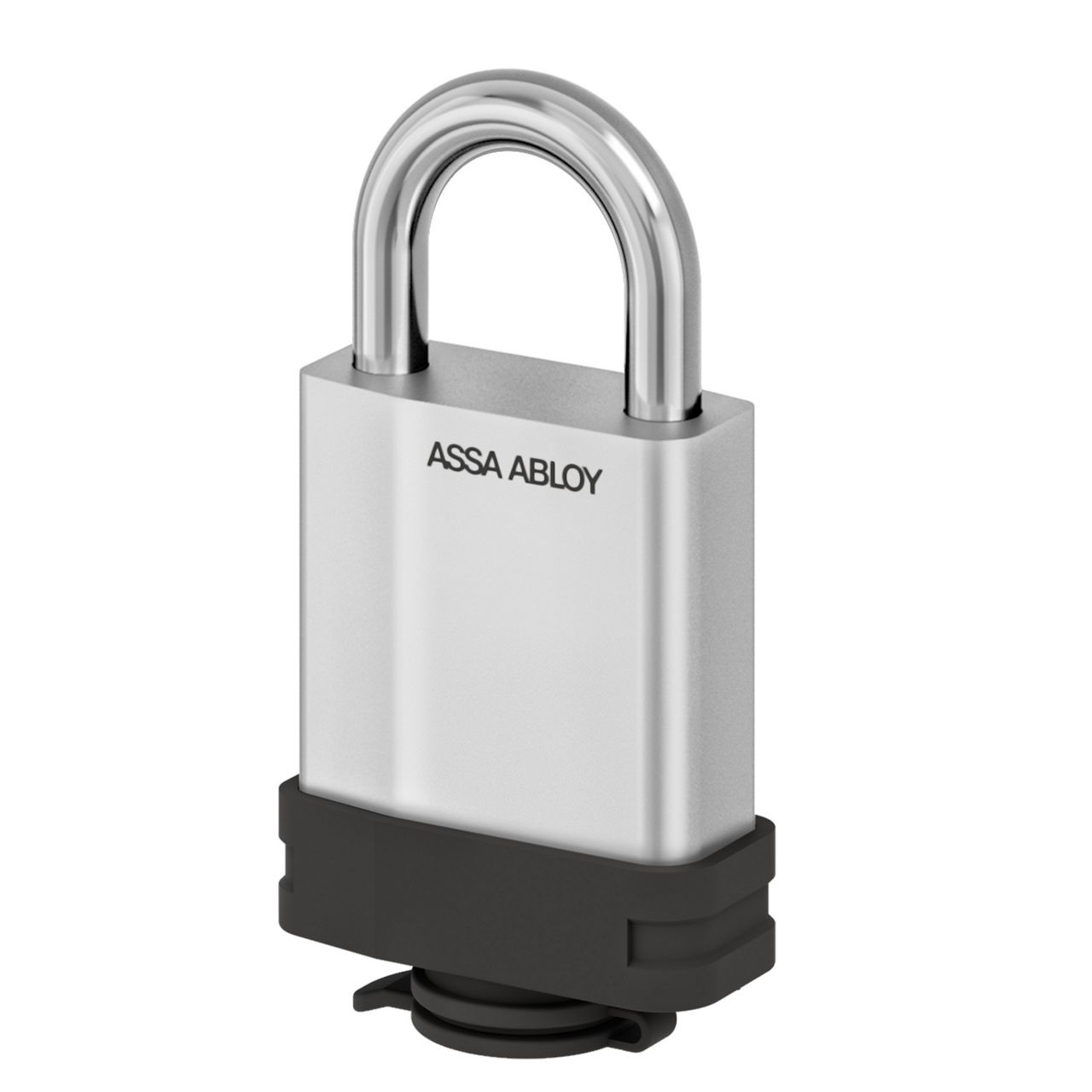

The optional dust cover increases corrosion resistance to 240 hours.

Applications:

Optional functionality:

Finishes

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).

Security	EN 1303:2015 tested, 1 6 – B – C 5 0 \| Cam DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-bump (also for KA)
Keying	Dimple security design \| Keyed to differ (KD) \| Keyed alike (KA) \| Master key system (MKS)
Number of keys	KD: 3 keys \| KA/MKS: according to order
Max. number of effective key differs	92,232
Number of pins	6 active + 5 passive (upper and lateral)
Raw material	Body: Brass \| Shackle: Hardened Boron Steel
Finish	Satin nickel
Body dimensions	Width: 48 mm \| Length: 56 mm \| Thickness: 20 mm
Shackle diameter	8 mm
Shackle clearance	25 mm \| 50 mm \| 75 mm
Weight	416 g (25 mm shackle clearance)
Optional features	Dust cover (240 hours salt spray test conformance) \| Key retaining
