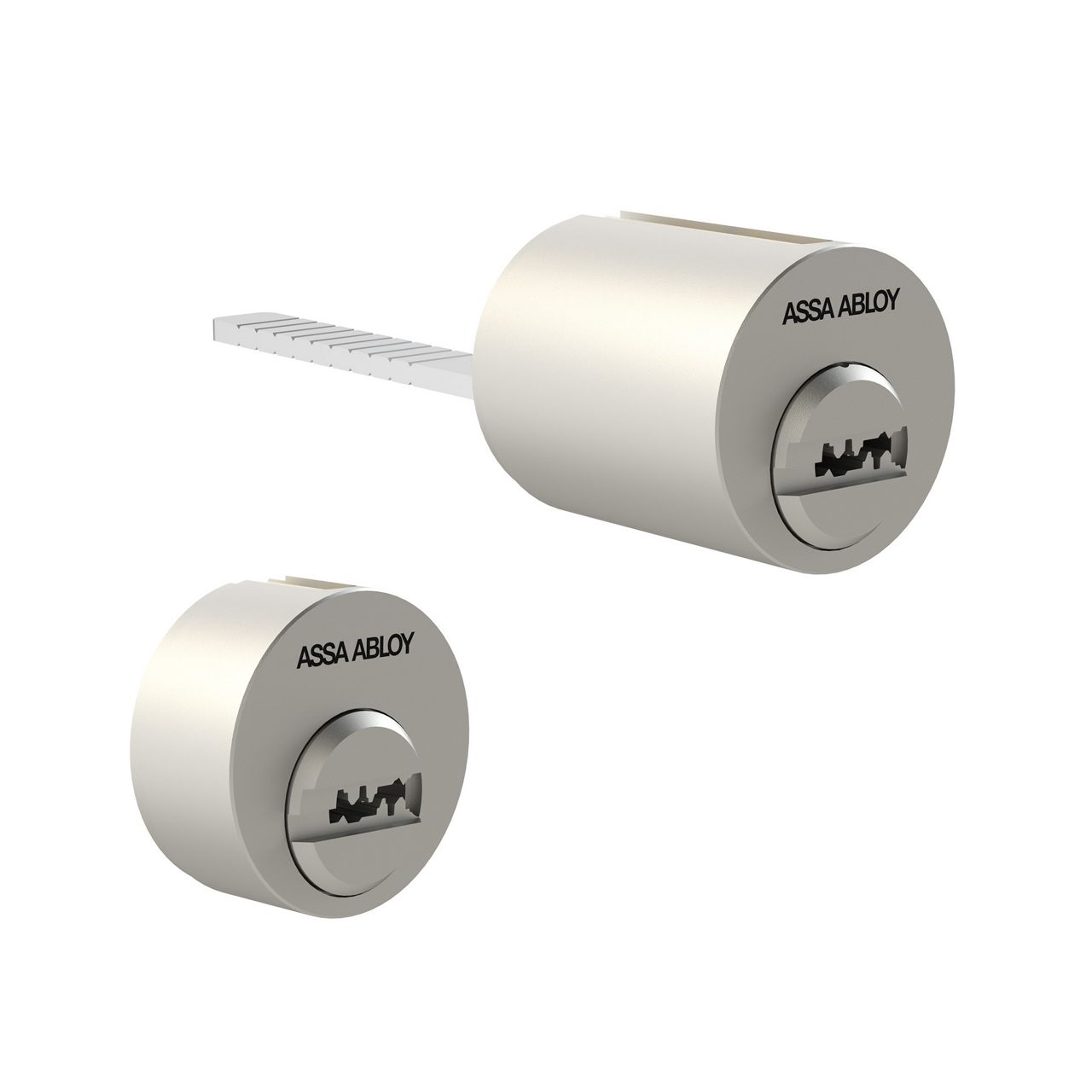

CY110 - Outer fixed and inner round cylinders

ASSA ABLOY

This pair of CY110 cylinders is designed for use with electric rim locks fitted to iron gates. The kit consists of:

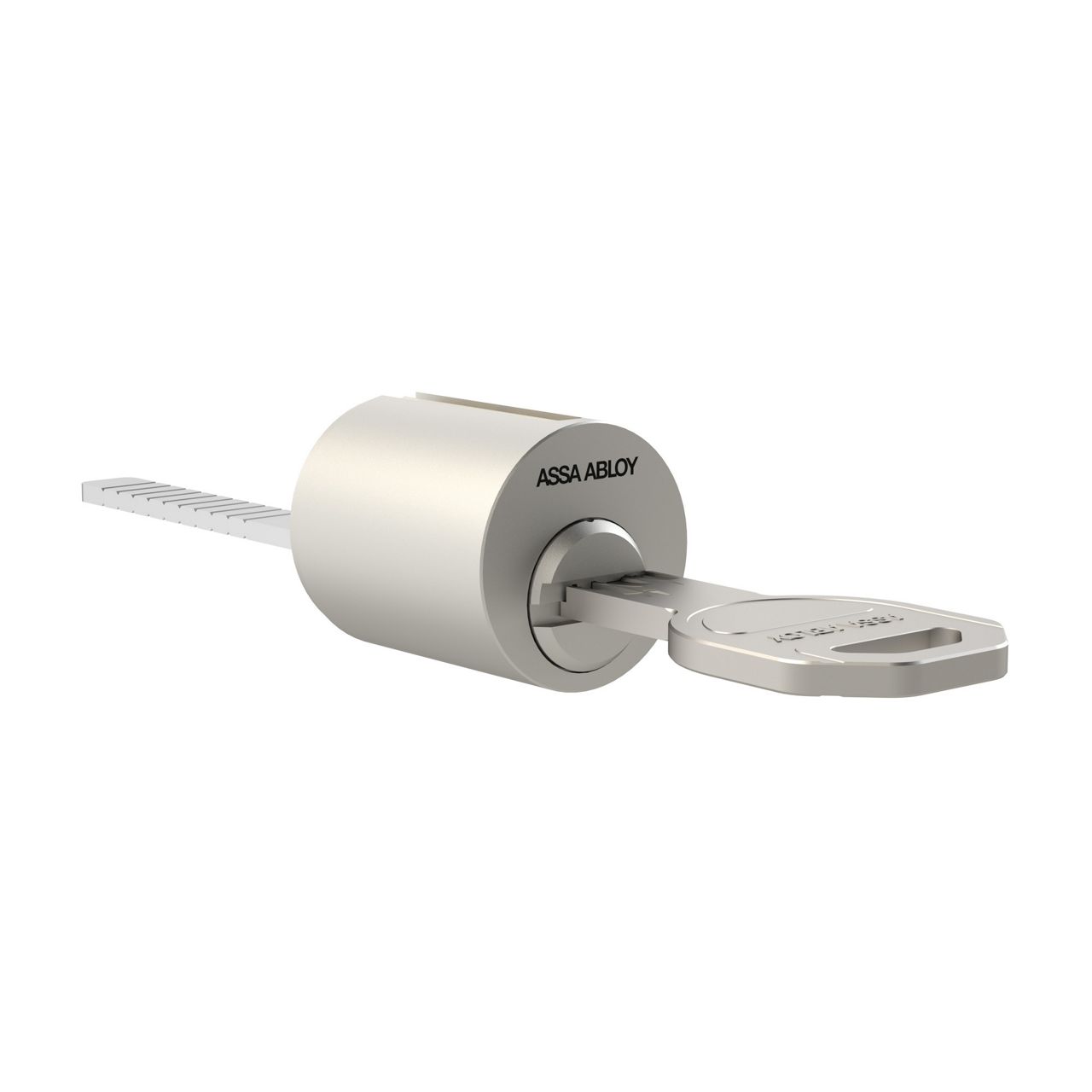

Fixed cylinder (to be fitted on the outside of the door)
Round cylinder (to be fitted on the inside of the door)

This set of cylinders is compatible for retrofitting the most common locks on the market.

Applications:

Iron gates (inner and outer side)
Master Key System (MKS), Keyed Alike (KA), Keyed differ (KD)

Finishes

Satin nickel

CY110 - Outer fixed and inner round cylinders

1 of 3

Reliable construction
Durable design with 96-hour corrosion resistance and tested for 500,000 lock/unlock cycles.

Application	Electric rim locks (for iron gates)
Suitable for retrofitting	CISA 11721 \| Iseo Series 5 \| Corni Multipla
What's in the kit	Outer fixed cylinder Inner round cylinder
Keying	Dimple security design \| Keyed to differ (KD) \| Keyed alike (KA) \| Master key system (MKS)
Number of keys	KD: 3 keys \| KA/MKS: according to order
Max. number of effective key differs	92,232
Number of pins	Outer cylinder: 6 active + 5 passive (upper and lateral) Inner cylinder: 2
Raw material	Brass
Finish	Satin nickel
Outer fixed cylinder dimensions	Rod length: 48 mm Outer body diameter: 25 mm Total body lenght: 30 mm
Inner round cylinder dimensions	Body diameter: 25 mm Body lenght: 12 mm Total lenght: 16,6 mm
